Super Free Match
Service Manual
CONTROL
57
Note: The smart zone controller can connect with maximum up to 16 indoor units.

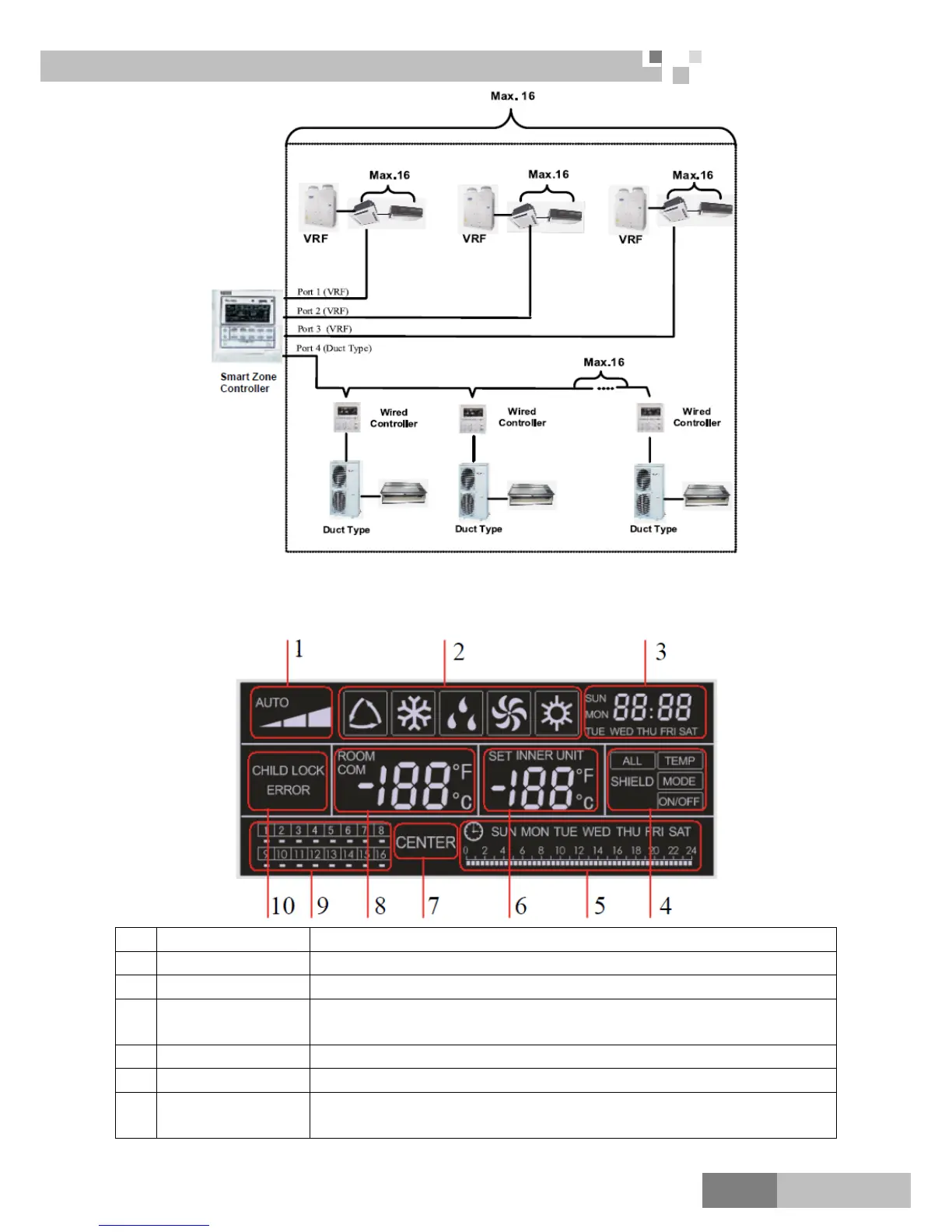

4.3 LCD
No. Name Description
1 Fan speed It displays the fan speed of the indoor unit, high, medium, low and auto.
2 Running mode It displays the running mode of the indoor unit, auto, cool, dry, fan and heat.
3 System clock
It displays the current time (hour and minute) in 24-hour time system and also
the week day.
4 Shield It displays the shielded status, “ALL”, “TEMP”, “MODE” and “ON/OFF”.
5 Weekly timer It displays the timing period (unit: 0.5 hour) which will circulate every week.
6
Set temperature/
Indoor unit code
It displays the set temperature, indoor unit code (01-16), and symbols of Celsius
and Fahrenheit scale.
