3 REMOTE CONTROLLER
3.1 Wired Remote Controller
3.1.1 Wired Controller XK19
It is designed for the cassette type, duct type and floor ceiling type indoor units.

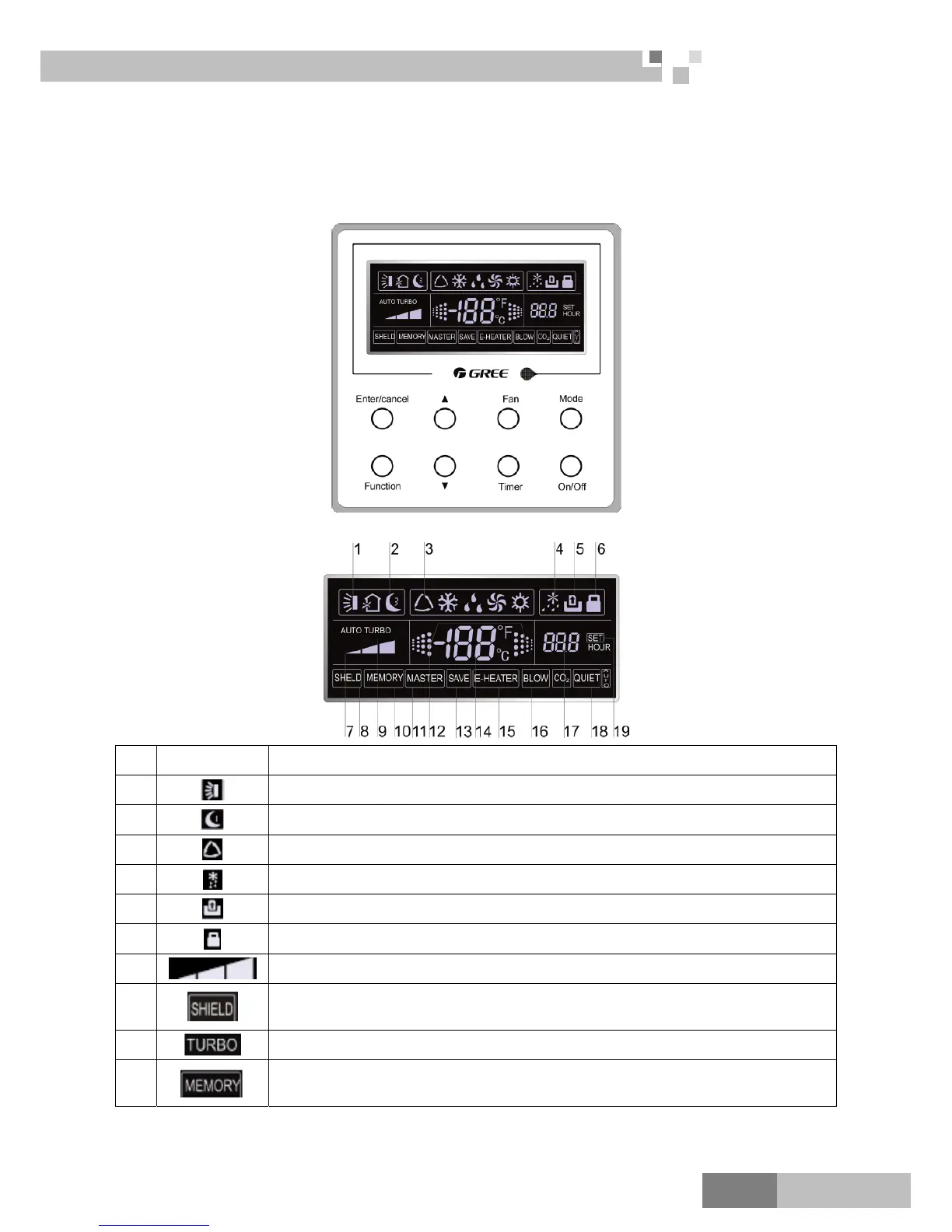

◆ Outside View of the Wired Controller
◆ LCD of the Wired Controller
No. Symbols Description
1
Swing function.
2
Sleep function
3
Running modes of the indoor unit (Cooling, Dry, Fan, Heating and Auto).
4
Defrosting function for the outdoor unit.
5
Gate-control function.(this function is yet unavailable for this unit)
6
Lock function.
7
High, middle, low or auto fan speed of the indoor unit.
8
Shield functions (buttons, temperature, On/Off, Mode or Save is shielded or Save is
shielded by the remote monitor)
9
Turbo function.
10
Memory function (The indoor unit resumes the original setting state after power failure and
then power recovery).
