INSTALLATION85
4) Check the smoothness of drain after installation.

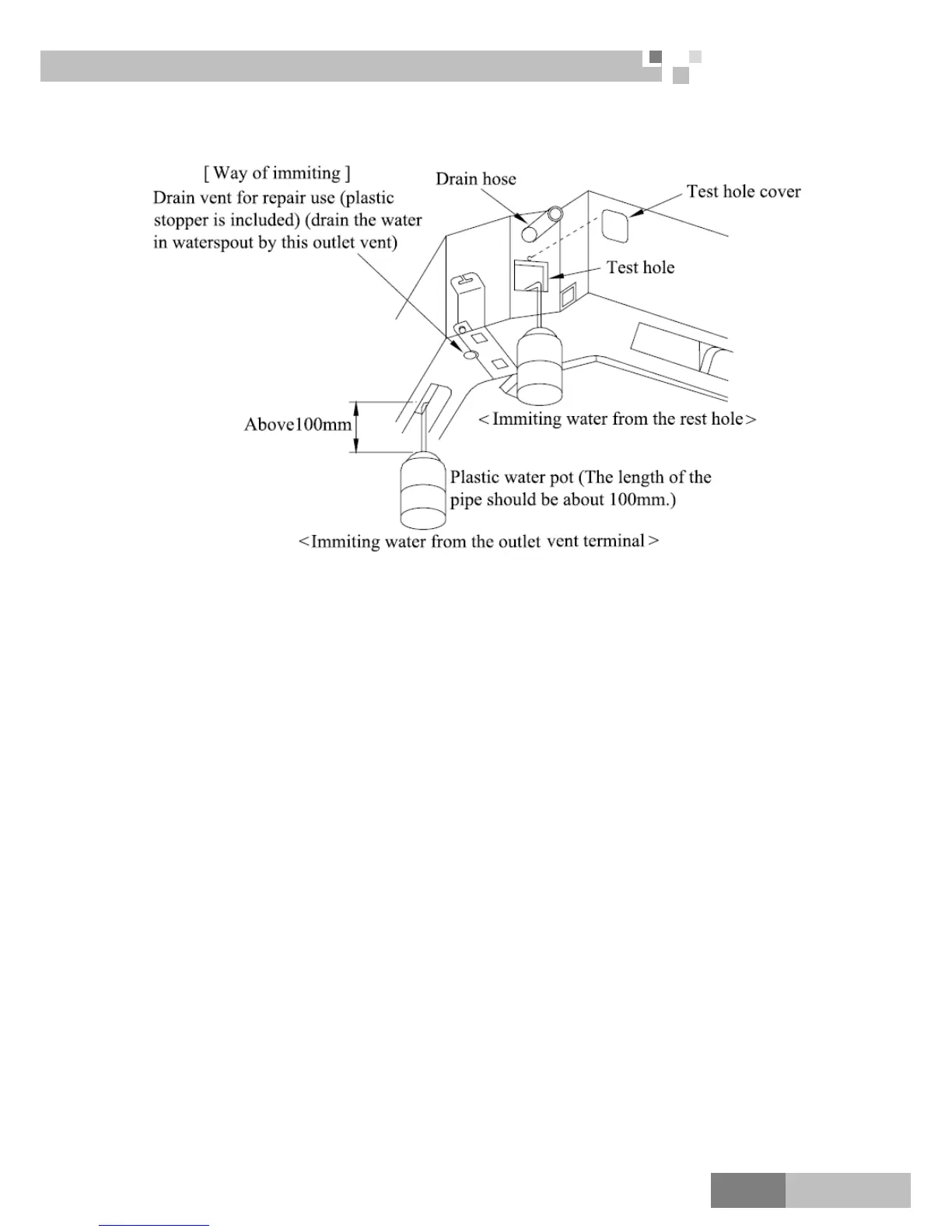

Check the drain state by immitting 600cc water slowly from the outlet vent or test hole.
Check the drain in the state of refrigerating after installation of the electric circuit.
4.4 Installation of Floor Ceiling Type
4.4.1 Important Notices
The installation of air conditioner unit must be in accordance with national and local safety codes.
Installation quality will directly affect the normal use of air conditioner unit. The user is prohibited from
installation by himself. Please contact your dealer after buying this machine. Professional installation
workers will provide installation and test services according to installation manual.
Do not connect to power until all installation work is completed.
4.4.2 Selection of Installation Location
Such a place where cool air can be distributed throughout the room.
Such a place where is condensation water is easily drained out.
Such a place that can handle the weight of indoor unit.
Such a place, which has easy access for maintenance.
Such a place where is permitting easy connection with the outdoor unit.
Such a place where is 1m or more away from other electric appliances such as television, audio, etc.
Avoid a location where there is heat source, high humidity or inflammable gas.
Do not use the unit in the immediate surroundings of a laundry, a bath, a shower or a swimming pool.
Be sure that the installation conforms to the installation dimension diagram.
4.4.3 Caution for installation where air conditioner trouble is likely to occur
Where there is too much of oil.
Where it is acid base area.
Where there is irregular electrical supply.
4.4.4 Outline Dimension Drawings of the Indoor Unit
When installing the indoor unit, you can refer the paper pattern for installation, and make sure that the
drainage side must be 10mm lower than the other side in order to drain the condensation water fluently.
