Gree GMV5 Series Service Manual

GMV5 D.C INVERTER MULTI VRF SERVICE MANUAL
258

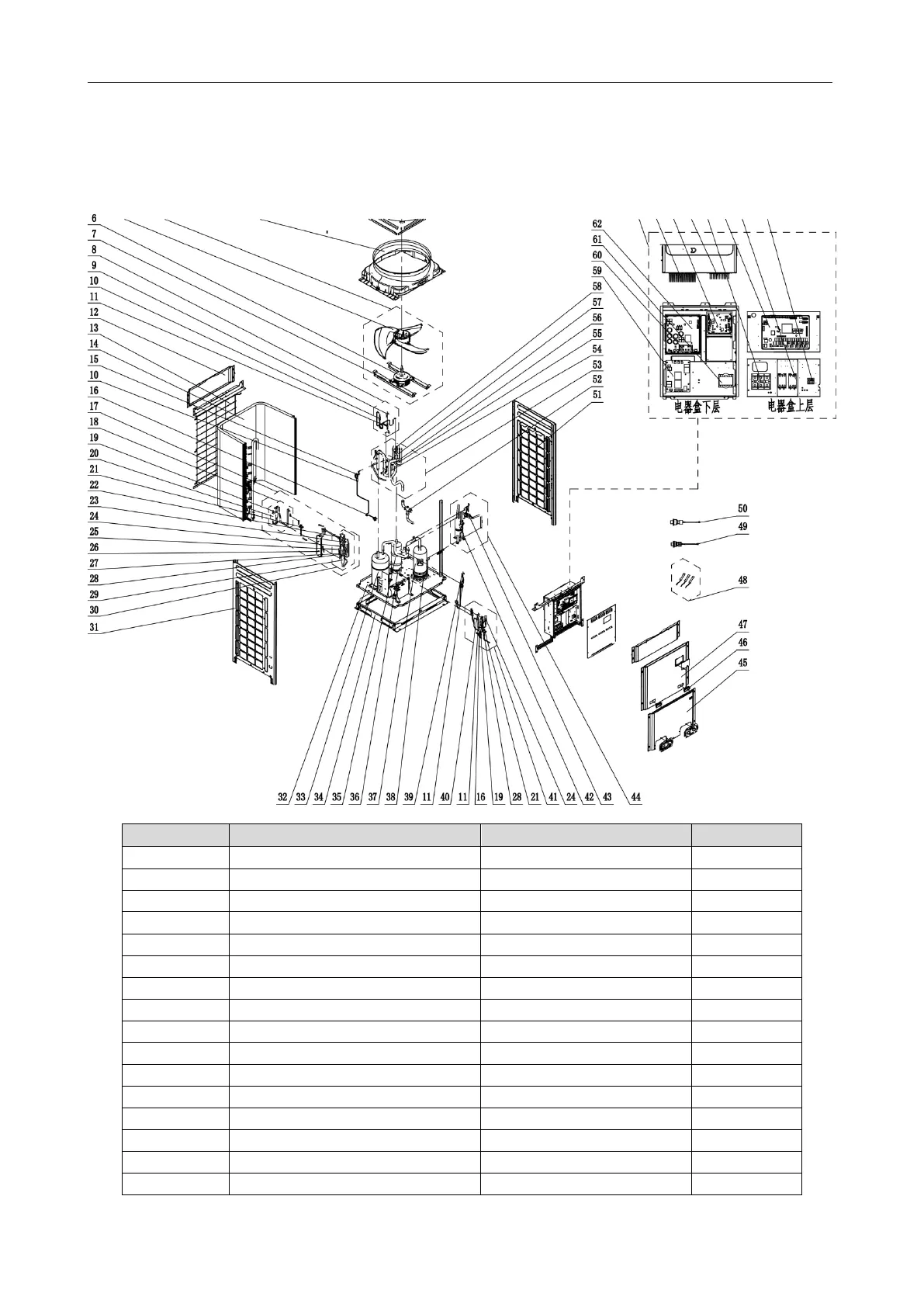

4.5 EXPLODED VIEWS AND SPARE PART LIST
Modle GMV-72WM/B-F(U)
Product Code CN851W1380, CN851W1381
No.
Name of part
Part code
Quantity
1
Rear Grill
01574105
1
2
Top Cover
01264100030P
1
3
Diversion Circle
10474100
1
4
Fan motor Sub-Assy
15404100057
1
5
Axial Flow Fan Sub-Assy
10338702
1
6
Fan Motor
15704119
1
7
Motor Support Sub-Assy
01804771P
2
8
Gas By-pass Sub-Assy
04224100129
1
9
Magnet Coil
4304410018902
1
10
Filter A
07415200002
1
11
Electromagnetic Valve
43000054
1
12
Top Cover
01264231P
2
13
Rear Grill
01576013
1
14
Condenser Assy
0112431001
1
15
Low Pressure Survey Valve Sub-Assy
07334100026
1
16
Cut-off Valve 1/4
07130239
1
