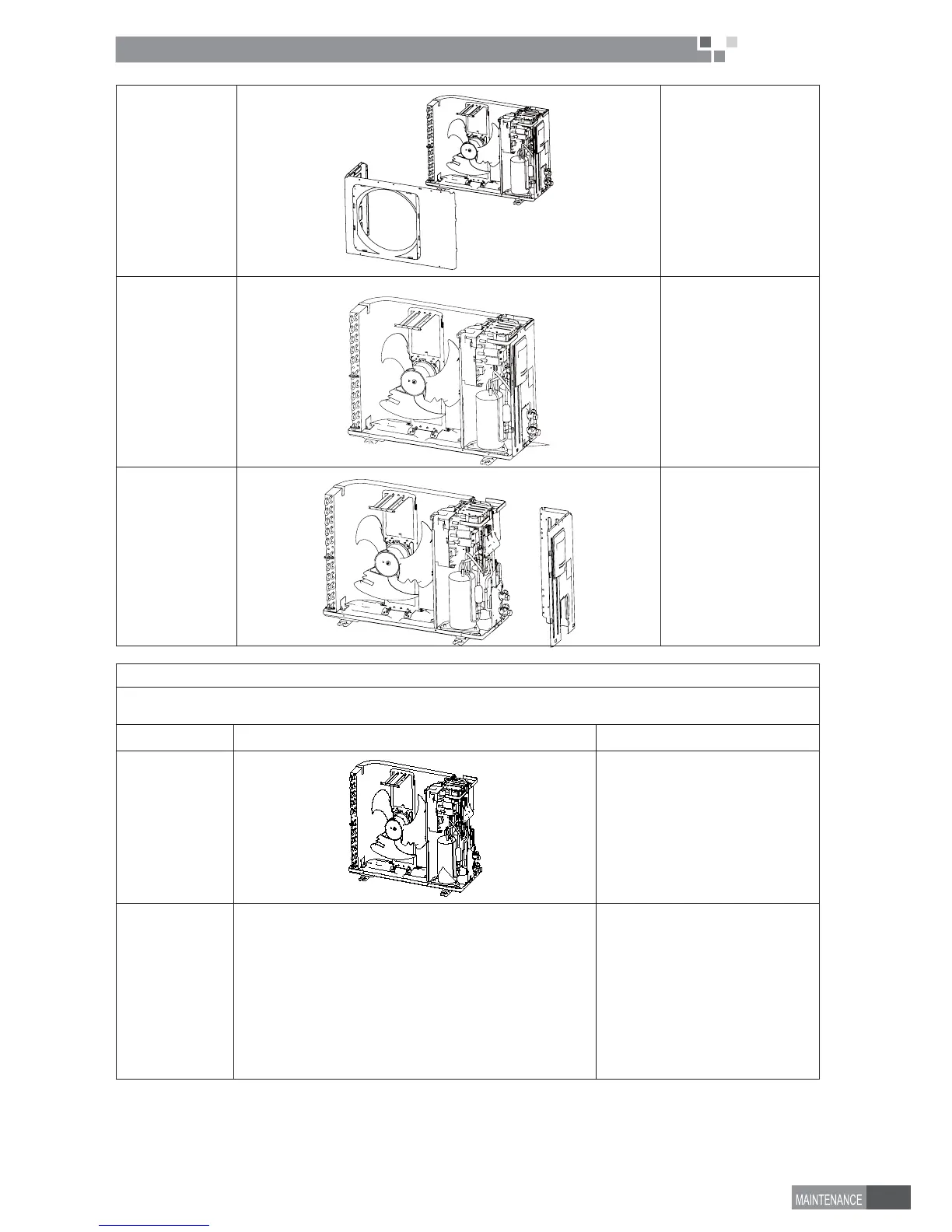

6. Remove the
back panel.
Remove the back panel
away from the unit .
7.Disassemble
the right side
panel.
Loosen the screws on
the side panel with a
screw drive.
8. Remove the
right side panel.
Remove the right side
panel away from the
unit.
Removal and Installation of Gas-liquid Separator and Compressor
Remark: Before removing the compressor, make sure that there is no refrigerant inside the pipe system and that the
power has been cut off.
Step Illustration
Handling Instruction
1. Disconnect
the wiring of the
power supply of
the compressor
a. Open the cover of the power
supply box with a wrench.
b. Disconnect the power cord of the
compressor with the pliers.
c. Pull out the power supply plug of
the compressor.
2. Loosen the
screws on the
compressor
Loosen the screws between the
compressor and the compressor
base with a wrench.
To Next Page
