3
QSPEVDU
U-Match Series DC
Inverter Service Manual

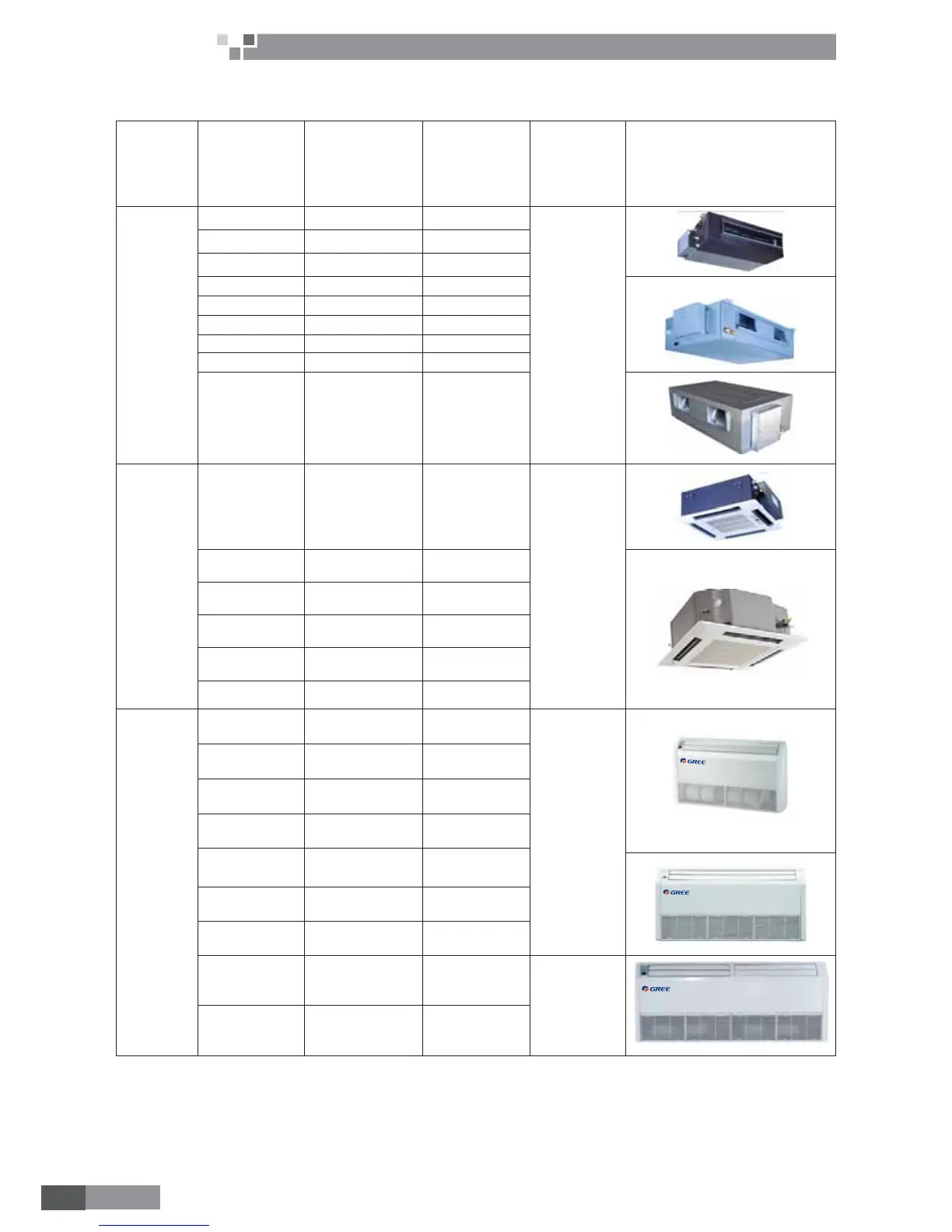

1.2 Indoor Unit
Type Model Name Product Code
Nominal
Capacity
Cooling/
Heating
(Btu/h)
Power
Supply
(V, Ph, Hz)
Appearance
Duct
Type
GFH09K3CI CF060N0220 9212/10000
220-240V
50Hz
GFH12K3CI CF060N0231 12000/13000
GFH18K3CI CF060N0240 18000/21000
GFH24K3CI CF060N0250 24000/25500
GFH30K3CI CF060N0260 28000/30000
GFH36K3CI CF060N0270 34120/39238
GFH42K3CI CF060N0290 37530/42650
GFH48K3CI CF060N0280 48000/56300
GFH60K3CI CF060N0300 58000/61400
Cassette
Type
GKH12K3CI ET010N0170 11600/12600
220-240V
50Hz
GKH18K3CI ET010N0180 18000/21000
GKH24K3CI ET010N0190 24000/27000
GKH30K3CI ET010N0200 30000/32400
GKH36K3CI ET010N0210 34120/37530
GKH42K3CI ET010N0230 37530/42300
Ceiling
Type
GTH09K3CI ED020N0171 10236/10236
220-240V
50Hz
GTH12K3CI ED020N0181 11600/13000
GTH18K3CI ED020N0191 18000/21000
GTH24K3CI ED020N0200 24000/27000
GTH30K3CI ED020N0210 30000/32400
GTH36K3CI ED020N0220 35826/39238
GTH42K3CI ED020N0310 39238/42650
GTH48K3CI ED020N0230 48000/56000
220-240V
50Hz
GTH60K3CI ED020N0440 54500/59700
Note:1 Ton =12000Btu/h = 3.517kW
NOTES:
The universal outdoor units means that the customer can choose any of three kind of indoor unit to match the outdoor
unit without any change with it.
