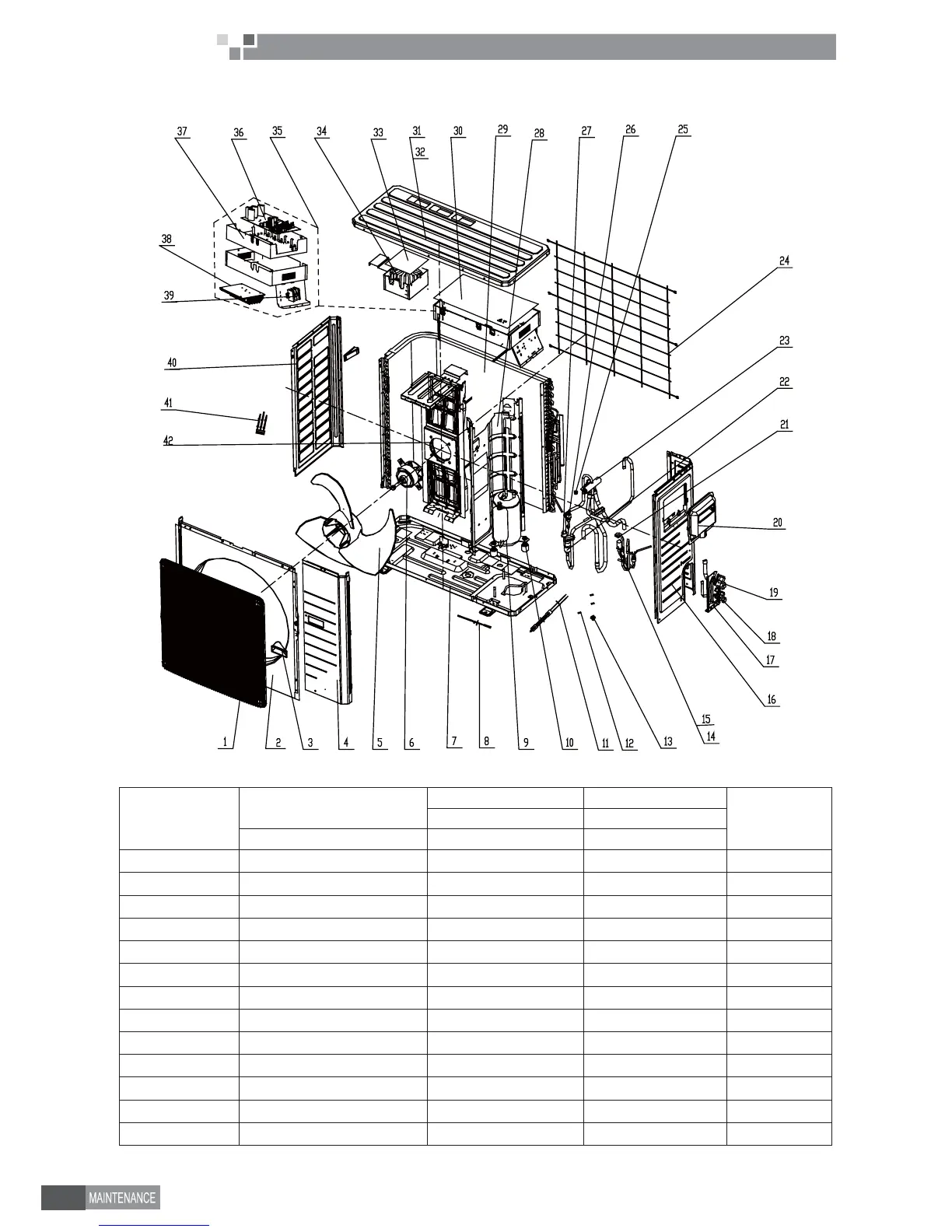

Model: GUHD24NK3C1O\GUHD30NK3C1O Exploded View and spare parts list
NO.
Description
GUHD24NK3C1O GUHD30NK3C1O
QtyCF090W0510 CF090W0520
Name of Part Part Code Part Code
1 Front Grill '22415003 '22415003 1
2 Cabinet '01435004P '01435004P 1
3 Left Handle '26235401 '26235401 2
4 Front Side Plate 01305086P 01305086P 1
5 Axial Flow Fan 10335005 10335005 1
6 Fan Motor '15702802 '1570280202 1
7 Chassis Sub-assy 01195314P 01195314P 1
8 Electrical Heater '765100047 '765100047 1
9 Compressor and Fittings
'00105036 '00105036 1
10 Rubber Grommet '76710207 '76710207 3
11 Electrical heater '76518732 '76518732 1
12 Drainage Plug '06813401 '06813401 3
13 Drainage Connecter '06123401 '06123401 1
