Gree GUHD series User Manual

80DWFK6HULHV'&
,QYHUWHU6HUYLFH0DQXDO
72

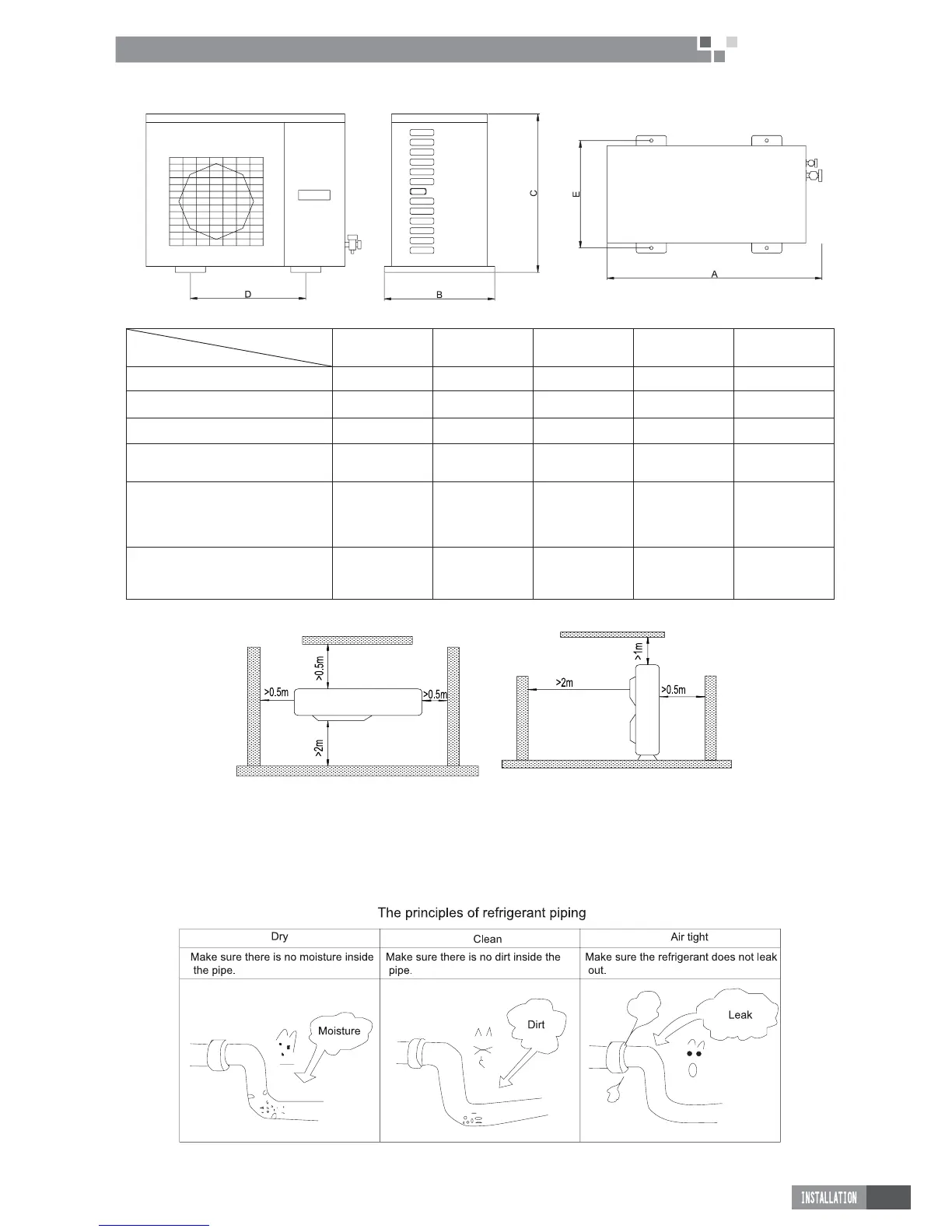

2.4 Dimension Data
Figure 1-3-17 Unit:mm
Item
model
ABCDE
GUHD09NK3CO/GUHD12NK3CO 776 320 540 510 286
GUHD09NK3C1O/GUHD12NK3C1O 848 320 540 540 286
GUHD18NK3CO/GUHD18NK3C1O 955 396 700 560 360
GUHD24NK3CO/GUHD24NK3C1O
GUHD30NK3CO/GUHD30NK3C1O
980 427 790 610 395
GUHD36NK3CO/GUHD36NK3C1O
GUHD36NM3CO/GUHD36NM3C1O
GUHD42NK3CO/GUHD42NK3C1O
GUHD42NM3CO/GUHD42NM3C1O
1107 440 1100 631 400
GUHD48NK3CO/GUHD48NK3C1O
GUHD48NM3CO/GUHD48NM3C1O
GUHD60NM3CO/GUHD60NM3C1O
1085 427 1365 620 395
2.5 Installation Clearance Data
Figure 1-3-18
3 REFRIGERATION PIPING WORK
3.1 Refrigeration Piping Work Procedures
a. Connection Pipe
Ɣ
The connection pipe must meet the following requirements. The three basic principles are that the pipe
shall be kept dry, clean and no leakage.
Figure 3-1-1
