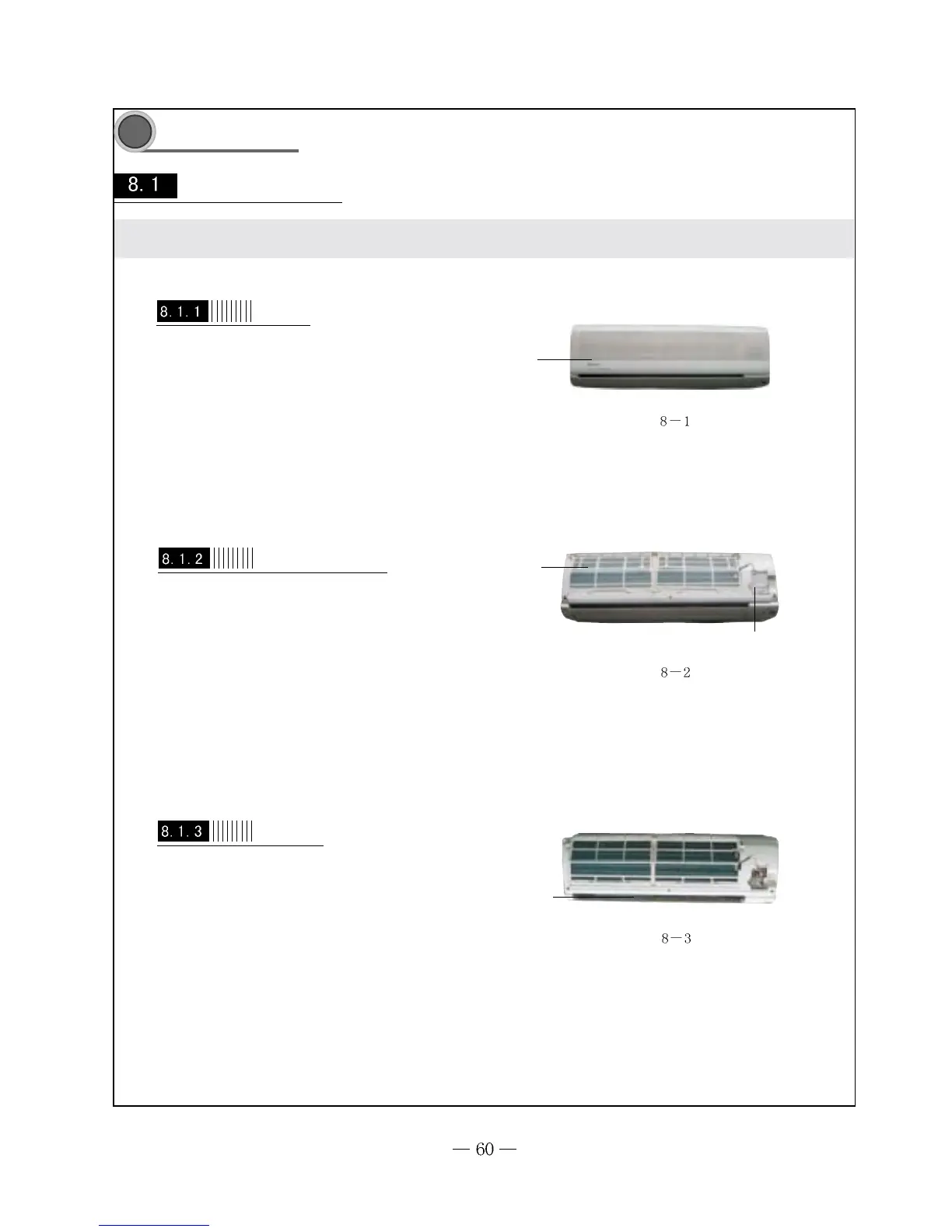

Dissassembly Procedures
Disassembly procedures for indoor unit
Operation procedures/pictures
Remove the front panel
Front panel
Fig.
Fig.
Filter
Wire-pressed clamp
Fig.
Guide louver
Push the bulge of panel left and right sides with fingers,
Raise up the panel, along the groove of front case to
take out of the panel forcibly.(As shown in Fig.8-1)
Disassemble filter and wire-pressed clamp
Butt the middle part of filter, take off two clasps of both sides,
pull them frontward, and disassemble the filter.
To screw off 1pc bolt from wire-pressed clamp with screwdriver
then could disassemble the wire-pressed clamp.(As shown in Fig.
8-2)
Disassemble guide louver
Take off the middle part of guide louver from
the holders, then bend the guide louver slightly,
could disassemble it.(As shown in Fig.8-3)
