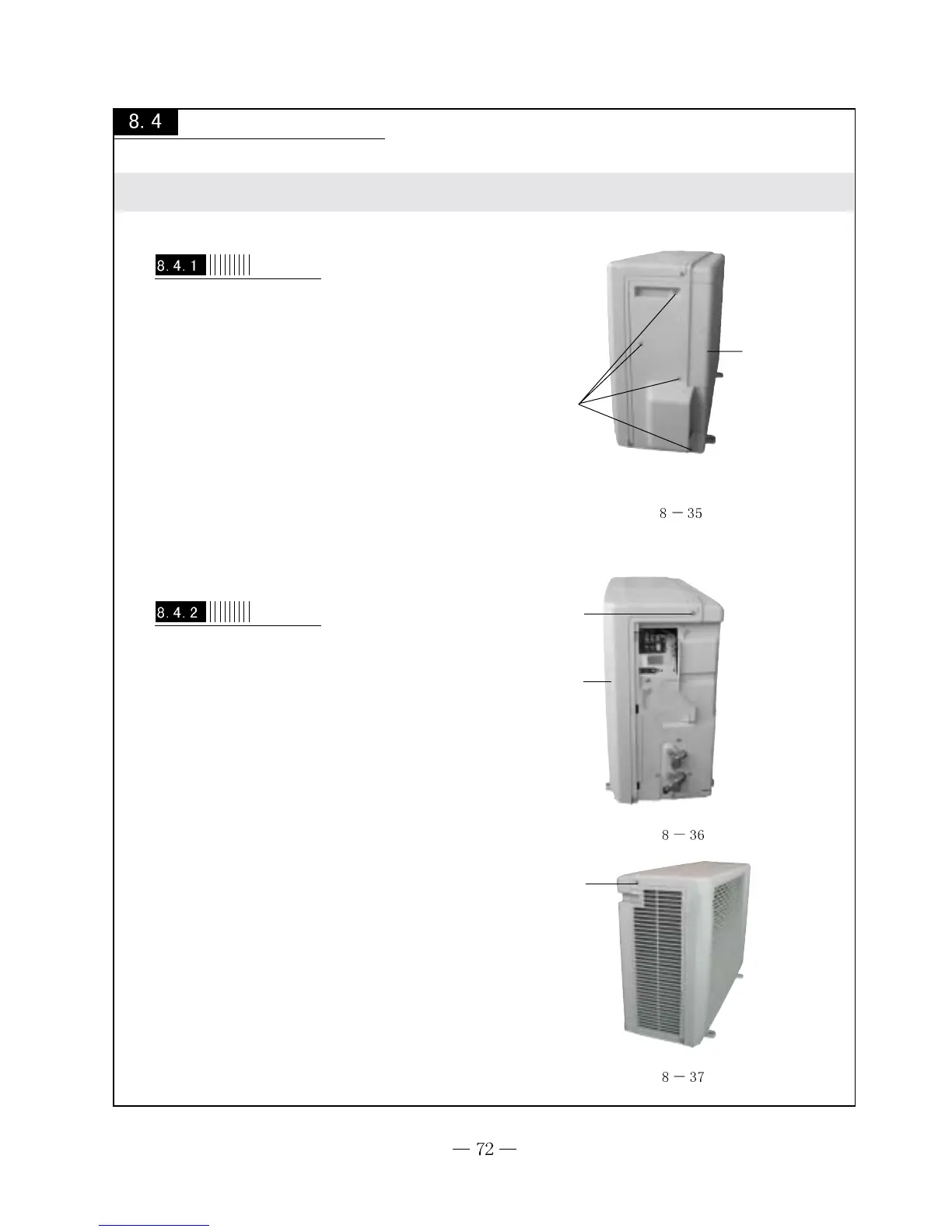

Disassembly procedures for the plastic case outdoor unit
Operation procedures/pictures
Disassemble the right handle
To screw off 4pcs screw from the right handle,
then press the clasp of the right side at full tilt,
can disassemble the right handle.(As shown in
Fig.8-35)
Fig.
Screw
Clasp
Fig.
Screw
Front grill
Disassemble the front grill
To screw off 1pc screw from the right side
of the front grill by using the screwdriver.
(As shown in Fig.8-36)
Then screw off 1pc screw from the left side.(As shown in Fig.8-37)
Fig.
Screw
