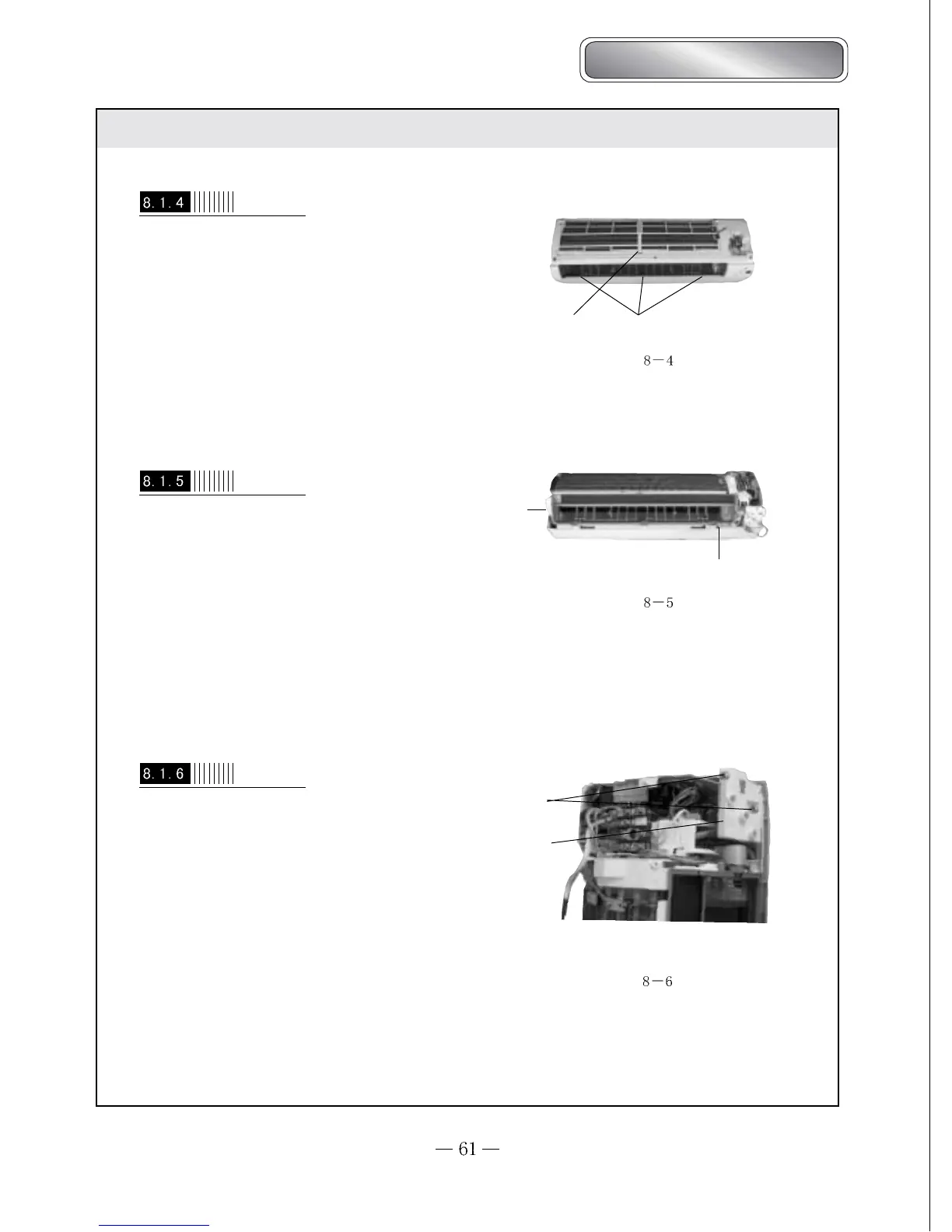

Operation procedures/pictures
Take out 3pcs tapping screw from front case with
screwdriver, press the clasps of the front case middle
part, then turn over the front case, could disassemble
the front case. (As shown in Fig.8-4)
Fig.
Clasp
Screw
Disassemble the front case
Disassemble water-tray
Clasp
Clasp
Fig.
Fig.
I ndicator light
Screw
Disassemble the water-tray assy
Firstly disassemble the electric box cover, take off
the terminal of swing motor, use screwdriver to op-
en the clasp in the rear right of water tray, then rotate
it, to let it depart from the left clasp,then disassemble
the water tray.(As shown in Fig.8-5)
F irstly screw off 2pcs screw from indicator
light board, to disassemble the indicator
light board. Then take off the terminal of
the motor, to screw off the earth screw and
board
2pcs screw of electric box, finally to open
one clasp of the electric box, can take out
the electric box.(As shown in Fig.8-6,8-7)
