Operation procedures/pictures
Fig.
Fig.
Fig.

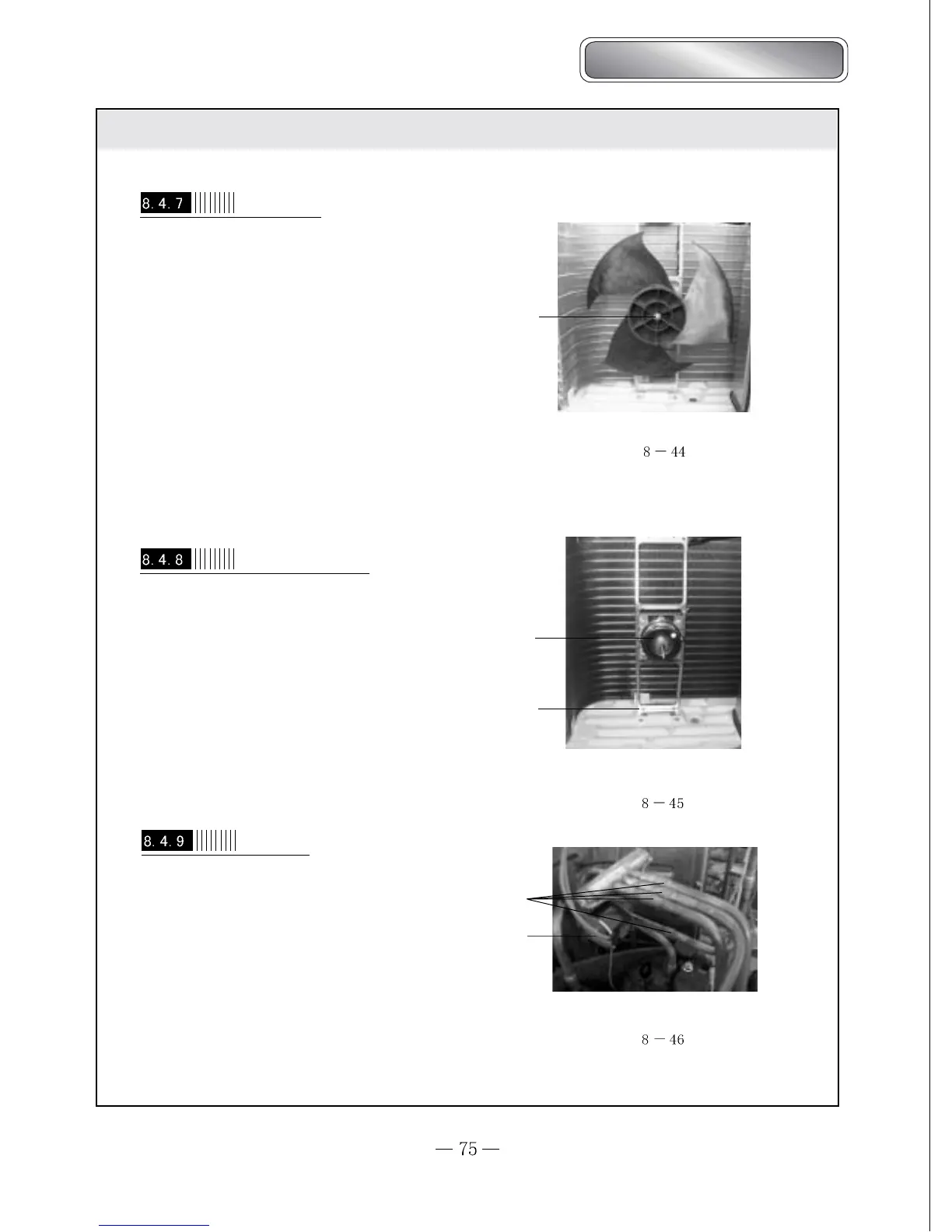

Disassemble the axial flow fan
Disassemble the motor and motor support
Disassemble the 4-way valve
Left nut
Motor
Motor support
S older joint
Loop nut
Using the spanner to screw off 1pc left nut from
the axial flow fan, and pull it outward at full tilt,
could take down the axial flow fan.(As shown in
Fig.8-44)
Using the screwdriver to screw off 4pcs screw
from the motor, then take off the connection
wire which connect with the motor and electric
box, can take down the motor.
Screw off the screw under the motor support,
can disassemble the motor support.
(As shown in Fig.8-45)
(Only for cooling and heating type unit)
To unsolder 4pcs solder joint of the 4-way valve,
then to screw off the loop nut from 4-way valve,
can disassemble the 4-way valve.(As shown in
Fig.8-46)
Bird Single-Split Type
