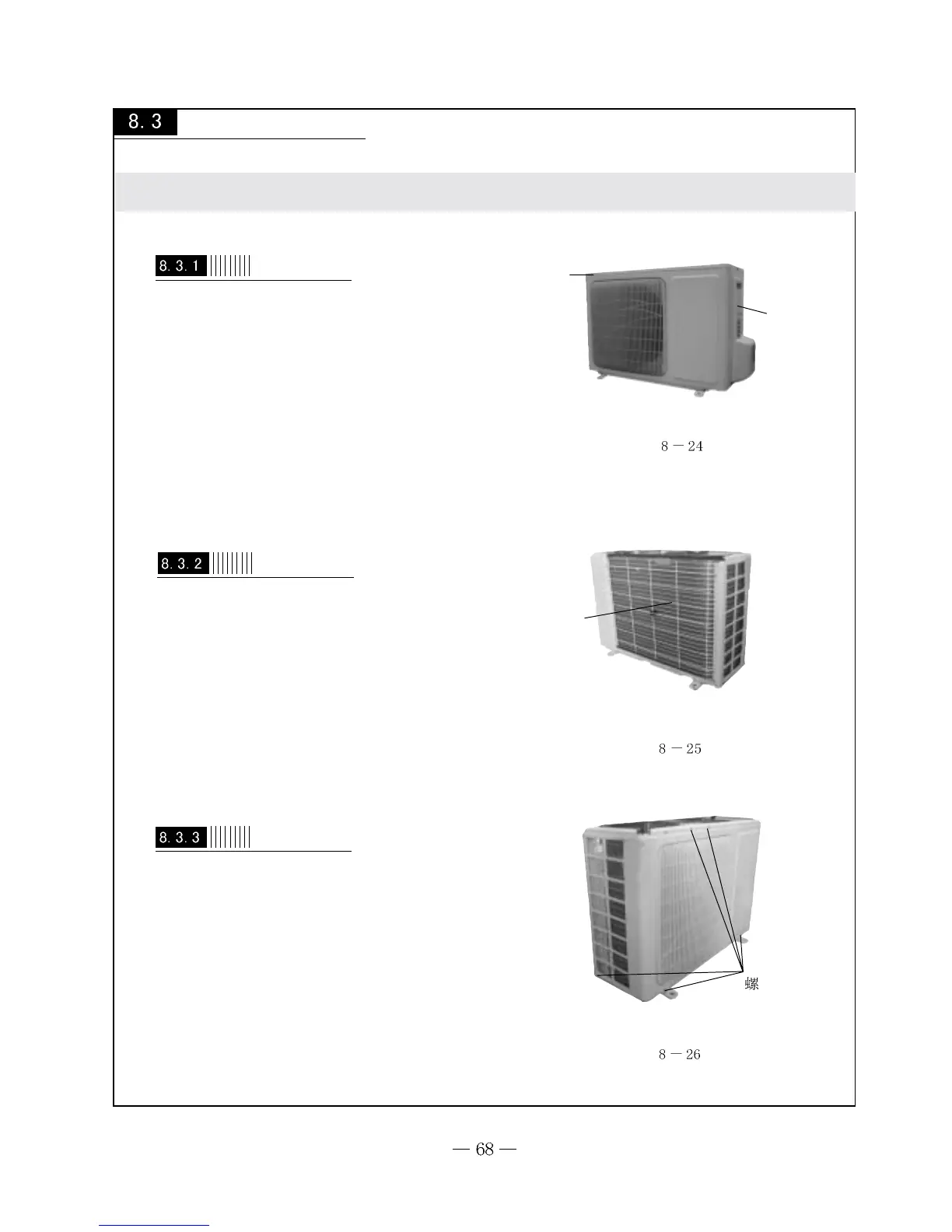

Disassembly procedures for the big outdoor unit
Operation procedures/pictures
Top cover
Handle
Fig.
Rear grill
Fig.
Fig.
Screw
Disassemble the top cover and handle
Disassemble the rear grill
Disassemble front grill
Using the screwdriver to screw off 1screw from
the handle, then can disassemble the handle. Screw off
3pcs screw around the top cover, could disassemble
the top cover.(As shown in Fig.8-24)
Using the screwdriver to screw off 4pcs screw around
the rear grill, could disassemble the rear grill.
(As shown in Fig.8-25)
To screw off 6pcs screw from the front grill with
screwdriver, could disassemble the front grill.
(As shown in Fig.8-26)
