13
ENGLISH
OVERVIEW
--------------------------------------------------------------------------------------------------------------

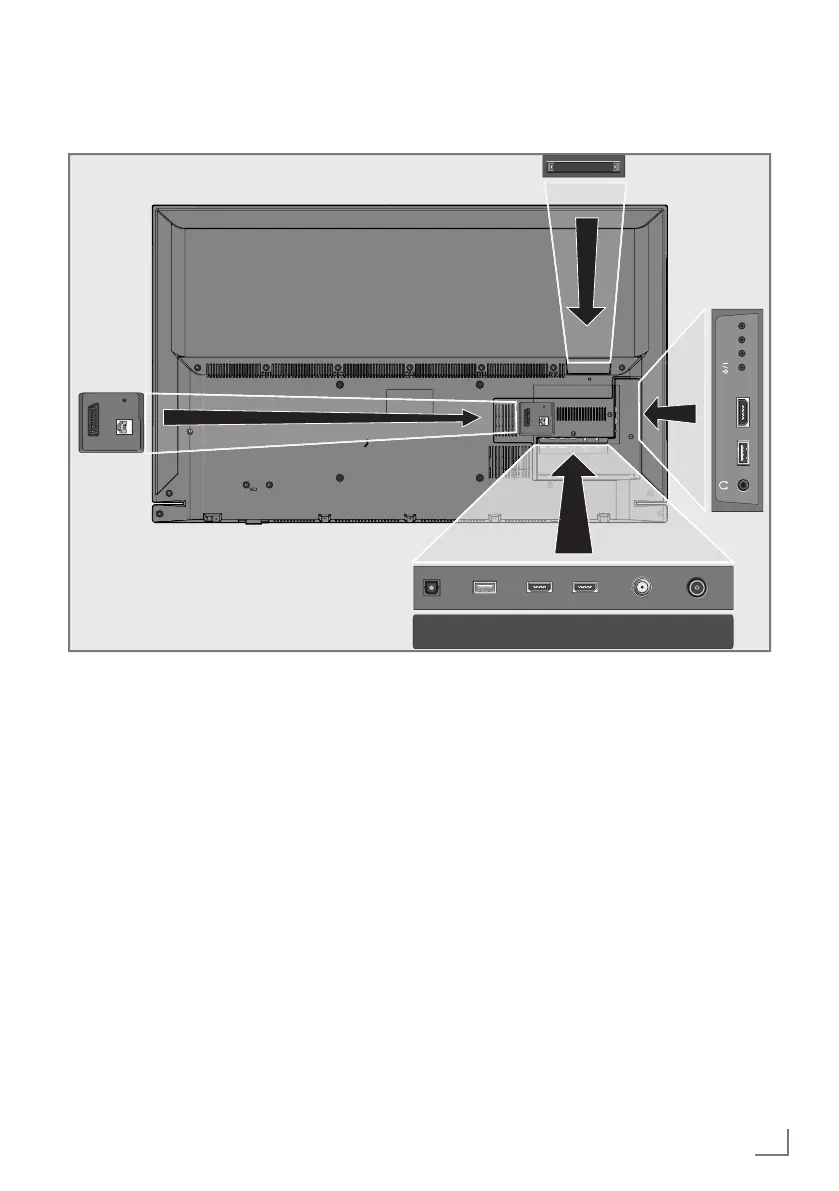

Connections on the television set
AV / S-VHS/COMPONENT
SERVICE
LAN
AV / S-VHS/COMPONENT
SERVICE
LAN
ANT-IN
5V
max.50mA
Optic Out SATELLITE
13/18V
max.500mA
HDMI2HDMI3(ARC)USB(HDD)
USB1 HDMI1 +V/P-
LAN Network cable connection
socket.
AV / S-VHS / COMPONENT
Euro/AV socket (CVBS
signal, RGB signal);
video signal input for
S-Video camera (with Scart-
S-VHS converter);
Video signal input (YUV sig-
nal with Scart-YUV converter).
SERVICE Service only.
Optic Out Audio output sockets (opti-
cal) for PCM/Dolby Digital
signals.
It is for digital multichannel
audio/video amplifier or
AV receiver connections.
USB(HDD) USB Harddisk socket for
external data medium and
PVR function;
connection for wireless
keyboard, mouse.
HDMI3 (ARC) HDMI socket, audio/video
signal input (HDMI).
HDMI2 HDMI socket, audio/video
signal input (HDMI).
SATELLITE Satellite antenna socket.
ANT-IN Antenna socket.
U Headphone connection
(3.5 mm jack);
external audio output (with
headphone-RCA con-
verter).
USB1 USB Harddisk socket for
external data medium and
PVR function;
connection for wireless
keyboard, mouse.
HDMI1 HDMI socket, audio/video
signal input (HDMI).
CI Common interface slot.
