Remote Control Programming & Operation
12
ENGLISH
This product is equipped with a powerful
remote control. As supplied, it will operate
the receiver, as well as most CD players
and tape decks manufactured by Harman
Kardon. In addition, it is preprogrammed
with the remote codes to operate VCRs, LD
players and TV sets that are based on the
popular RC-5 control code system. If your
equipment requires different codes, it
may be programmed to copy the codes
from most infra red remotes.
Loading Batteries
The life ofthe batteriesforthe remote
control is aboutone yearinnormal
operation. If thegreenSending x
indicator does notflash whenremote
buttons are pushed,that isanindication
that the batteriesneed tobereplaced.
Don’t simply through old batteries away
but recycle only or return them to your
dealer.

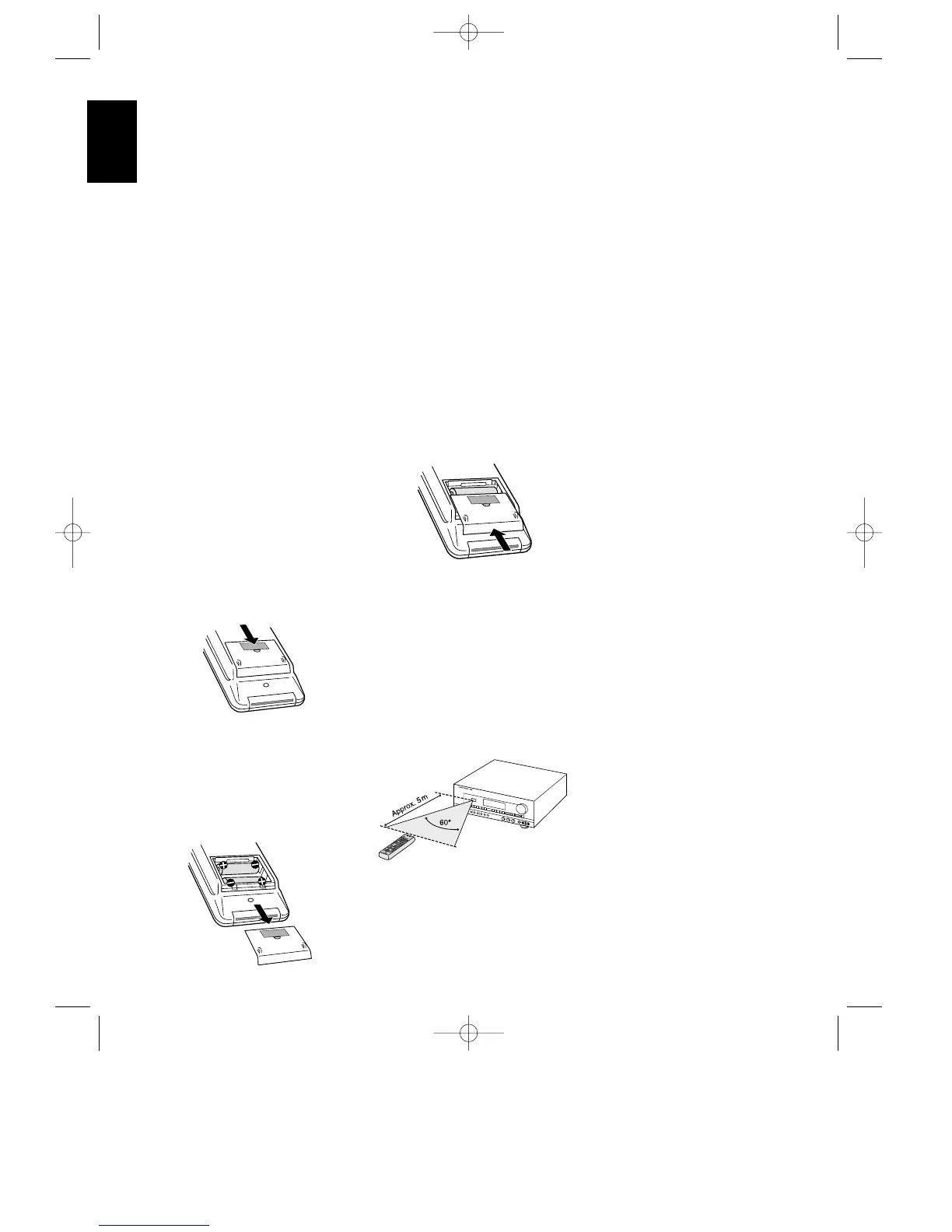

To change the batteries:
1. Remove the back cover by sliding it in
the direction of the arrows.
2. Remove the old batteries and insert
fresh AAA type cells. Be certain to observe
the correct polarity by noting the (+) and
(–) marks on both the inside of the case
and on the battery cells. It is
recommended that both batteries be
changed at the same time.
3. Close the cover until it clicks shut.
NOTE: It is important that the batteries
be replaced within ten minutes after the
old batteries are removed to avoid losing
any remote codes that have been
programmed into the remote’s memory.
Remote Control Range
The remote will operate at a range of up
to 5 meters from the unit, when the
batteries are fully charged. The remote
will also operate at an angle of up to 30°
to either side of the unit.
Always point the remote transmitter at the
front of the unit when issuing
commands. If you find that remote
commands are not being received by the
remote, it may be necessary to use a
remote IR sensor.
Remote Programming
Programmable Keys
Many of the buttons on the remote
control may be user programmed to new
functions that operate virtually any
component in your system. Ten CANNOT
be programmed with a new code, as they
control high level functions. These keys
are Main Power ON, Main Power
OFF, and the eight source input keys:
TV, LD, VCR 1, VCR2, TUNER, CD,
TAPE 1 and TAPE2.
Programmable keys are divided into two
groups. Some keys may be programmed
with a separate function for each of the
inputs. Thus, these keys may change their
code when the input source is changed.
(i.e. The Play key may transmit a
different code when CD is selected as
opposed to when VCR is selected.) The
keys that may be programmed with
multiple codes are the following:
All Numeric Keys (0 – 9)
Forward Play
fl
Source Power On
Reverse Play
fi
Source Power Off
Stop
Í
Disc/Deck ∏
Record Î
Disc/Deck Â
Pause ±
Channel/Skip ·
TV Volume Up ⁄
Channel/Skip ‡
TV Volume Down ¤
Tune/Search —
Memo
Tune/Search
‚
P-Scan
AVR70 engelsk manual 11/01/98 11:57 Side 12
