User Manual of Network Fisheye Camera
78
8.2 Configuring OSD Settings
Purpose:
OSD (On-screen Display) refers to the camera name, time/date format, display mode,
and OSD size displayed on the live view.
Steps:
1. Enter the OSD Settings interface: Configuration > Image > OSD Settings

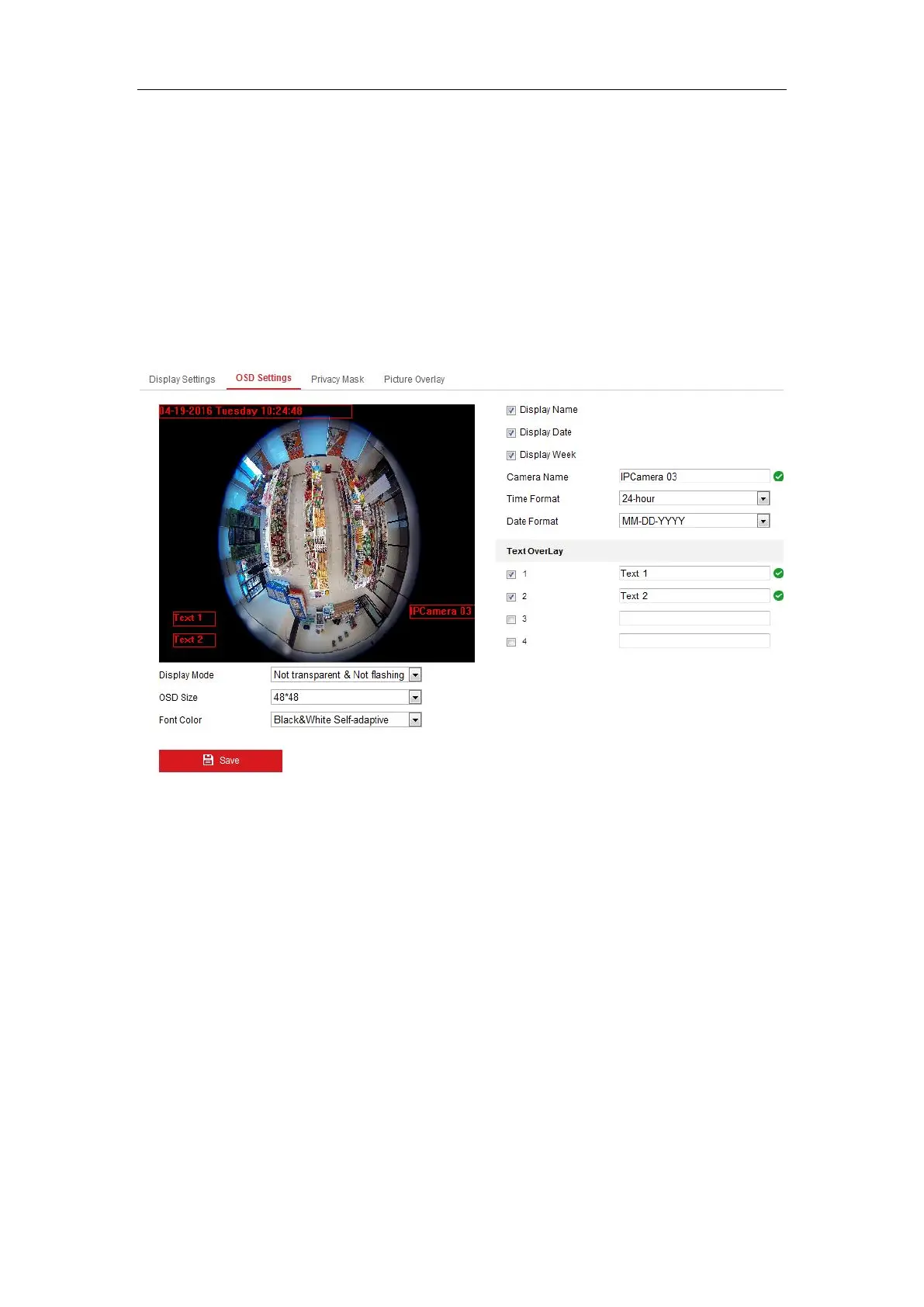

Figure 8-3 OSD Settings
2. Select a camera channel to configure.
3. Check the corresponding checkbox to select the display of camera name, date or
week if required.
4. Edit the camera name in the text field of Camera Name.
5. Select from the drop-down list to set the time format, date format, display mode
and the OSD font size.
6. Set overlaid text if needed.
1) Check the checkbox on the left to enable the on-screen display.
2) Input the desired information in the textbox.
Notes:
