HIKVISION DS-2DE2A204IW-DE3 User Manual

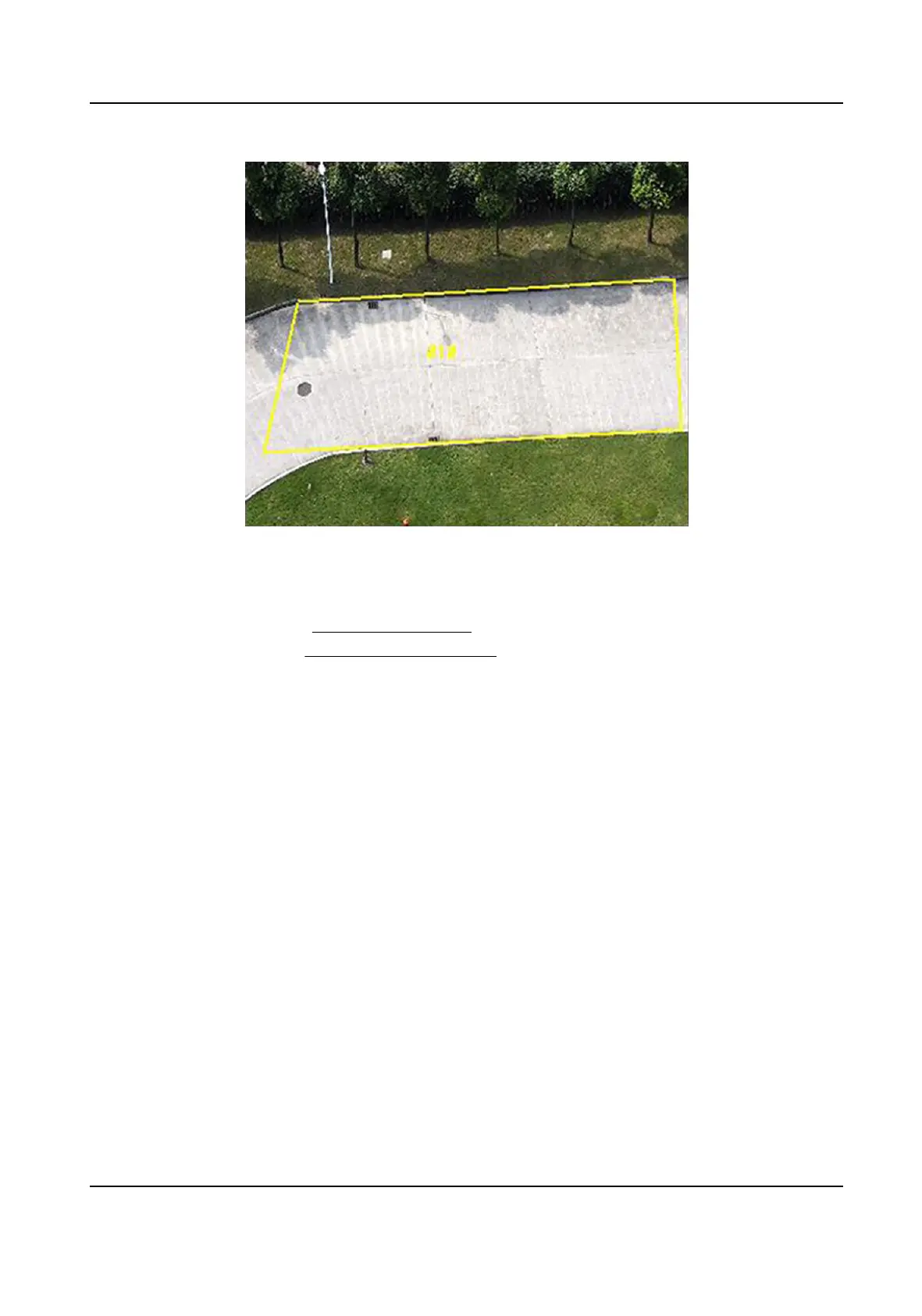

Figure 7-4 Draw Area
8.
Click Save.
9.
Repeat above steps to set other
detecon areas.
10.
Set arming schedule. See Set Arming Schedule .
11.
Set linkage method. See
Linkage Method Sengs .
7.2.4 Set Line Crossing
Detecon
Line crossing detecon is used to detect the object movement of crossing a predened line. When
it occurs, the device takes linkage
acons as response.
Steps
1.
Go to Conguraon → Event → Smart Event → Line Crossing Detecon .
2.
Check Enable.
3.
Oponal: Click Lock to lock PTZ control to prevent the interrupon from other PTZ related acon
during conguraon.
Normally, the PTZ control is automacally locked when you enter the conguraon interface.
You can manually resume the lock when the countdown is over.
4.
Adjust the live image to the desired scene by using PTZ control
buons.
5.
Draw detecon line.
1) Select a Line No.. Up to 4 lines can be set in the scene.
2) Click
Detecon Area.
A yellow line is displayed on live image.
3) Click on the line, and drag its end points to adjust the length and
posion.
4) Select the Direcon for the detecon line.
Network Speed Dome User Manual
51

HIKVISION DS-2DE2A204IW-DE3 Specifications

General

Sensor type	CMOS
Progressive scan	Yes
Number of sensors	1
Optical sensor size	1/3 \
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Pan range	0 - 330 °
Pan speed	100 °/sec
White balance	ATW, Auto, Manual
Tilt angle range	0 - 90 °
Camera shutter speed	1/1 - 1/30000 s
Minimum illumination	0.005 lx
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Focus	Motorized/Manual
Digital zoom	16 x
Optical zoom	4 x
Focal length range	- mm
Maximum aperture number	2.7
Minimum aperture number	1.6
Detection distance	0.01 m
Audio input channels	1 channels
Wi-Fi	-
Number of users	20 user(s)
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.1x
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, SDXC
DC output voltage	12
Power source type	DC
Power consumption (typical)	12 W
Operating temperature (T-T)	-20 - 60 °C
IK code	IK10
Form factor	Dome
Product color	Black, White
Housing material	Acrylonitrile butadiene styrene (ABS), Aluminium, Polycarbonate (PC)
International Protection (IP) code	IP66

Weight and Dimensions

Width	130.7 mm
Height	101.7 mm
Weight (with stand)	530 g
