You can also check the Sync. with computer time checkbox to synchronize the time of the camera
with the time of your computer.

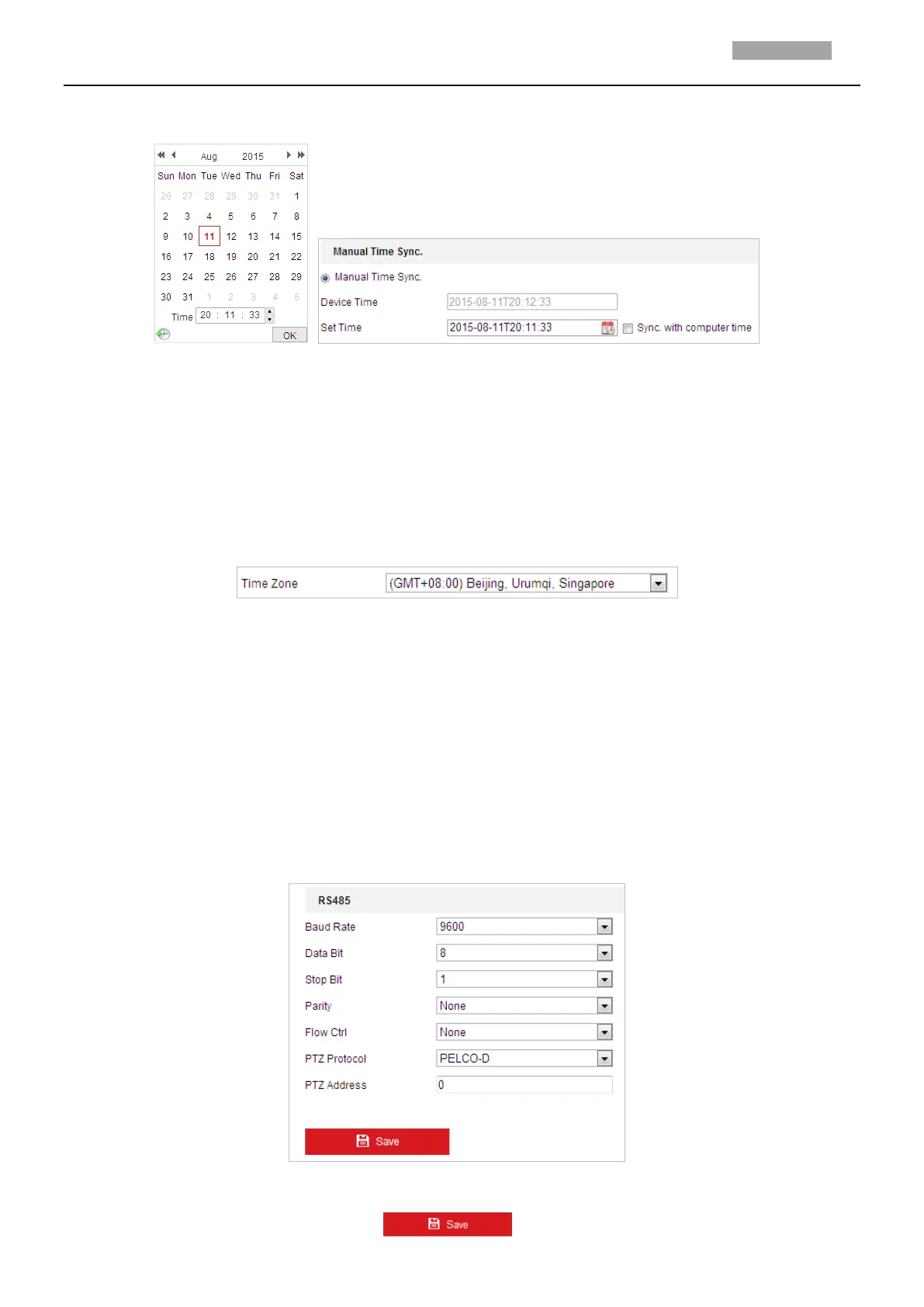

Figure 7-4 Time Sync Manually
Select the Time Zone
Purpose:
When the camera is taken to another time zone, you can use the Time Zone function to adjust the
time. The time will be adjusted according to the original time and the time difference between the
two time zones.
From the Time Zone dropdown menu as shown in Figure 7-5, select the Time Zone in which the
camera locates.
Figure 7-5 Time Zone Settings
7.1.3 Configuring RS-485
Purpose:
The RS-485 serial port is used to control the PTZ of the camera. The configuring of the PTZ parameters
should be done before you control the PTZ unit.
Steps:
1. Enter RS-485 Port setting interface:
Configuration > System > System Settings > RS-485
Figure 7-6 RS-485 Settings
2. Set the RS-485 parameters and click to save the settings.
