HIKVISION DS-7100HWI User Manual

User Manual of DS-7100HWI/HVI-SL Series DVR
12
1.4 Rear Panel
The rear panel of DS-7108HWI-SL is shown in Figure 1.3.

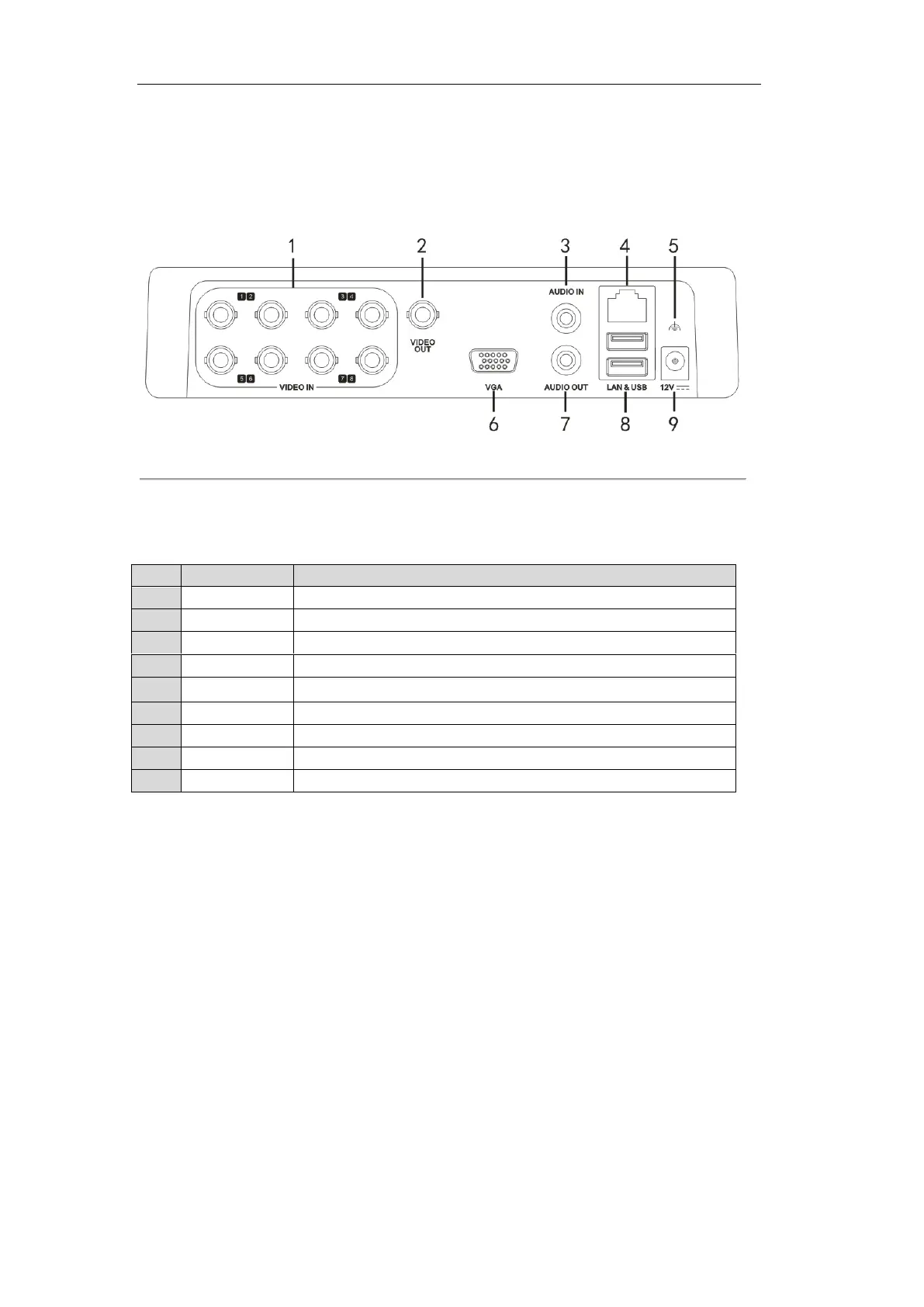

Figure 1.3 Rear Panel of DS-7108HWI-SL
Note: The DS-7104HWI-SL provides 4 video input interfaces and the DS-7116HWI/HVI-SL provides 16
video input interfaces on the rear panel.
Table 1.4 Description of Rear Panel
No.
Item
Description
1
VIDEO IN
BNC connector for analog video input.
2
VIDEO OUT
BNC connector for video output.
3
AUDIO IN
RCA connector for audio input.
4
LAN Interface
RJ45 10M / 100M Ethernet interface.
5
GND
Ground (needs to be connected when DVR starts up)
6
VGA
DB15 connector for VGA output. Display local video output and menu.
7
AUDIO OUT
RCA connector for audio output.
8
USB Interface
Connects USB mouse or USB flash memory devices.
9
12V
12VDC power supply.
