User Manual of DS-7100HWI/HVI-SL Series DVR
97

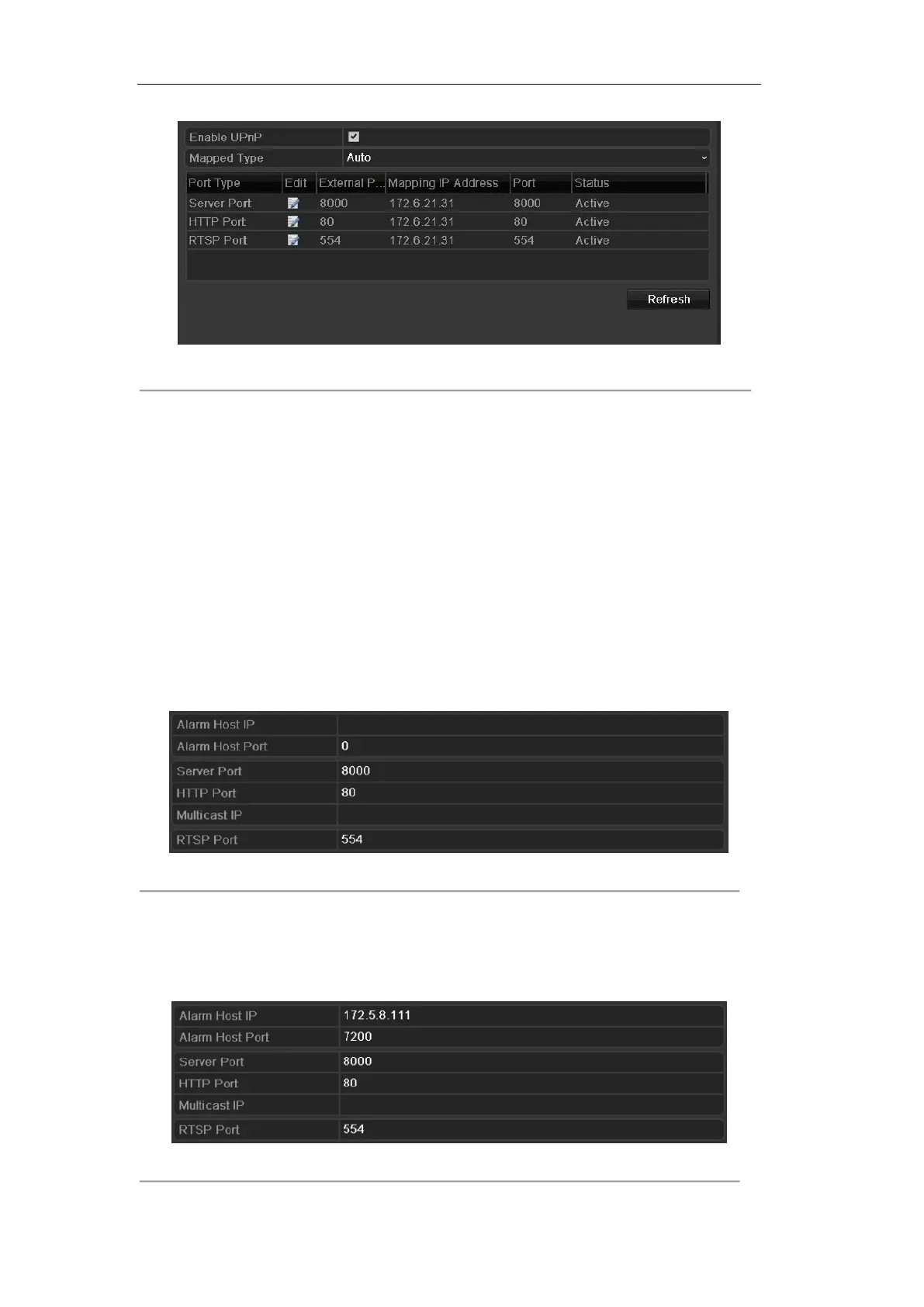

Figure 8.15 UPnP™ Settings Finished
7. Click the Apply button to save the settings.
8.2.5 Configuring Remote Alarm Host
Purpose:
With a remote alarm host configured, the device will send the alarm event or exception message to the host
when an alarm is triggered. The remote alarm host must have the CMS (Client Management System) software
installed.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
2. Select the More Settings tab to enter the More Settings interface.
Figure 8.16 More Settings Interface
3. Enter Alarm Host IP and Alarm Host Port in the text fields.
The Alarm Host IP refers to the IP address of the remote PC on which the CMS (Client Management
System) software (e.g., iVMS-4200) is installed, and the Alarm Host Port must be the same as the
alarm monitoring port configured in the software (default port is 7200).
Figure 8.17 Configure Alarm Host
