User Manual of DS-7100HWI/HVI-SL Series DVR
38
4.3 Configuring Motion Detection Record
Purpose:
Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event
takes place, the device can analyze it and perform some response actions to handle it. Enabling motion
detection function can trigger certain channels to start recording, or trigger full screen monitoring, audio
warning, notify the surveillance center and so on. In this chapter, you can follow the steps to schedule a record
which triggered by the detected motion.
Steps:
1. Enter the Motion Detection interface.
Menu>Camera>Motion

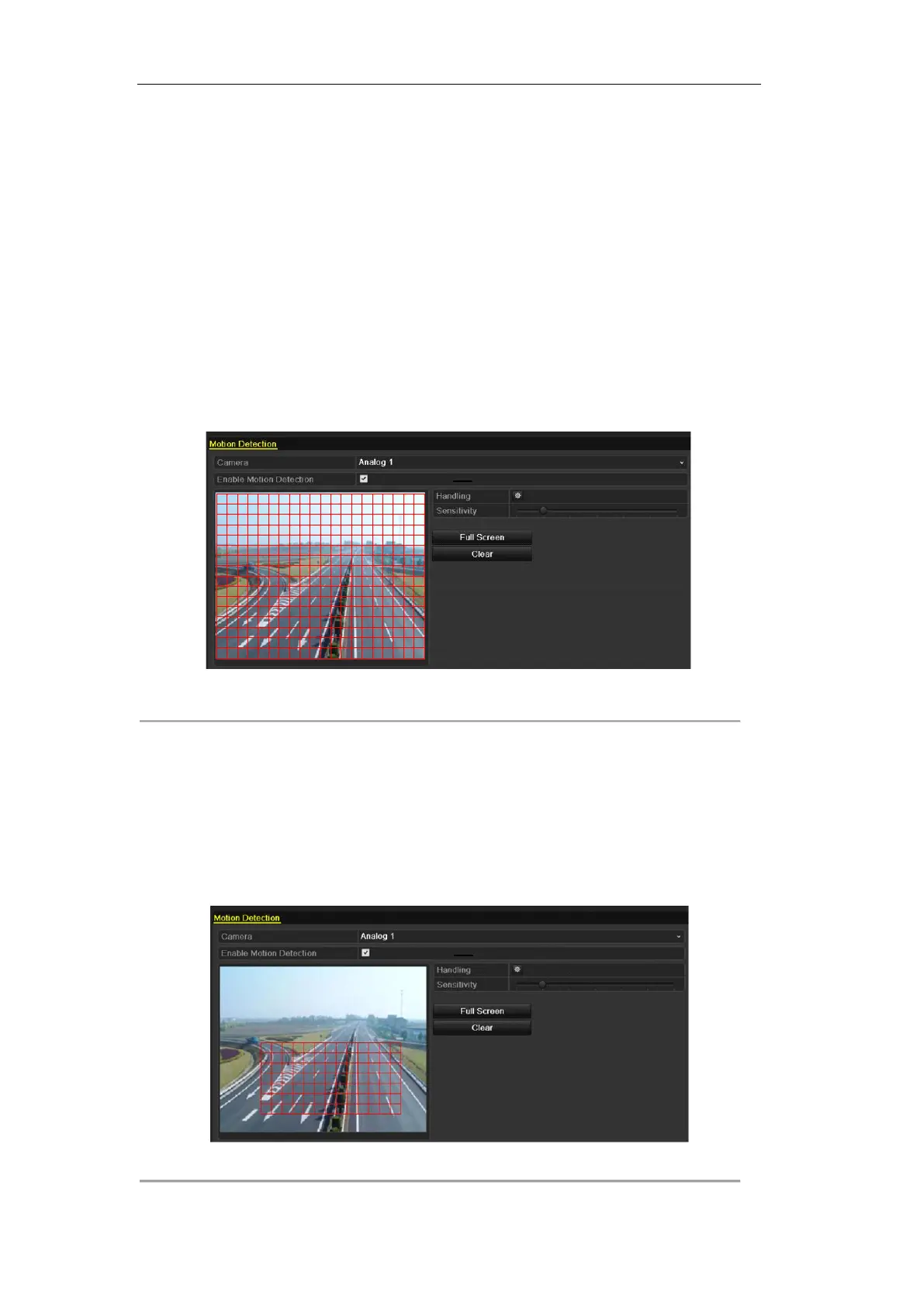

Figure 4.12 Motion Detection
2. Configure Motion Detection:
1) Choose camera you want to configure.
2) Check the checkbox after Enable Motion Detection.
3) Drag and draw the area for motion detection by mouse. If you want to set the motion detection
for all the area shot by the camera, click Full Screen. To clear the motion detection area, click
Clear.
Note: By default, the motion detection is configured in full screen.
Figure 4.13 Motion Detection- Mask
