User Manual of DS-7100HWI/HVI-SL Series DVR
27
3.3 Adjusting Live View Settings
Purpose:
Live View settings can be customized according to different needs. You can configure the output interface,
dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.
Steps:
1. Enter the Live View Settings interface.
Menu> Configuration> Live View

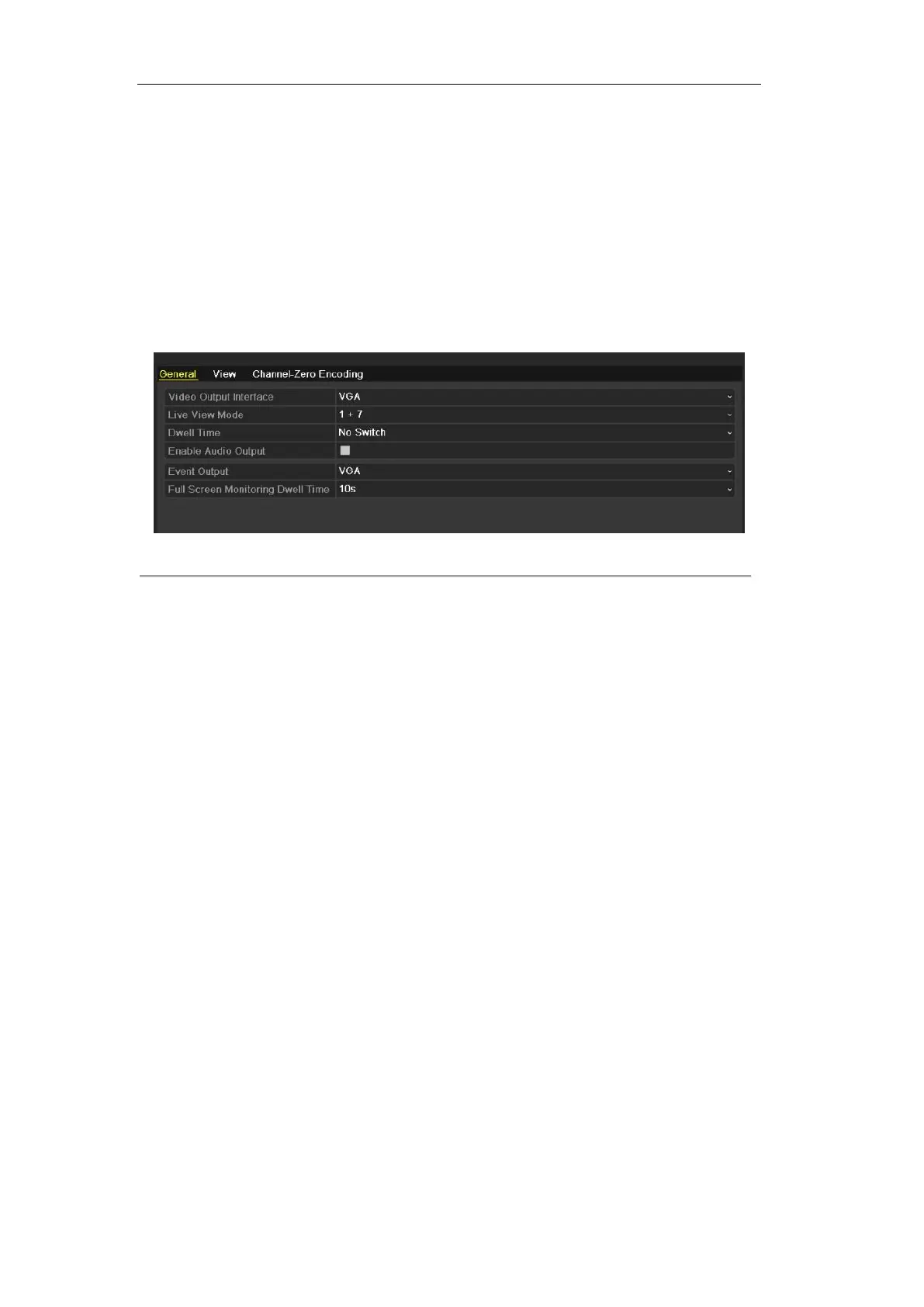

Figure 3.8 Live View-General
The settings available in this menu include:
• Video Output Interface: Select the output to configure the settings for. Two output interfaces
are selectable: VGA and Main CVBS.
• Live View Mode: Select different window-division mode from the drop-down list.
• Dwell Time: The time in seconds to dwell between switching of channels when enabling
auto-switch in Live View.
• Enable Audio Output: Enable/disable audio output for the selected video output.
Notes:
1. When the VGA output interface is used as the main video output and the Audio Output
for the VGA output interface is enabled, the VGA audio and AUDIO OUT can be used for
live view, playback and two-way audio.
2. When the VGA output is used as the main video output and the Audio Output for the
VGA output interface is disabled, the VGA output provides no audio and the AUDIO
OUT is used for two-way audio.
3. When the CVBS output is used as the main video output, the VGA audio is provided for
Aux video output in live view, and the AUDIO OUT is used as the main video output (for
live view, playback or two-way audio).
• Event Output: Select the output to show event video.
• Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
2. Setting Camera Order
