HIKVISION DS-7116HGHI-F1 User Manual

Digital Video Recorder User Manual
212
Click the Refresh button if the connected local backup device cannot be displayed. When it fails to
detect the backup device, please check whether it is compatible with the DVR. You can format the
backup device if the format is incorrect.

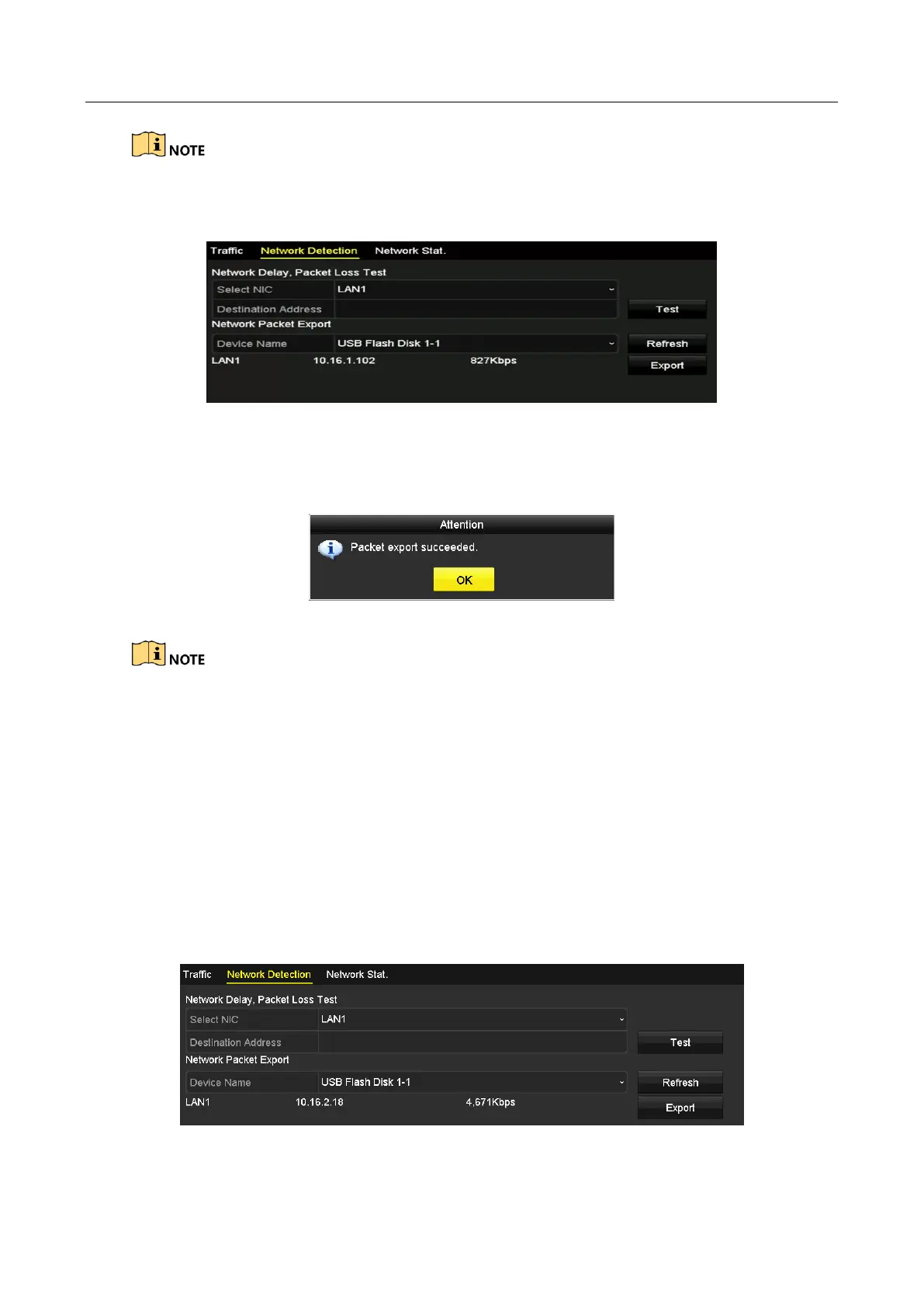

Figure 12-26 Export Network Packet
Step 4 Click the Export button to start exporting.
Step 5 After the exporting is complete, click OK to finish the packet export.
Figure 12-27 Packet Export Attention
Up to 1M data can be exported each time.
12.3.3 Checking Network Status
Purpose
You can also check the network status and quick set the network parameters in this interface.
Step 1 Enter the Network Traffic interface.
Menu > Maintenance > Net Detect
Step 2 Click the Network Detection tab to enter the Network Detection interface.
Step 3 Click Status on the right bottom of the interface.
Figure 12-28 Checking Network Status

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
