HIKVISION DS-7116HGHI-F1 User Manual

Digital Video Recorder User Manual
242

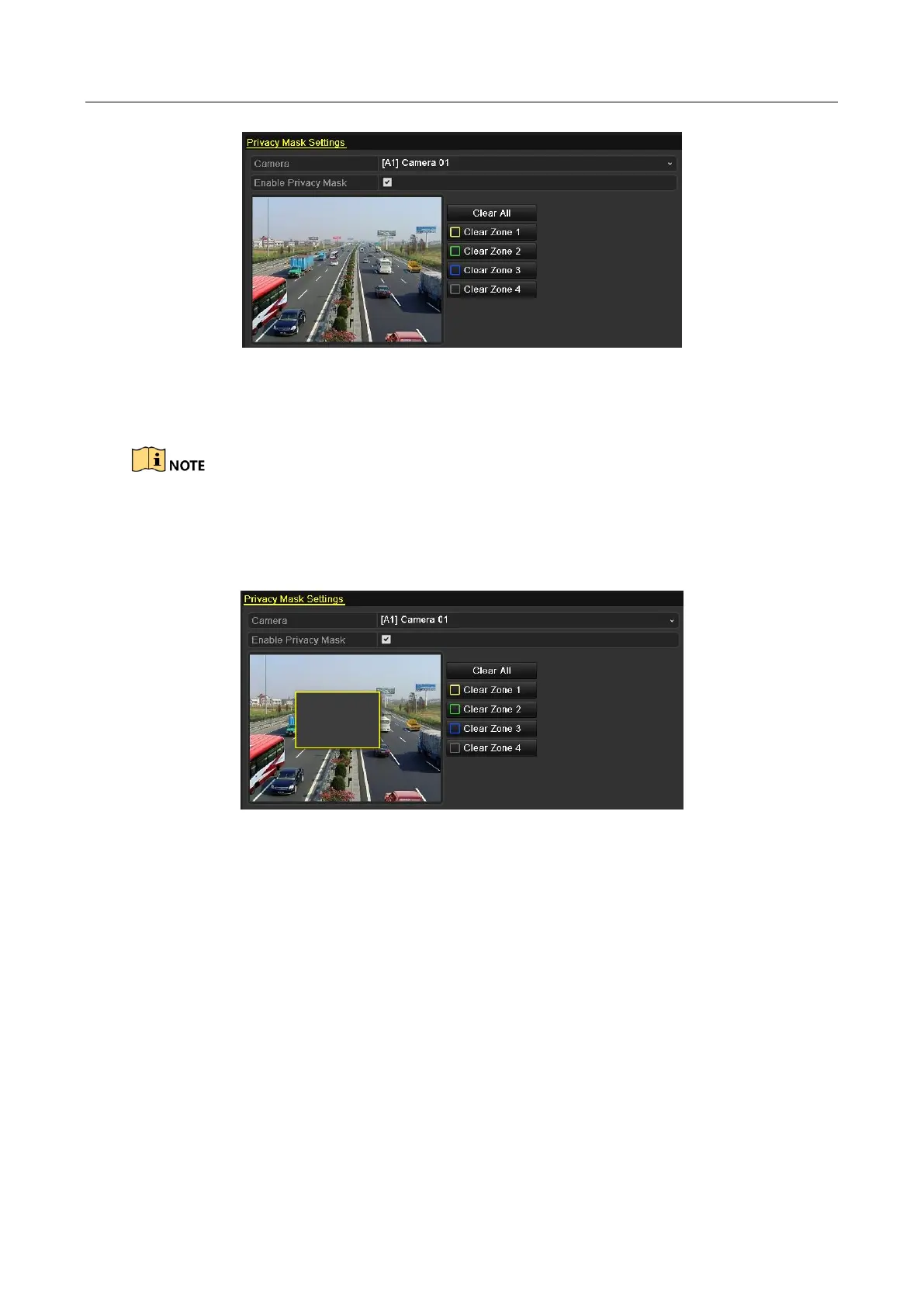

Figure 15-3 Privacy Mask Settings Interface
Step 4 Use the mouse to draw a zone on the window. The zones will be marked with different
frame colors.
Up to 4 privacy mask zones can be configured, and the size of each area can be adjusted.
Step 5 The configured privacy mask zones on the window can be cleared by clicking the
corresponding Clear Zone1-4 icons on the right side of the window, or click Clear All to
clear all zones.
Figure 15-4 Set Privacy Mask Area
Step 6 You can click the Copy button to copy the privacy mask settings of the current camera to
other cameras.
Please refer to step 7 of Chapter 15.1 Configuring OSD Settings.
Step 7 Click the Apply button to save the settings.
15.3 Configuring Video Parameters
15.3.1 Configuring Image Settings
Step 1 Enter the Image Settings interface.
Menu > Camera > Image

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
