Digital Video Recorder User Manual
244
Contrast and Saturation for the IP cameras. You can also click Restore to set the
parameters to the default settings.
Step 7 You can click Copy to copy the image settings of the current camera to other cameras.
Step 8 Click Apply to save the settings.
15.3.2 Configuring Camera Parameters Settings
This section is applicable to -F series DVR.
Step 1 Enter the Image Settings interface.
Menu > Camera > Image
Step 2 Select the Camera Parameters Settings tab.

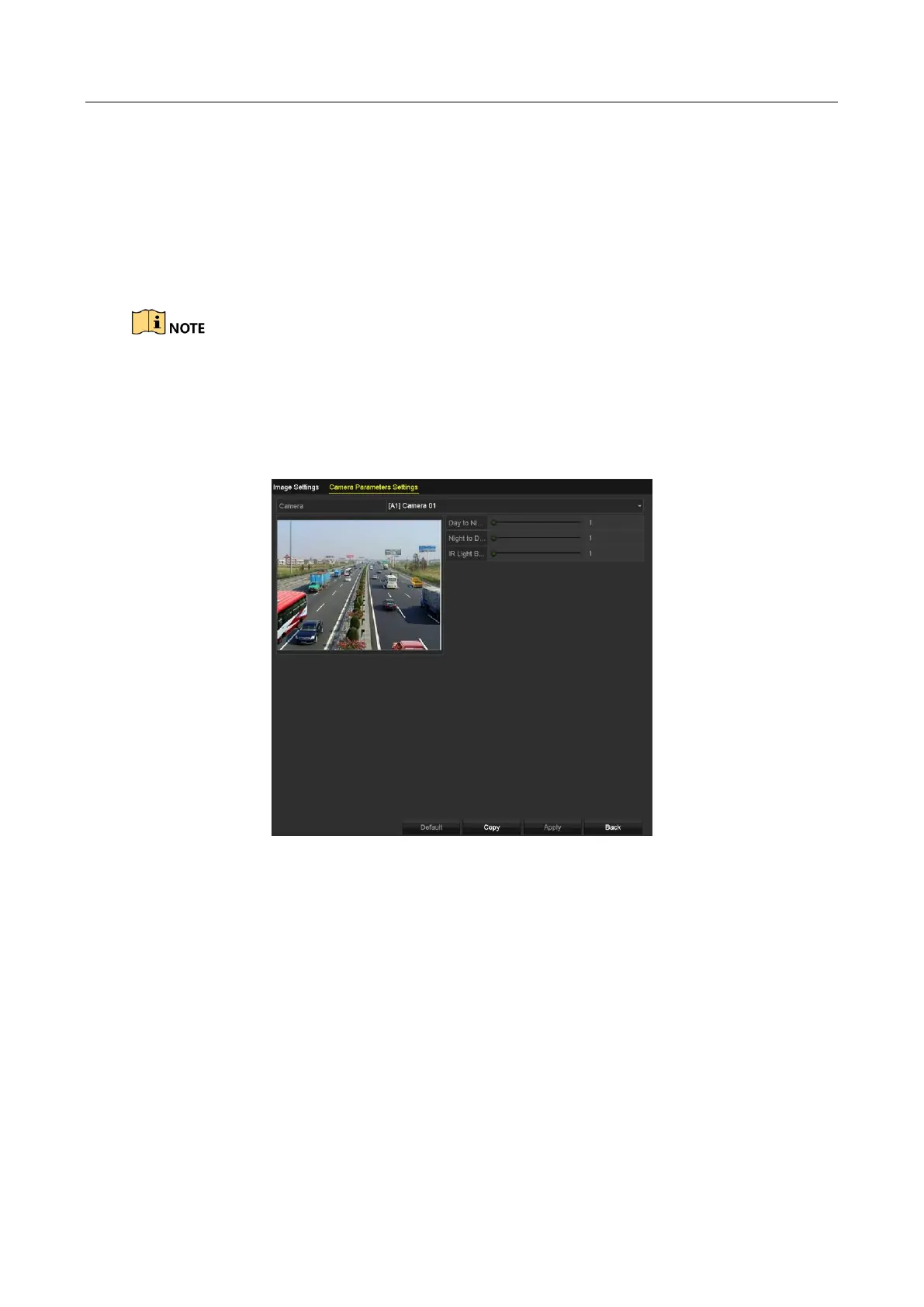

Figure 15-7 Camera Parameters Settings
Step 3 Select the Camera from the dropdown list.
Step 4 Adjust the camera parameters. The parameters include Day to Night Sensitivity, Night to
Day Sensitivity and IR Light Brightness for the analog cameras. You can also click Default to
set the parameters to the default settings.
Step 5 You can click Copy to copy the parameters of the current camera to other analog cameras.
Step 6 Click Apply to save the settings.

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
