Digital Video Recorder User Manual
238

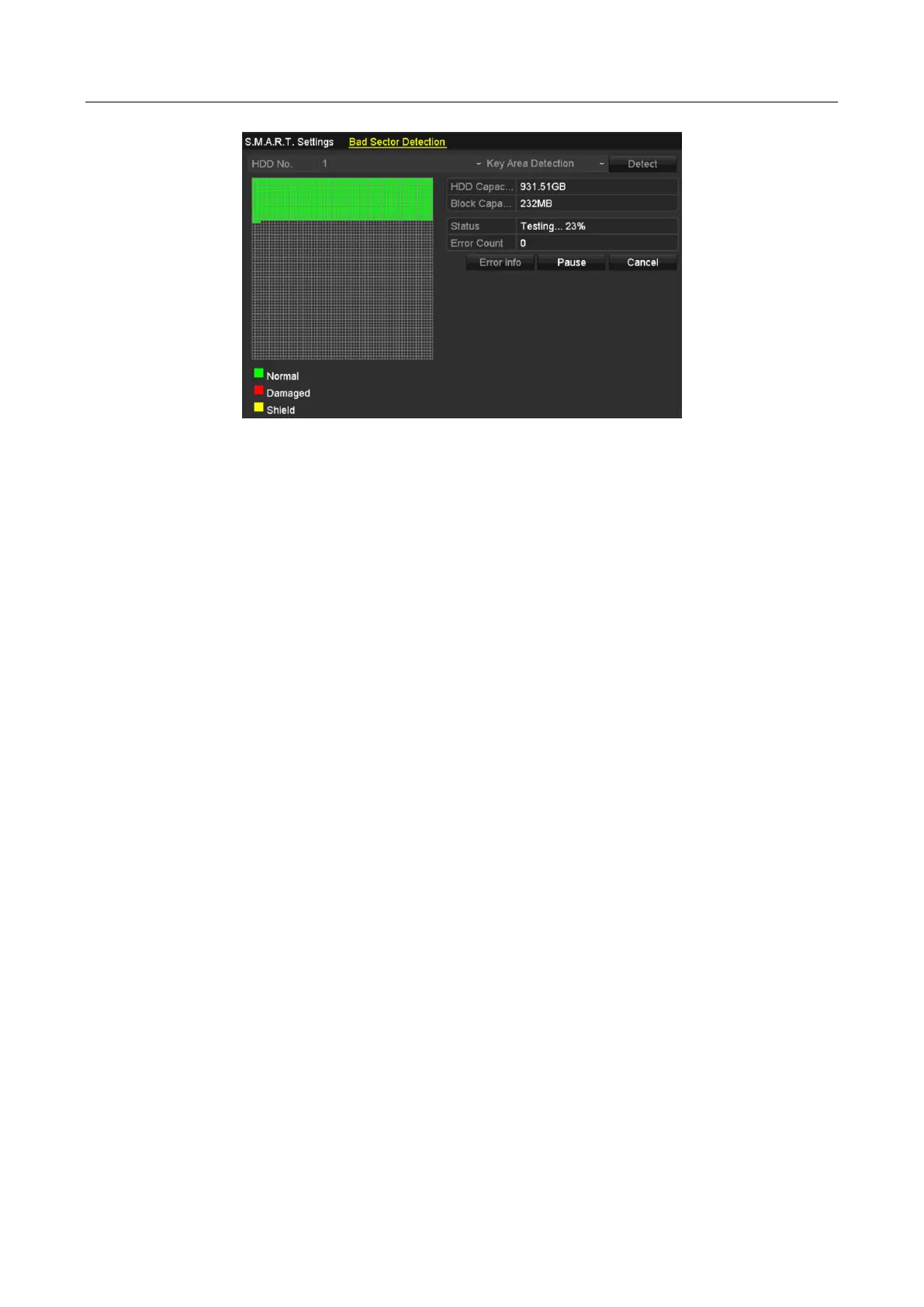

Figure 14-29 Bad Sector Detecting
Step 4 You can click the Pause button to pause the detection and click the Resume button to
resume the detection.
Step 5 If there is error information about the HDD, you can click the Error Info button to view the
information.
14.10 Configuring HDD Error Alarms
Purpose
You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal.
Step 1 Enter the Exception interface.
Menu > Configuration > Exceptions
Step 2 Select the Exception Type to HDD Error from the dropdown list.
Step 3 Check the checkbox(s) below to select the linkage action(s) for HDD error, as shown in
Figure 14-30.
The linkage actions can be selected to: Audible Warning, Notify Surveillance Center, Send
Email and Trigger Alarm Output.

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
