2.4 Basic Configuration in Startup Wizard
2.4.1 Configuring the Signal Input Wizard
For -E series DVR, there is no signal input configuration interface.
Purpose
For all the -F series DVR, after the startup and login, the device system enters the Wizard for
configuring the signal input.
You can also click Menu > Camera > Signal Input Status to configure the signal input.
Step 1 Check the checkbox to select different signal input types: HD/CVBS and IP.
Step 2 Click Apply to save the settings.

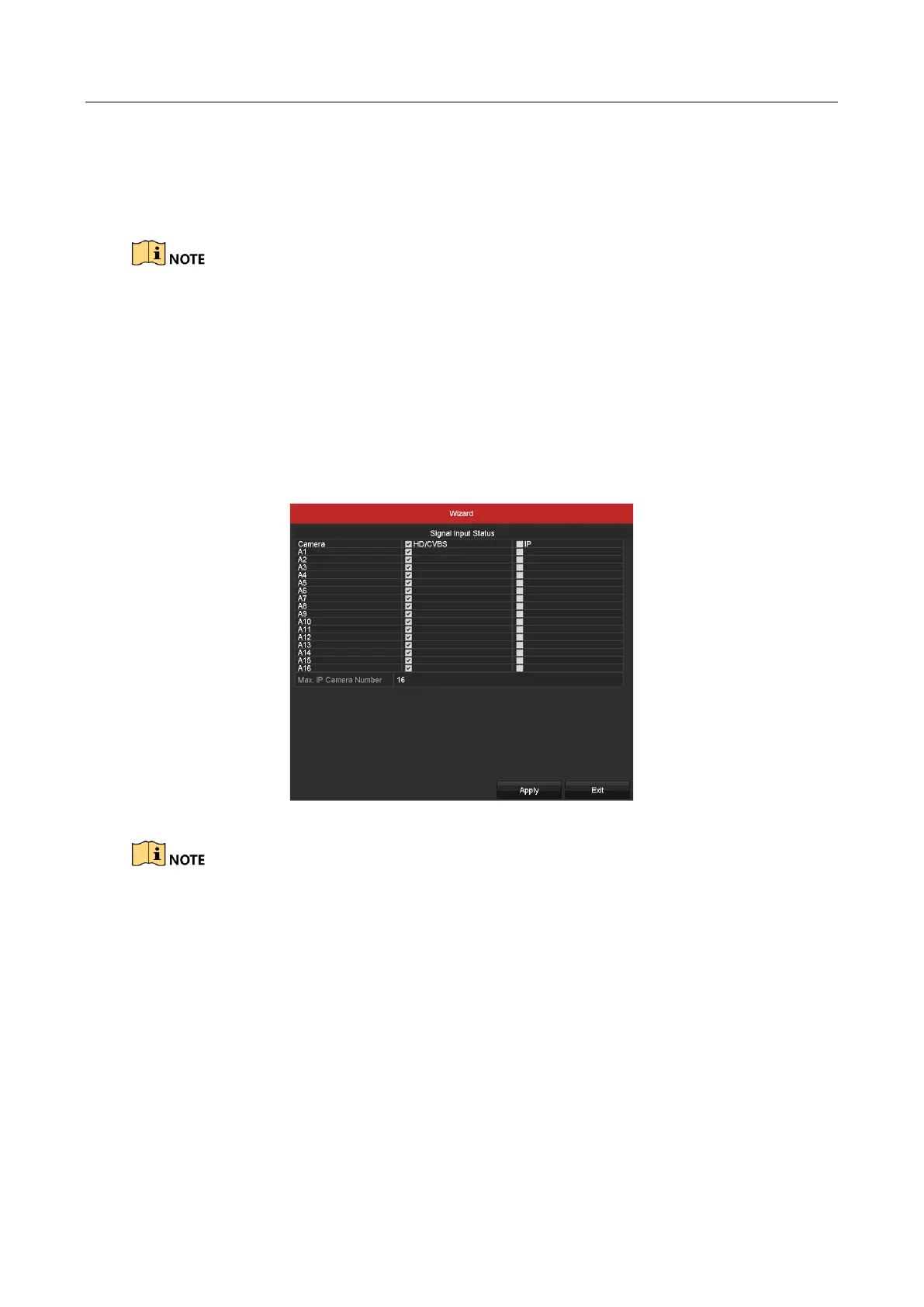

Figure 2-15 Configure Signal Input Type
For detailed information of signal input, you can refer to Chapter 2.7 Configuring the Signal Input
Channel for reference.
2.4.2 Using the Wizard for Basic Configuration
Purpose
By default, the Setup Wizard starts once the device has loaded. You can follow it to complete the
basic configuration.
Selecting the language:
Step 1 Select the language from the dropdown list.

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
