Digital Video Recorder User Manual
237
The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system for
HDD to detect and report on various indicators of reliability in the hopes of anticipating failures.
Step 1 Enter the HDD Detect interface.
Menu > Maintenance > HDD Detect
Step 2 Click the S.M.A.R.T. Settings tab to enter the interface.
Step 3 Select the HDD to view its S.M.A.R.T. information list, as shown in Figure 14-28.
If you want to use the HDD even when the S.M.A.R.T. checking is failed, you can check the
checkbox before the Continue to use this disk when self-evaluation is failed item.

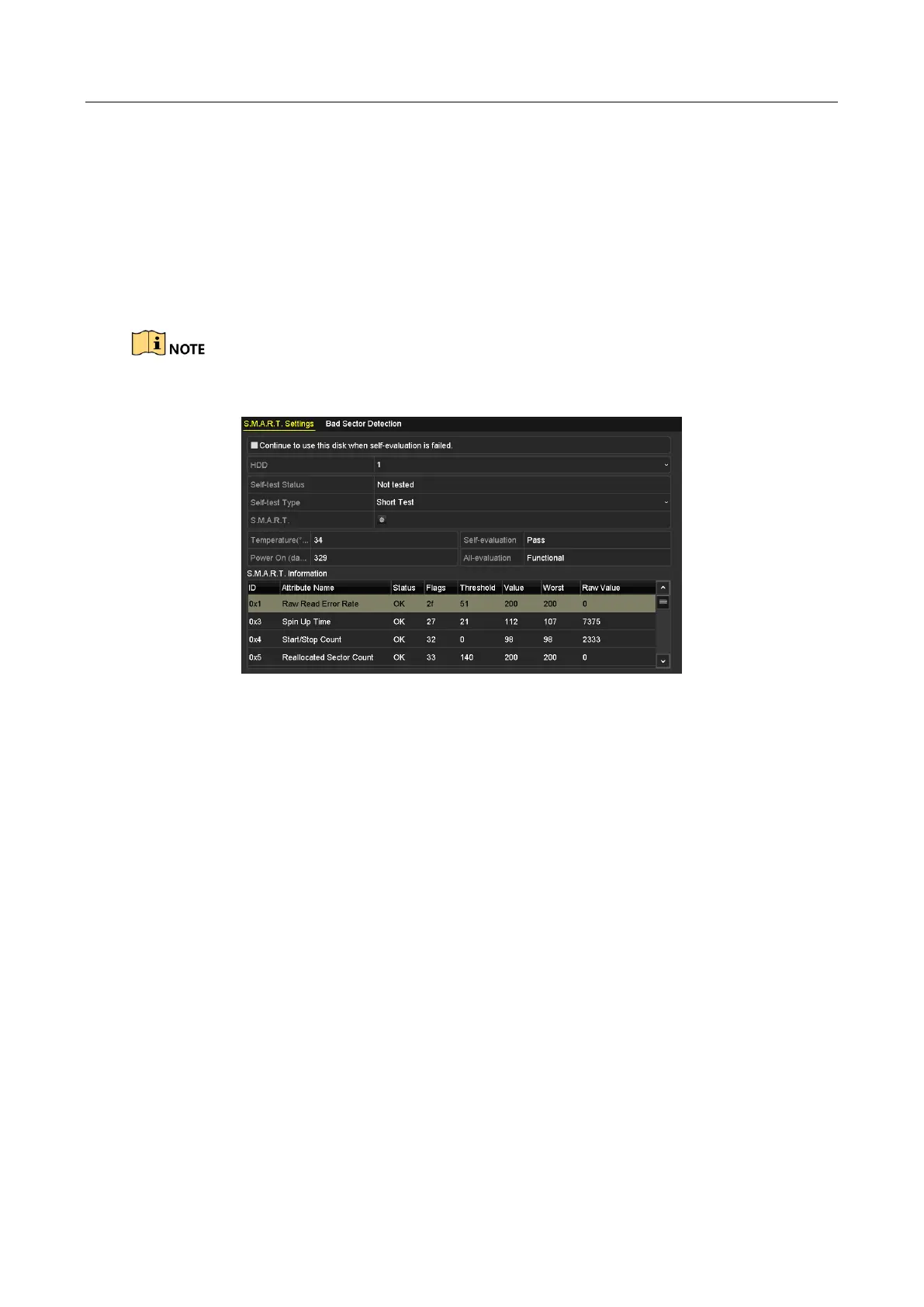

Figure 14-28 S.M.A.R.T Settings Interface
14.9 Detecting Bad Sector
Purpose
You can detect the bad sector of the HDD to check the status of the HDD.
Step 1 Enter the HDD Detect interface.
Menu>HDD>HDD Detect
Step 2 Click the Bad Sector Detection tab to enter the interface.
Step 3 Select a HDD and click the Detect button to start detecting.

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
