HIKVISION DS-7116HGHI-F1 User Manual

Digital Video Recorder User Manual
57

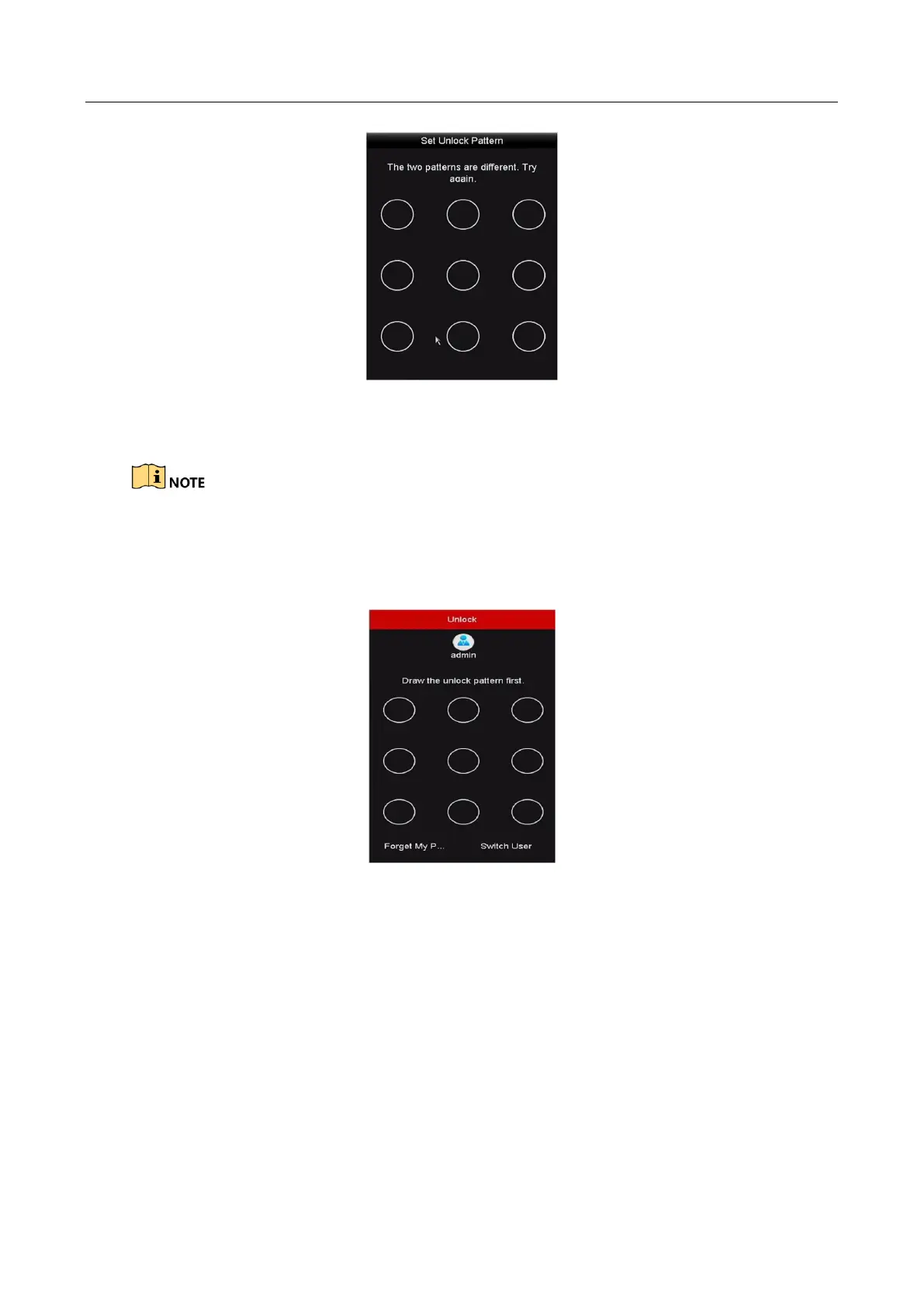

Figure 2-11 Reset the Pattern
2.3.2 Logging in via Unlock Pattern

Only the admin user has the permission to unlock the device.

Please configure the pattern first before unlocking. Please refer to Chapter 2.3.1
Configuring the Unlock Pattern.
Step 1 Right click the mouse on the screen and select the menu to enter the interface.
Figure 2-12 Draw the Unlock Pattern
Step 2 Draw the pre-defined pattern to unlock to enter the menu operation.

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
