HIKVISION DS-7116HGHI-F1 User Manual

Digital Video Recorder User Manual
257

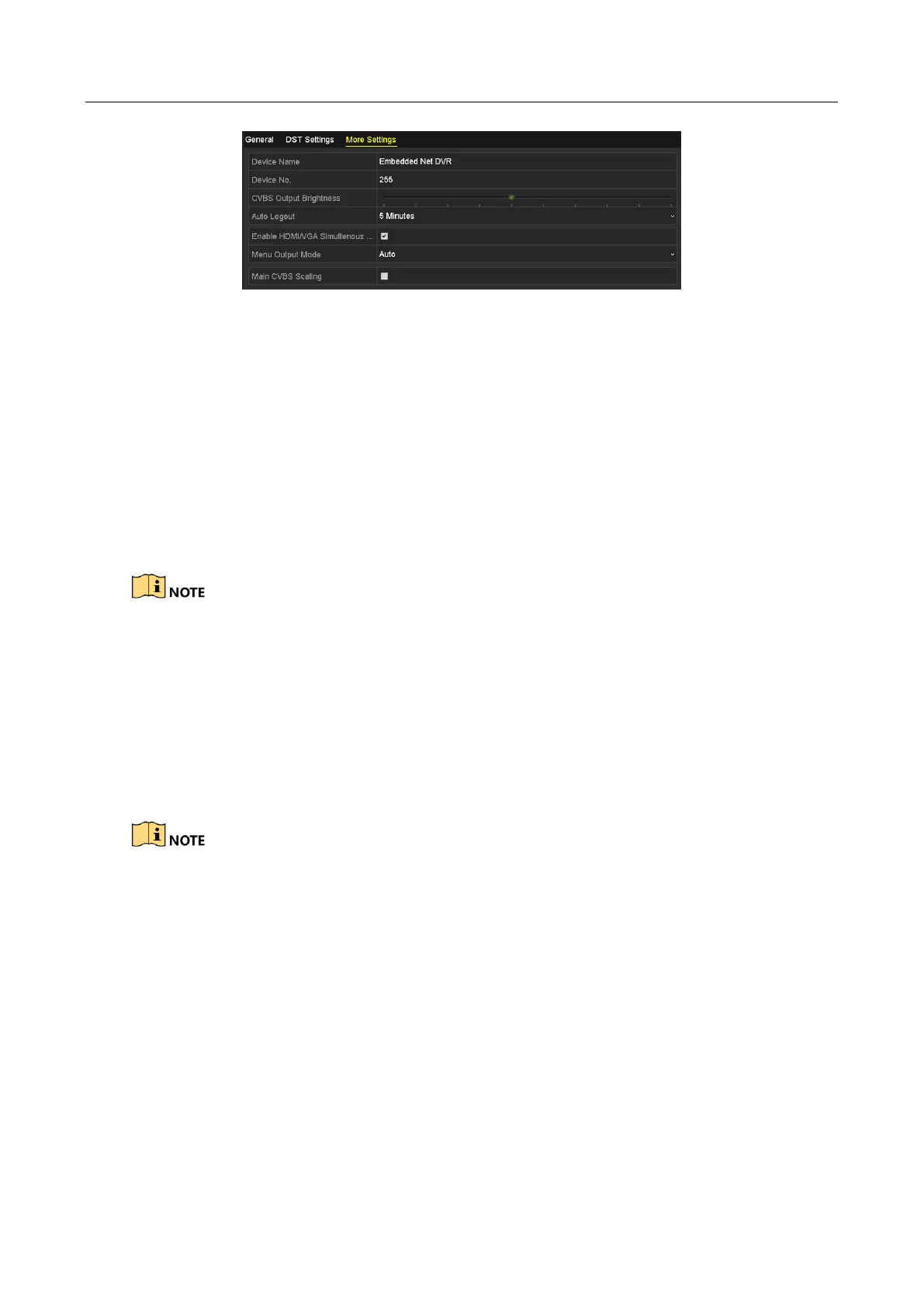

Figure 17-9 More Settings Interface (4)
Step 3 Configure the following settings:
 Device Name: Edit the name of DVR.
 Device No.: Edit the serial number of DVR. The Device No. can be set in the range of 1~255,
and the default No. is 255.
 Auto Logout: Set timeout time for menu inactivity. E.g., when the timeout time is set to 5
Minutes, then the system will exit from the current operation menu to live view screen
after 5 minutes of menu inactivity.
 CVBS Output Brightness: Adjust the video output brightness via the CVBS interface.
The CVBS Output is provided for the DS-7200/7300/8100HQHI-F/N and
DS-7200/7600/7300/8100/9000HUHI-F/N series DVR only.
 Enable HDMI/VGA Simultaneous Output: For DS-7608/7616HUHI-F/N and
DS-7300/8100HQHI-F/N series DVR, the HDMI and VGA interfaces can be configured to be
simultaneous or independent. You can check the checkbox to enable HDMI/VGA
simultaneous output or uncheck it to remain independent output of HDMI and VGA
interfaces.
 Menu Output Mode: You can choose the menu display on different video output.

For DS-7608/7616HUHI-F/N and DS-7300/8100HQHI-F/N series DVR, if you have configured
HDMI/VGA simultaneous output, you can select Auto and HDMI/VGA for the menu output
mode. If you have configured independent HDMI and VGA output, you can select Auto,
HDMI and VGA for the menu output mode.

For DS-7300/8100/9000HUHI-F/N series, Auto, HDMI1/VGA, and HDMI2 are selectable.

For HGHI-F/N, HGHI-F, DS-7104/7108/7204/7208HQHI-F/N and DS-7200/7604HUHI-F/N
series DVR, Auto and HDMI/VGA are selectable.
 Encoding Mode: For DS-7100/7200HGHI-E series DVR, you can select the encoding mode.
When the non-real-time mode is selected, the max. frame rate (Menu>Record>Parameters)
can be set to 15 fps only.
 Main CVBS Scaling: You can check the checkbox to enable main CVBS scaling.

HIKVISION DS-7116HGHI-F1 Specifications

General

Bit rate	64 Kbit/s
Certification	CE
Product color	White
Channels quantity	16 channels
Maximum frame rate	30 fps
Audio output channels	2.0 channels
Audio formats supported	G.711 μ-law
Multi-display supported	Yes
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1x RCA
BNC input ports	16
USB 2.0 ports quantity	2
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	20 W

Weight and Dimensions

Depth	210 mm
Width	285 mm
Height	45 mm
Weight	1200 g
