User Manual of Digital Video Recorder
120
8.2 Setting Sensor Alarms
This function is not supported by DS-7100HGHI-SH and DS-7200HGHI-SH series DVR.
Purpose:
Set up handling method of an external sensor alarm.
Steps:
1. Enter Alarm Settings of System Configuration and select an alarm input.
Menu> Configuration> Alarm
Select Alarm Input tab to enter Alarm Input Settings interface.

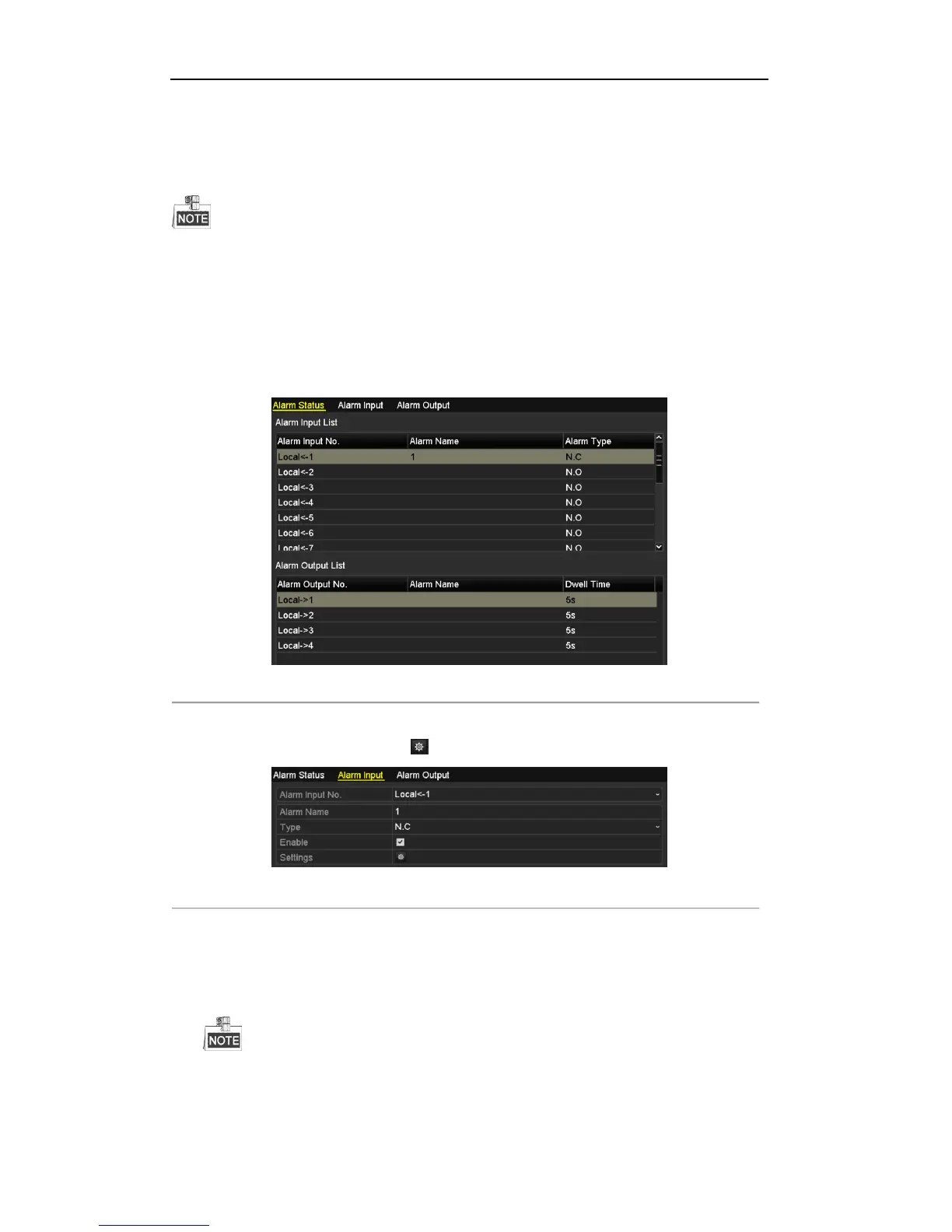

Figure 8. 6 Alarm Status Interface of System Configuration
2. Set the handling method of the selected alarm input.
Check the Setting checkbox and click button to set its alarm response actions.
Figure 8. 7 Alarm Input Settings Interface
3. Select Trigger Channel tab and select one or more channels which will start to record or become
full-screen monitoring when an external alarm input is triggered.
4. Select Arming Schedule tab to set the channel‟s arming schedule.
Choose one day of a week and Max. eight time periods can be set within each day.
Time periods shall not be repeated or overlapped.

HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
