User Manual of Digital Video Recorder
51
3.4 Adjusting Live View Settings
Purpose:
Live View settings can be customized according to different needs. You can configure the output interface,
dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.
Steps:
1. Enter the Live View Settings interface.
Menu> Configuration> Live View

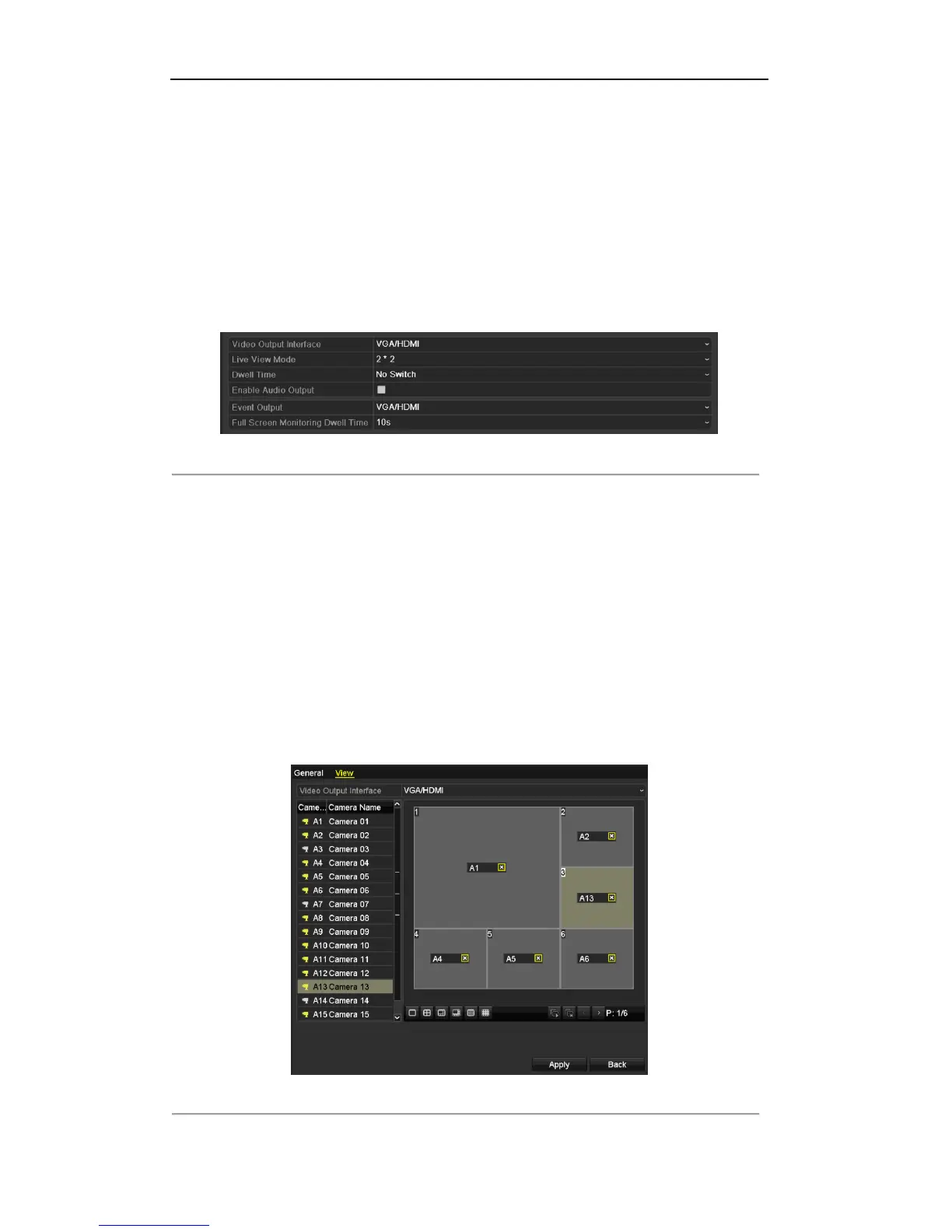

Figure 3. 7 Live View-General
The settings available in this menu include:
Video Output Interface: Designates the output to configure the settings for. Outputs include
HDMI/VGA and CVBS (depends on the model).
Live View Mode: Designates the display mode to be used for Live View.
Dwell Time: The time in seconds to dwell between switching of channels when enabling auto-switch
in Live View.
Enable Audio Output: Enables/disables audio output for the selected camera in the live view mode.
Event Output: Designates the output to show event video; if available, you can select a different
video output interface from the Video Output Interface when an event occurs.
Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.
2. Set the camera order.
1) Select View tab.
Figure 3. 8 Live View- Camera Order
