9.4 Configuring Network Detection
Purpose:
You can obtain network connecting status of DVR through the network detection function, including network
delay, packet loss, etc.
9.4.1 Testing Network Delay and Packet Loss
Steps:
1. Enter the Network Traffic interface.
Menu > Maintenance > Net Detect
2. Click the Network Detection tab to enter the Network Detection menu.

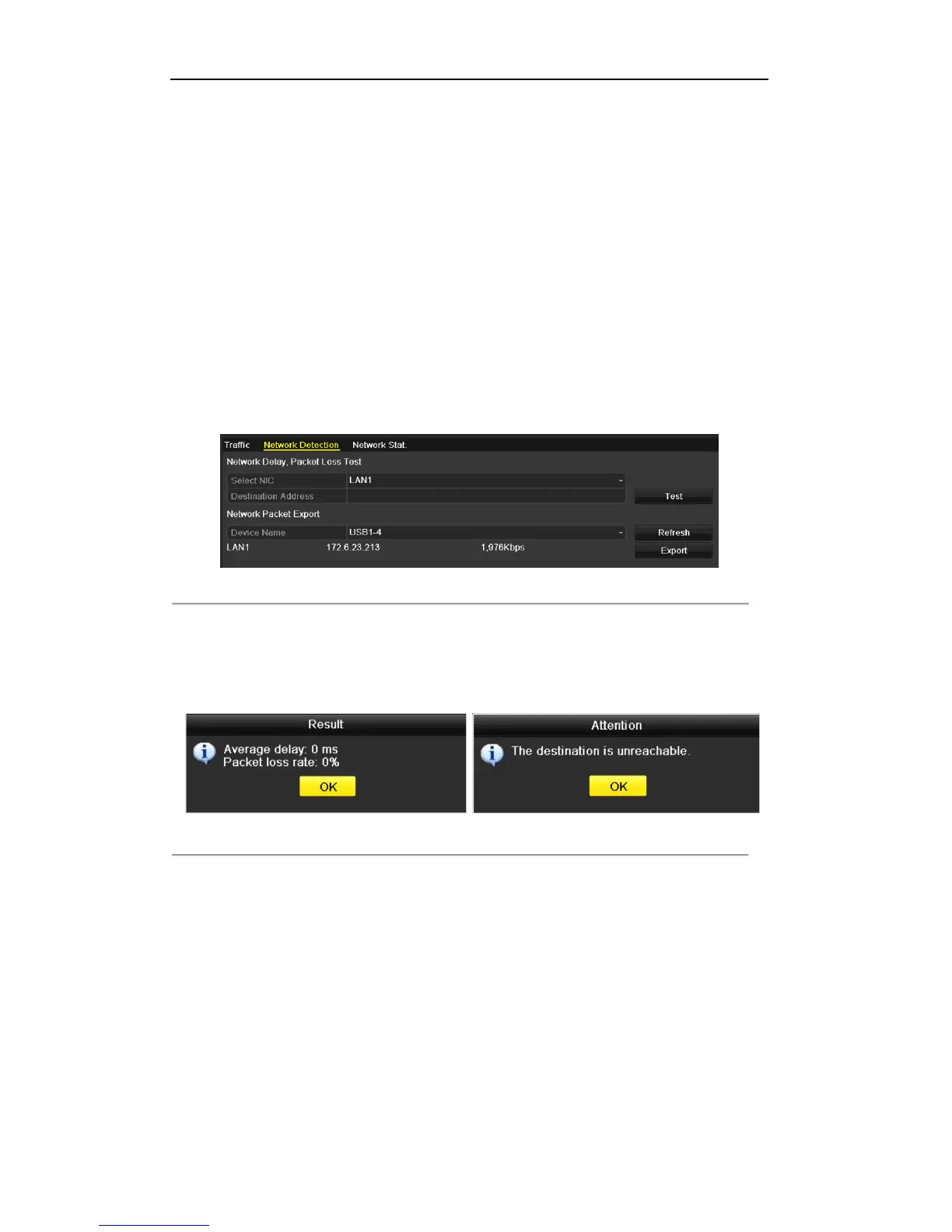

Figure 9. 33 Network Detection Interface
3. Select a NIC to test network delay and packet loss.
4. Enter the destination address in the text field of Destination Address.
5. Click the Test button to start testing network delay and packet loss. The testing result pops up on the
window. If the testing is failed, the error message box will pop up as well.
Figure 9. 34 Testing Result of Network Delay and Packet Loss
9.4.2 Exporting Network Packet
Purpose:
By connecting the DVR to network, the captured network data packet can be exported to USB-flash disk, SATA
and other local backup devices.
Steps:
1. Enter the Network Traffic interface.
Menu > Maintenance > Net Detect
2. Click the Network Detection tab to enter the Network Detection interface.

HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
