HIKVISION DS-7204HGHI-SH User Manual

User Manual of Digital Video Recorder
75
5.4 Configuring Alarm Triggered Record
The DS-7100HGHI-SH and DS-7200HGHI-SH series DVR do not support the alarm input by default.
Purpose:
Follow the procedure to configure alarm triggered recording.
Steps:
1. Enter the Alarm setting interface.
Menu> Configuration> Alarm

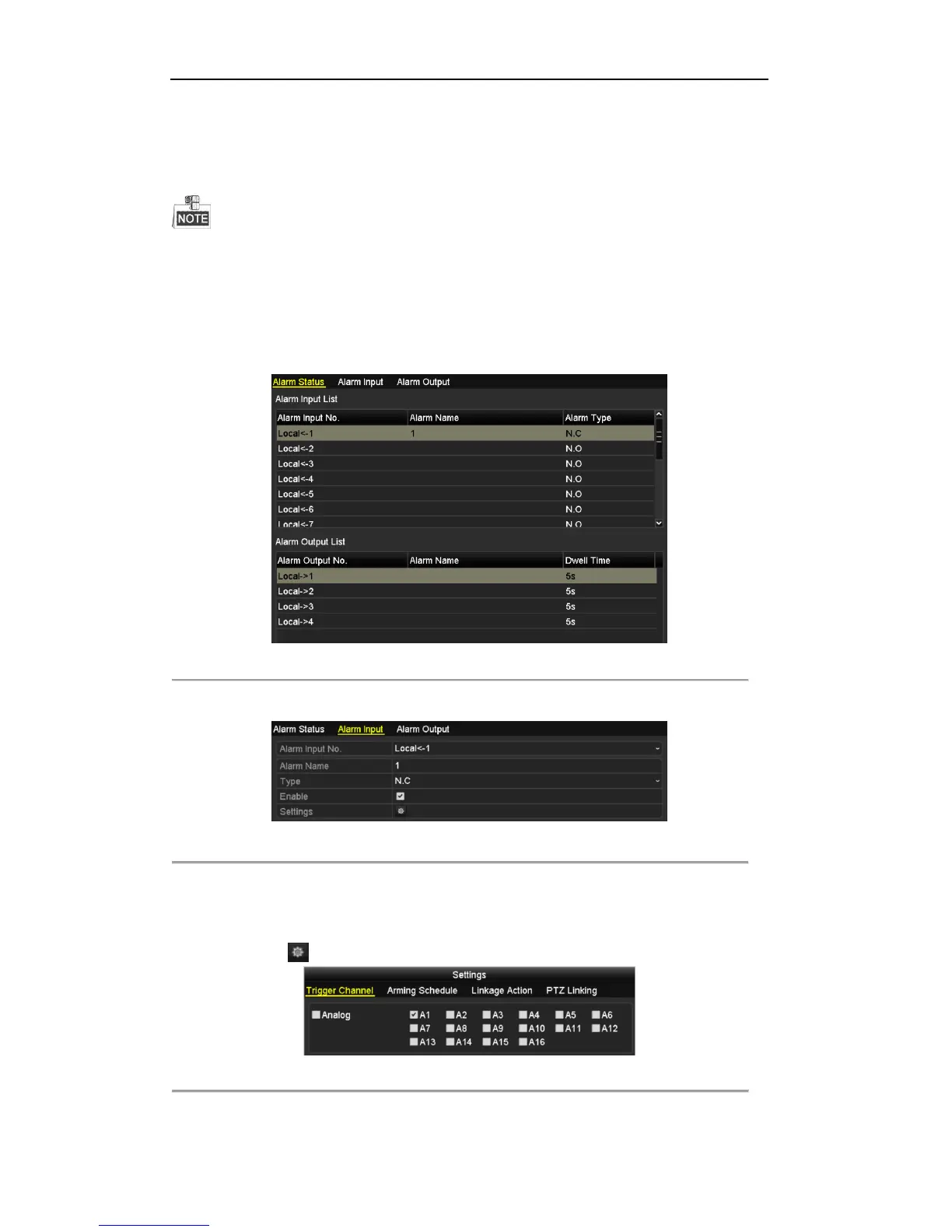

Figure 5. 16 Alarm Settings
2. Click the Alarm Input tab.
Figure 5. 17 Alarm Settings- Alarm Input
1) Select Alarm Input number and configure alarm parameters.
2) Choose N.O (normally open) or N.C (normally closed) for alarm type.
3) Check the checkbox of Setting.
4) Click the button.
Figure 5. 18 Alarm Handling
5) Choose the alarm triggered recording channel.

HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
