HIKVISION DS-7204HGHI-SH User Manual

User Manual of Digital Video Recorder
96

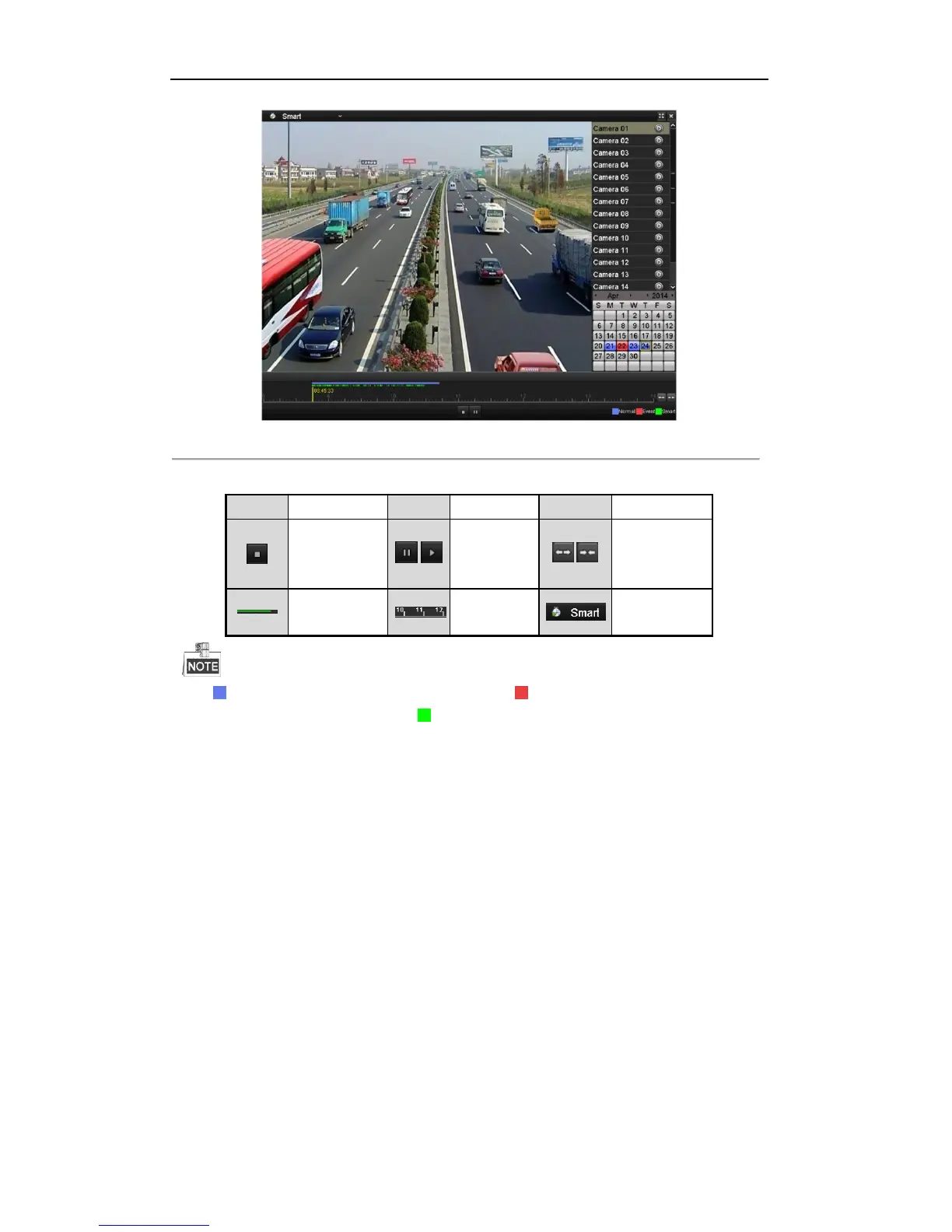

Figure 6. 17 Smart Playback Interface
Table 6. 5 Detailed Explanation of Smart Playback Toolbar
Button
Operation
Button
Operation
Button
Operation
Stop
/
Pause play/
Play
/
Scaling
up/down the
time line
Smart search
result
Process bar
Video type /
 represents normal recording (manual or schedule); represents event recording (motion, alarm,
motion | alarm, motion & alarm); and represents the video with motion.
 Playback progress bar: use the mouse to click any point of the progress bar to locate special frames, and
a thumbnail of the specified frame will be displayed.
6.1.6 Playing Back by System Logs
Purpose:
Play back record file(s) associated with channels after searching system logs.
Steps:
1. Enter Log Information interface.
Menu>Maintenance>Log Information

HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
