HIKVISION DS-7204HGHI-SH User Manual

User Manual of Digital Video Recorder
176

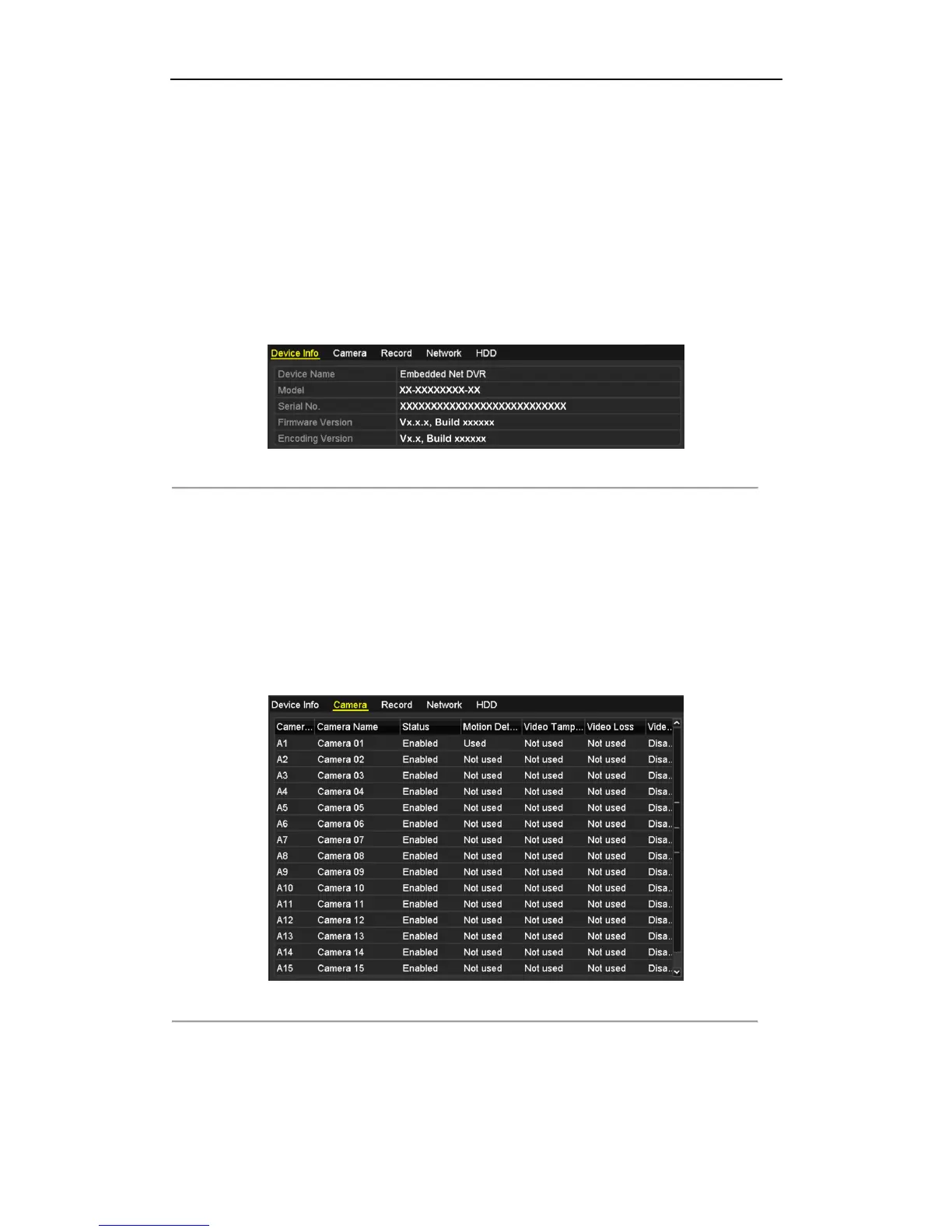

12.1 Viewing System Information
12.1.1 Viewing Device Information
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info
2. Click the Device Info tab to enter the Device Information menu to view the device name, model, serial No. ,
firmware version and encoding version, as shown in Figure 12. 1.
Figure 12. 1 Device Information Interface
12.1.2 Viewing Camera Information
Steps:
1. Enter the System Information interface.
Menu > Maintenance > System Info
2. Click the Camera tab to enter the Camera Information menu to view the status of each camera, as shown in
Figure 12. 2.
Figure 12. 2 Camera Information Interface

HIKVISION DS-7204HGHI-SH Specifications

General

Product color	Black
Channels quantity	4 channels
Total storage capacity	1000 GB
Video compression formats	H.264
Playback resolutions supported	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Audio input	1
BNC input ports	4
USB 2.0 ports quantity	2
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA
Power requirements	12V DC
Power consumption (typical)	15 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Dimensions (WxDxH)	315 x 242 x 45 mm
