User Manual of Digital Video Recorder
111
8.2 Setting Sensor Alarms
Purpose:
Set up handling method of an external sensor alarm.
Steps:
1. Enter Alarm Settings of System Configuration and select an alarm input.
Menu> Configuration> Alarm
Select Alarm Input tab to enter Alarm Input Settings interface.

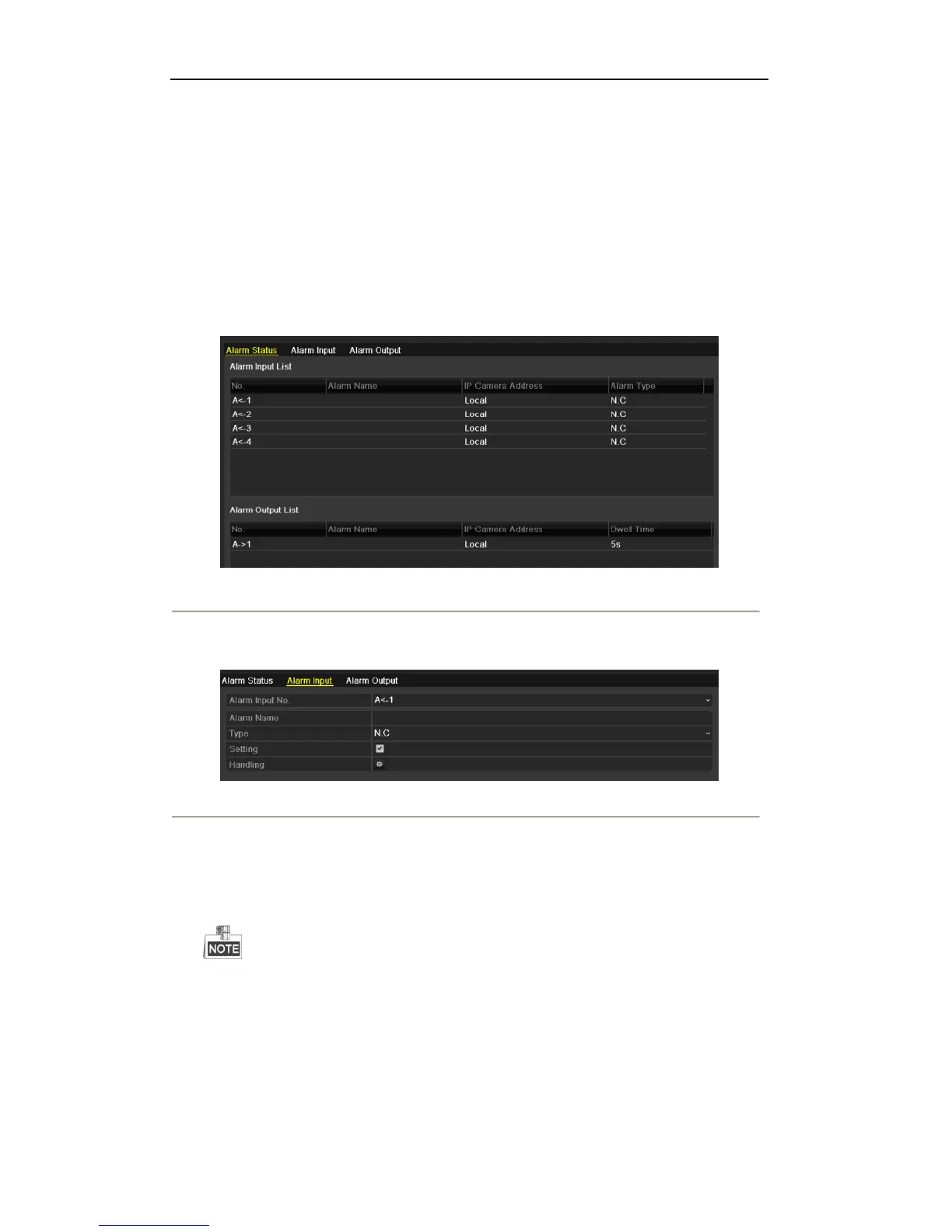

Figure 8. 6 Alarm Status Interface of System Configuration
2. Set the handling method of the selected alarm input.
Check the Setting checkbox and click Handling button to set its alarm response actions.
Figure 8. 7 Alarm Input Settings Interface
3. Select Trigger Channel tab and select one or more channels which will start to record or become
full-screen monitoring when an external alarm is input.
4. Select Arming Schedule tab to set the channel’s arming schedule.
Choose one day of a week and Max. eight time periods can be set within each day.
Time periods shall not be repeated or overlapped.
5. Select Handling tab to set up alarm response actions of the alarm input (please refer to Chapter 8.6
Setting Alarm Response Actions).
Repeat the above steps to set up arming schedule of other days of a week. You can also use Copy button
to copy an arming schedule to other days.
