User Manual of Digital Video Recorder
132
the other ports should be between 1 and 65535 and the value must be different from each other.
If multiple devices are configured for the UPnP™ settings under the same router, the value of
the port No. for each device should be unique.

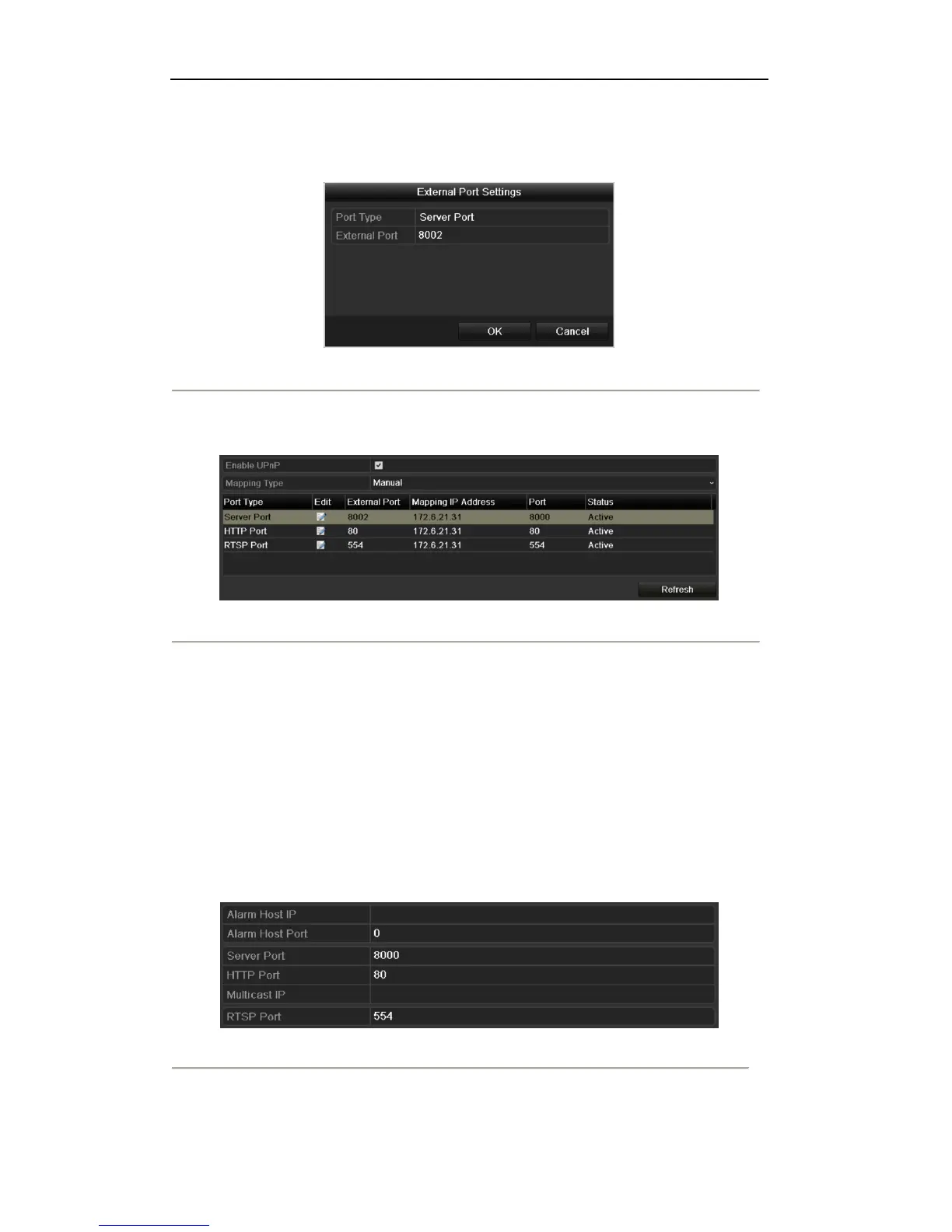

Figure 9. 17 External Port Settings Dialog Box
2) Click Apply button to save the settings.
3) You can click Refresh button to get the latest status of the port mapping.
Figure 9. 18 UPnP™ Settings Finished-Manual
9.2.6 Configuring the Remote Alarm Host
Purpose:
With a remote alarm host configured, the DVR will send the alarm event or exception message to the host when
an alarm is triggered. The remote alarm host must have the Network Video Surveillance software installed.
Steps:
1. Enter the Network Settings interface.
Menu > Configuration > Network
2. Select the More Settings tab to enter the More Settings interface.
Figure 9. 19 More Settings Interface
3. Enter Alarm Host IP and Alarm Host Port in the text fields.
The Alarm Host IP refers to the IP address of the remote PC on which the CMS (Client Management
