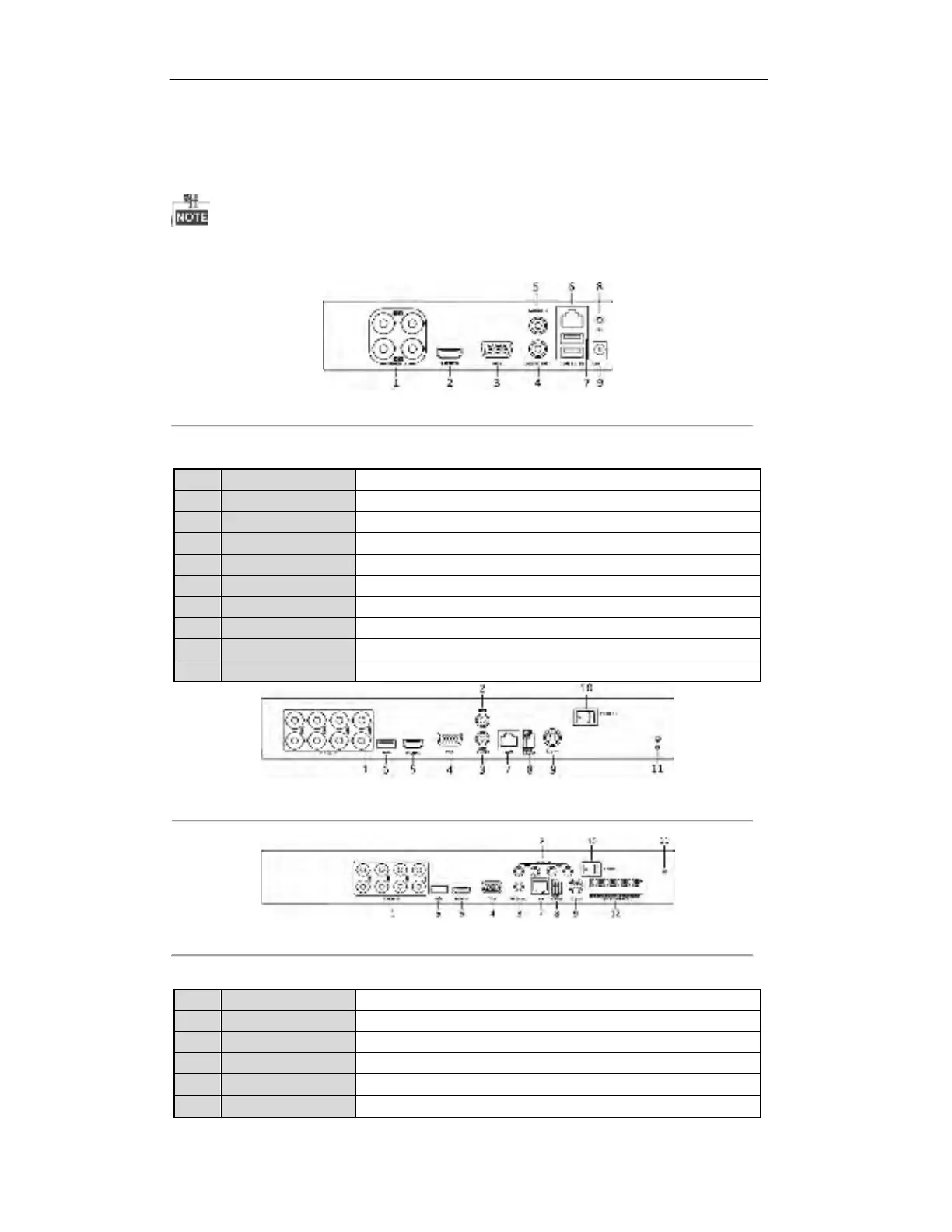

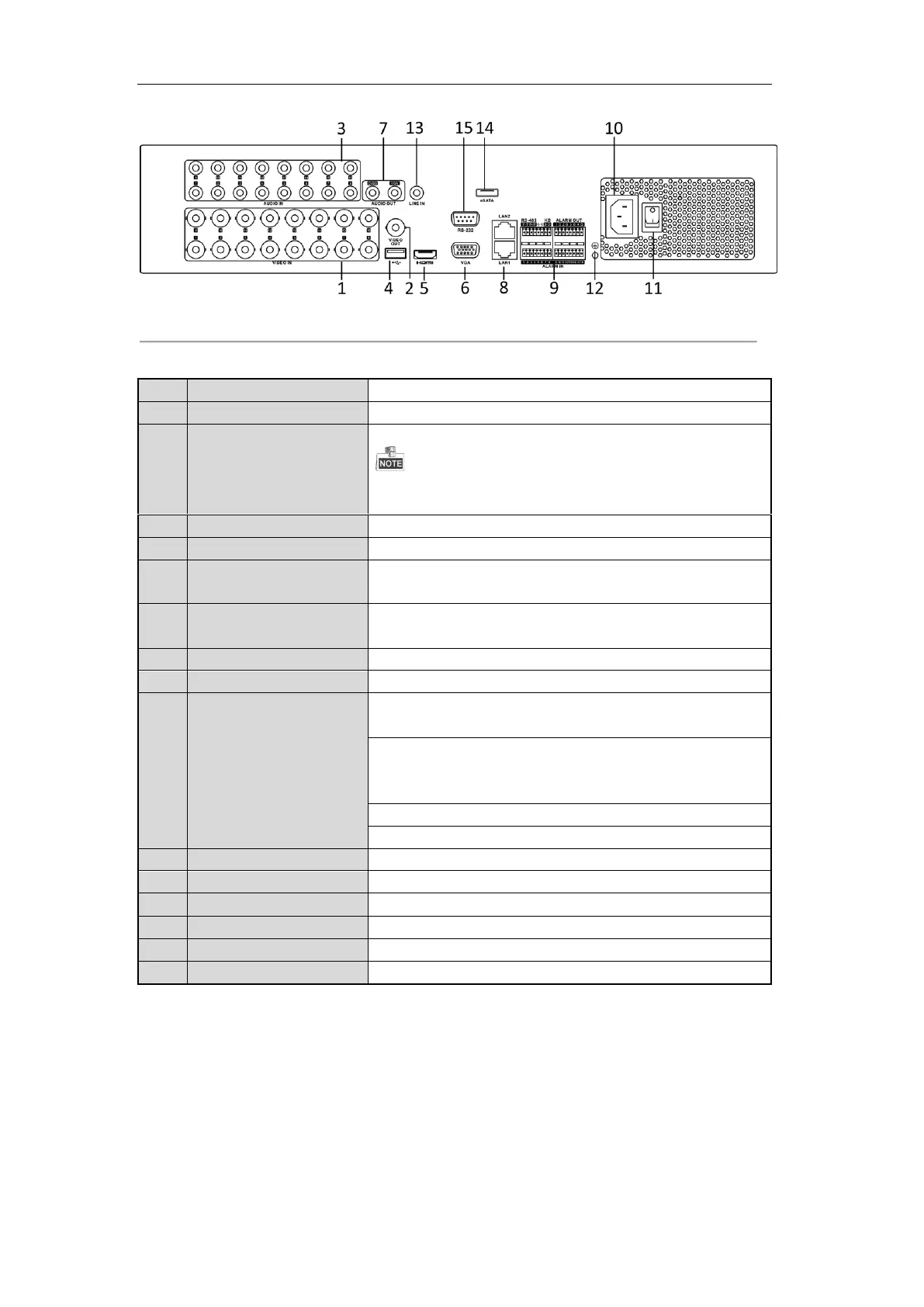

1.5 Rear Panel
The rear panel vaires according to different models. Please refer to the actual product. The following figures are
for reference only.
Figure 1. 10 DS-7100
Table 1. 10 Description of Front Panel
No. Item Description
1 VIDEO IN
BNC interface for TVI and analog video input.
2 HDMI
HDMI video output connector.
3 VGA
DB15 connector for VGA output. Display local video output and menu.
4 AUDIO OUT
RCA connector.
5 AUDIO IN
RCA connector.
6 Network Interface
Connector for network
7 USB Port
Universal Serial Bus (USB) port for additional devices.
8 GND
Ground
9 Power Supply
DC 12V power supply.
Figure 1. 11 DS-7200HGHI
Figure 1. 12 DS-7200HQHI
Table 1. 11 Description of Front Panel
No. Item Description
1 VIDEO IN
BNC interface for TVI and analog video input.
2 AUDIO IN
RCA connector
3 AUDIO OUT
RCA connector
4 VGA DB15 connector for VGA output. Display local video output and menu.
5 HDMI
HDMI video output connector.

HIKVISION DS-7324HGHI-SH Specifications

General

Voltage	100 - 240 V
Product color	Black
Audio input channels	4.0 channels
Audio output channels	1.0 channels
Video compression formats	H.264
RS-485 ports	1
Video input channels	24 channels
USB 2.0 ports quantity	3
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA, eSATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	4
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
