HIKVISION DS-7324HGHI-SH User Manual

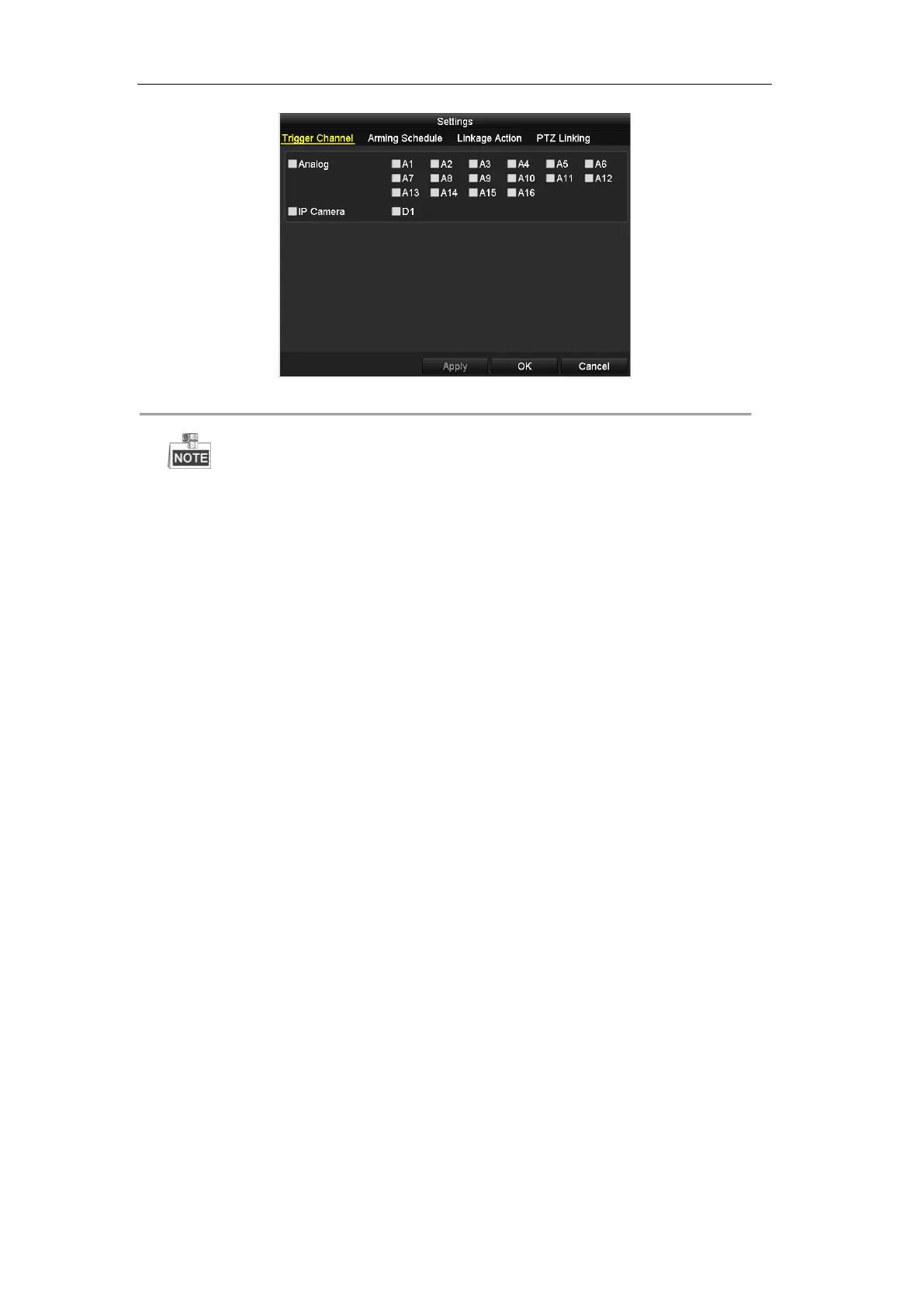

User Manual of Digital Video Recorder
76
5.1 Configuring Recording Parameters
Before you start:
1. Make sure that the HDD has already been installed. If not, please install a HDD and initialize it.
(Menu>HDD>General)
Figure 5. 1 HDD- General
2. Click Advance to check the storage mode of the HDD.
1) Whether the HDD mode is Quota , please set the maximum record capacity. For detailed information,
see
Chapter 10.5 Configuring Quota Mode .
2) If the HDD mode is Group , you should set the HDD group. For detailed information, see Chapter 5.9
Configuring HDD Group for Recording
.
Figure 5. 2 HDD- Advanced
Steps:
1. Enter the Record settings interface to configure the encoding parameters:
Menu>Record>Parameters
Figure 5. 3 Record Parameters
2. Set the parameters for recording.

HIKVISION DS-7324HGHI-SH Specifications

General

Voltage	100 - 240 V
Product color	Black
Audio input channels	4.0 channels
Audio output channels	1.0 channels
Video compression formats	H.264
RS-485 ports	1
Video input channels	24 channels
USB 2.0 ports quantity	3
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Supported network protocols	TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS
HDD interface	Serial ATA, eSATA
Maximum HDD capacity	6000 GB
Number of HDDs supported	4
Power consumption (typical)	55 W
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Weight	5000 g
Dimensions (WxDxH)	445 x 390 x 70 mm
