HIKVISION DS-7608NI-E2/8P User Manual

Network Video Recorder User Manual
99

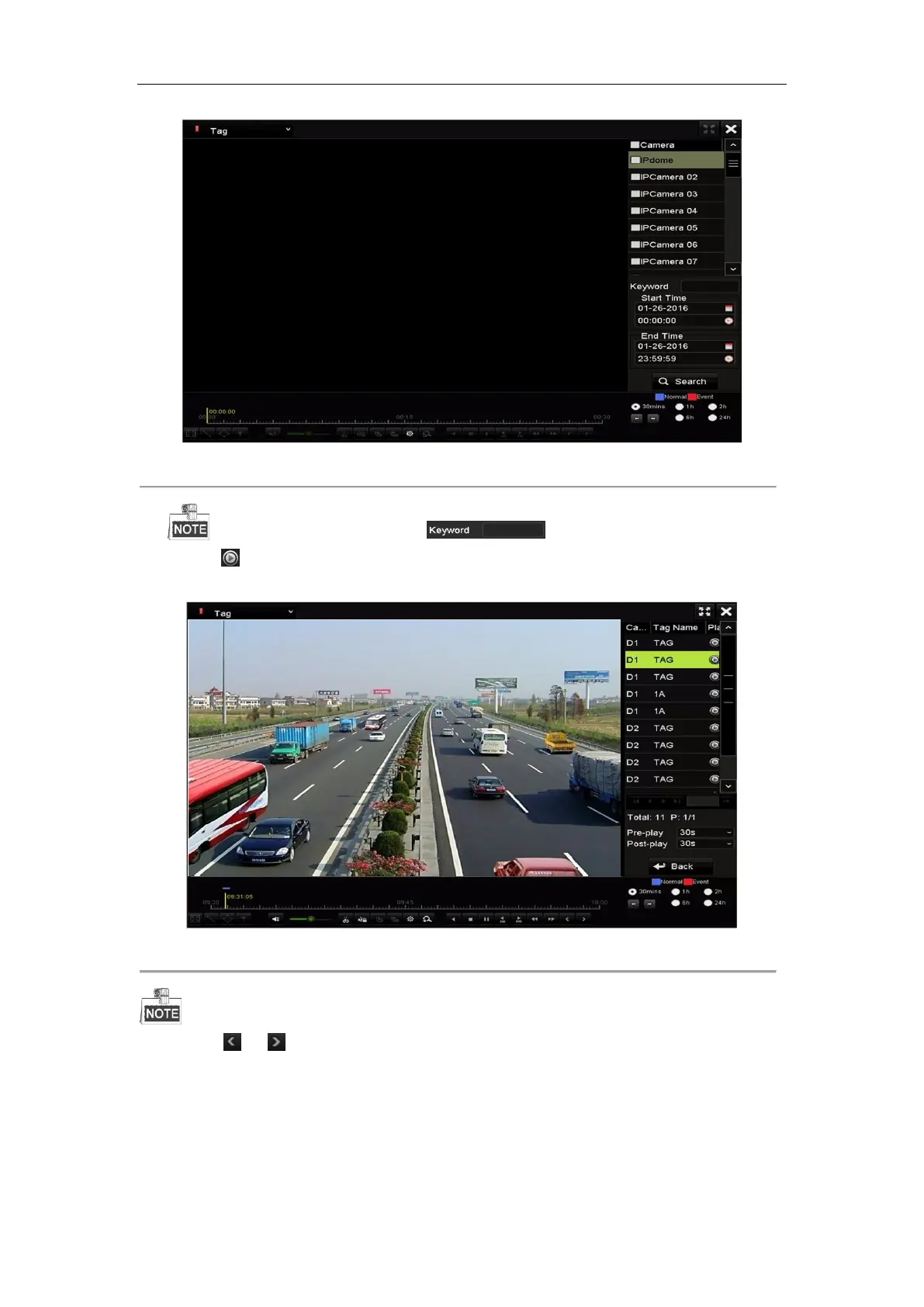

Figure 6. 11 Interface of Playback by Tag
You can enter keyword in the textbox to search the tag on your command.
3. Click button to play back the selected tag file.
You can click the Back button to back to the search interface.
Figure 6. 12 Interface of Playback by Tag
Pre-play and post-play can be configured.
You can click or button to select the previous or next tag. Please refer to Table 6.1 for the description of
buttons on the toolbar.
6.1.5 Playing back by Smart Search
Purpose:

HIKVISION DS-7608NI-E2/8P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	290 mm
Width	445 mm
Height	45 mm
Weight	1000 g
