HIKVISION DS-7608NI-E2/8P User Manual

Network Video Recorder User Manual
114

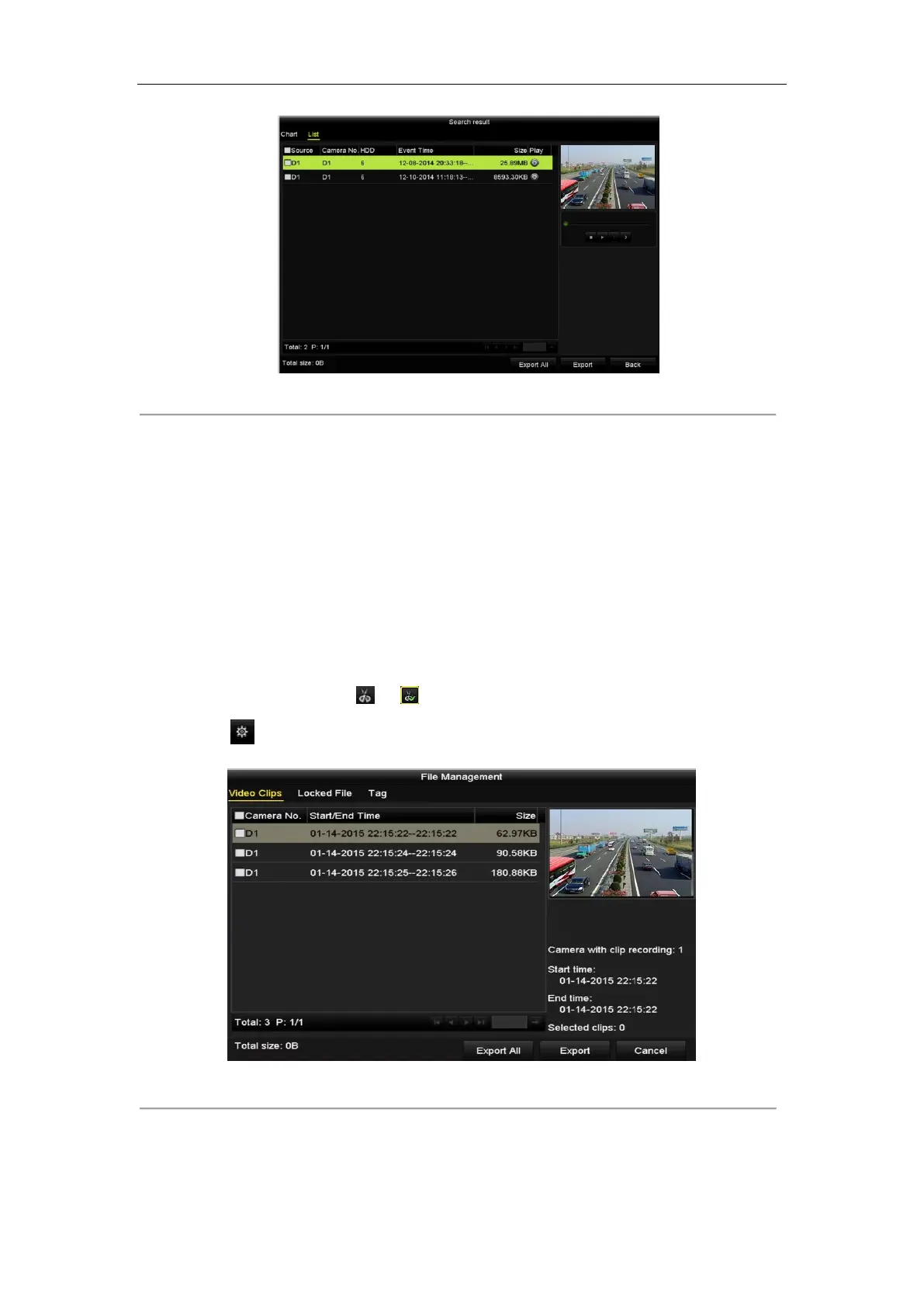

Figure 7. 10 Result of Event Search
6. Export the video files. Please refer to step5 of Chapter 7.1.2 Backing up by Normal Video Search for details.
7.1.4 Backing up Video Clips
Purpose:
You may also select video clips in playback mode to export directly during Playback, using USB devices (USB
flash drives, USB HDDs, USB writer), SATA writer or eSATA HDD.
Steps:
1. Enter Playback interface.
Please refer to Chapter 6.1 Playing Back Record Files.
2. During playback, use buttons or in the playback toolbar to start or stop clipping record file(s).
3. Click the to enter the file management interface.
Figure 7. 11 Video Clips Export Interface
7. Export the video clips in playback. Please refer to step5 of Chapter 7.1.2 Backing up by Normal Video
Search for details.

HIKVISION DS-7608NI-E2/8P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	290 mm
Width	445 mm
Height	45 mm
Weight	1000 g
