HIKVISION DS-7608NI-E2/8P User Manual

Network Video Recorder User Manual
148
10.2 Behavior Search
Purpose:
The behavior analysis detects a series of suspicious behavior based on VCA detection, and certain linkage methods
will be enabled if the alarm is triggered.
Steps:
1. Enter the Behavior Search interface.
Menu>VCA Search> Behavior Search
2. Select the camera (s) for the behavior search.
3. Specify the start time and end time for searching the matched pictures.

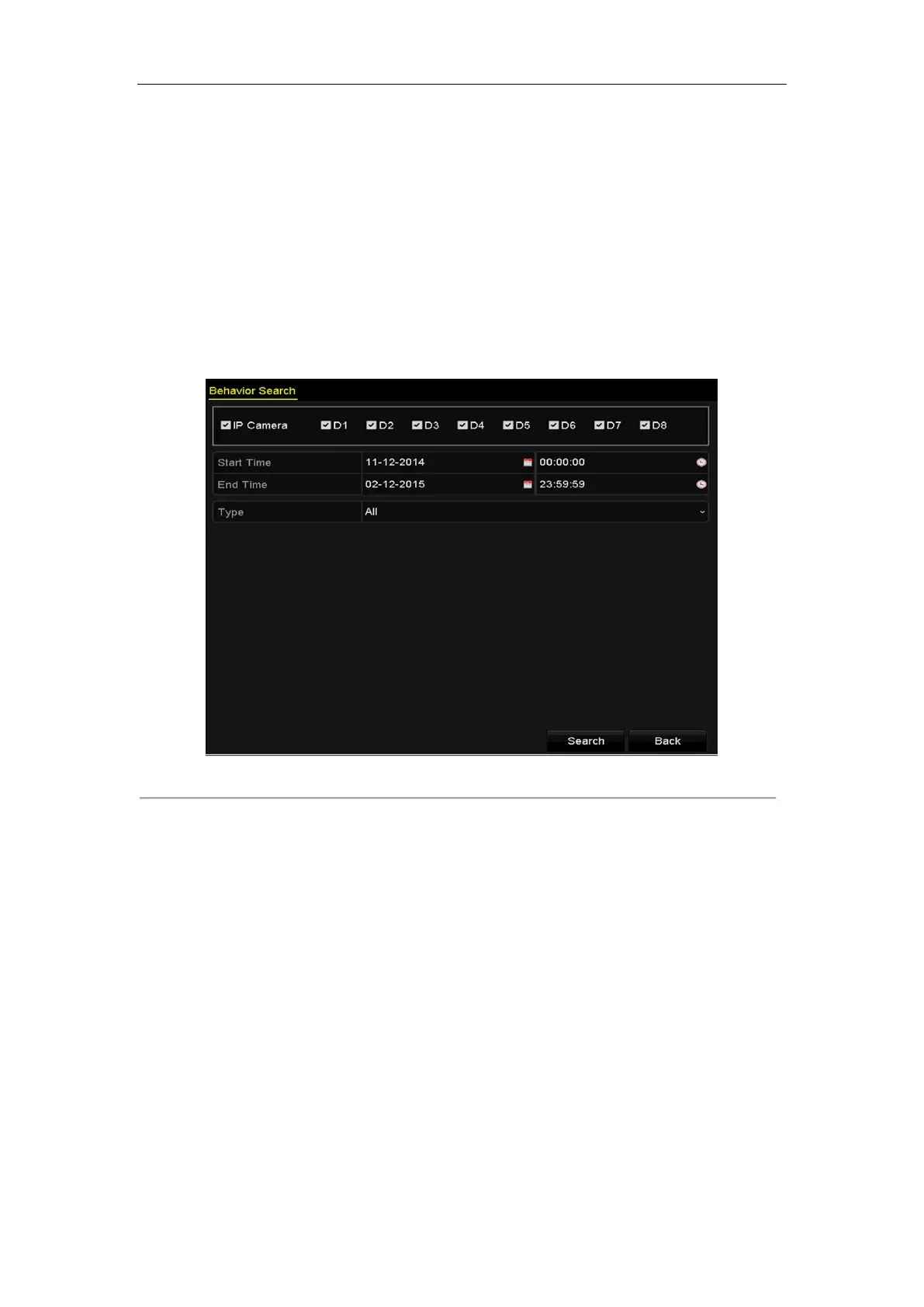

Figure 10. 4 Behavior Search Interface
4. Select the VCA detection type from the dropdown list, including the line crossing detection, intrusion
detection, unattended baggage detection, object removal detection, region entrance detection, region exiting
detection, parking detection, loitering detection, people gathering detection and fast moving detection.
5. Click Search to start searching. The search results of pictures are displayed in list or in chart.

HIKVISION DS-7608NI-E2/8P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	290 mm
Width	445 mm
Height	45 mm
Weight	1000 g
