HIKVISION DS-7608NI-E2/8P User Manual

Network Video Recorder User Manual
187
12.5 Checking HDD Status
Purpose:
You may check the status of the installed HDDs on NVR so as to take immediate check and maintenance in case
of HDD failure.
Checking HDD Status in HDD Information Interface
Steps:
1. Enter the HDD Information interface.
Menu > HDD>General

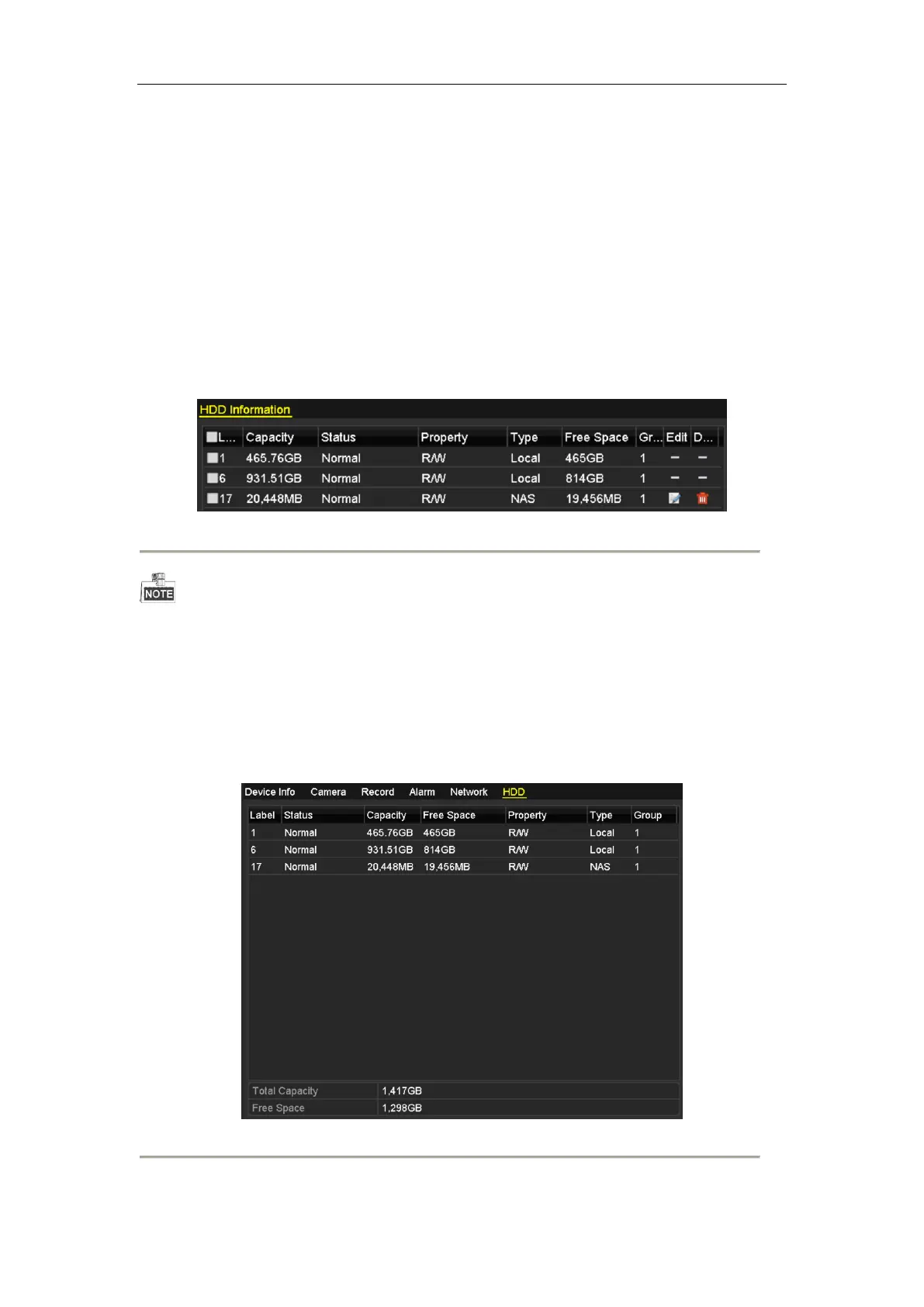

2. Check the status of each HDD which is displayed on the list, as shown in Figure 12. 18.
Figure 12. 18 View HDD Status (1)
If the status of HDD is Normal or Sleeping, it works normally. If the status is Uninitialized or Abnormal, please
initialize the HDD before use. And if the HDD initialization is failed, please replace it with a new one.
Checking HDD Status in HDD Information Interface
Steps:
1. Enter the System Information interface.
Menu >Maintenance > System Info
2. Click the HDD tab to view the status of each HDD displayed on the list, as shown in Figure 12. 19.
Figure 12. 19 View HDD Status (2)

HIKVISION DS-7608NI-E2/8P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	290 mm
Width	445 mm
Height	45 mm
Weight	1000 g
