HIKVISION DS-7608NI-E2/8P User Manual

Network Video Recorder User Manual
15

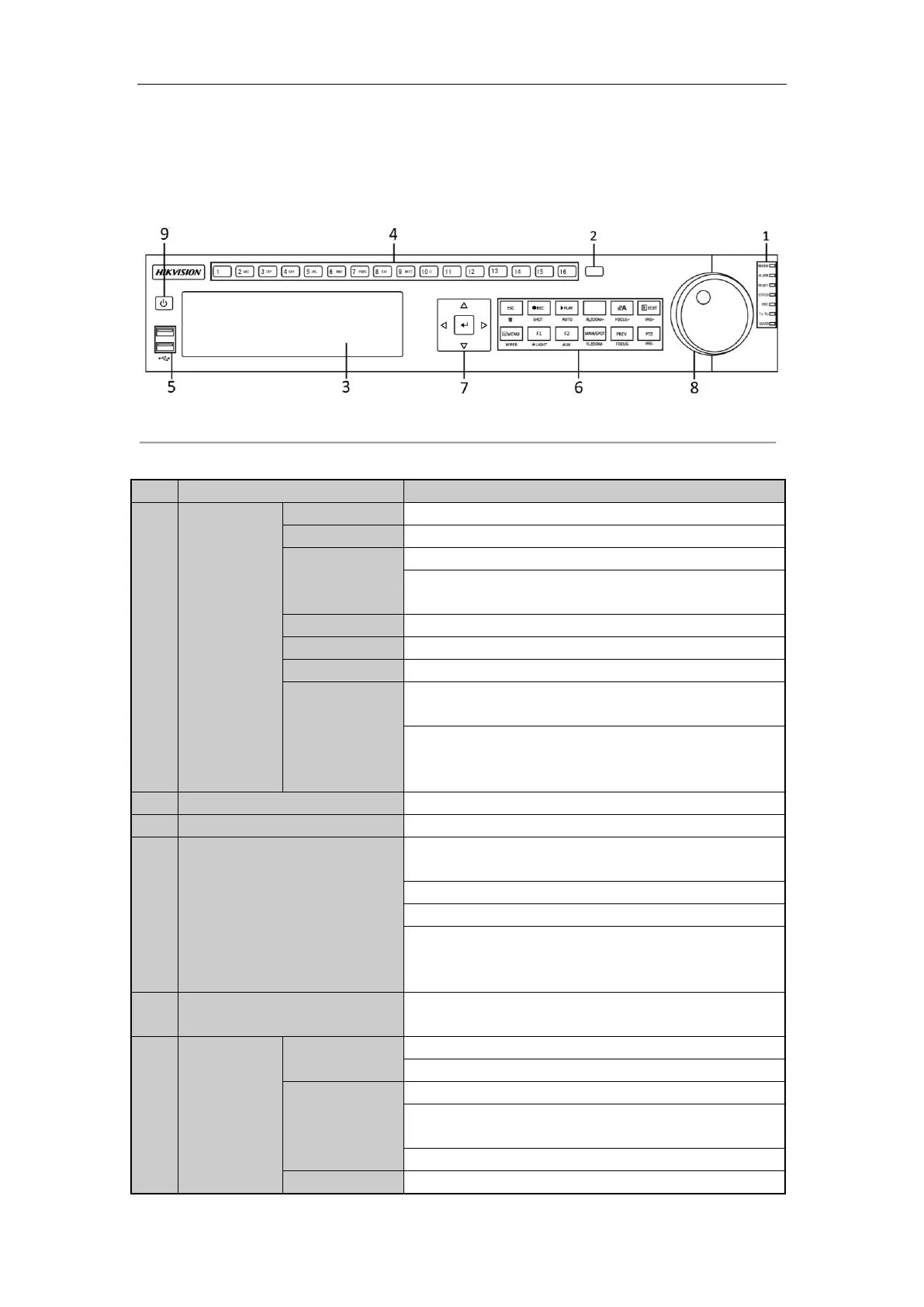

1.1 Front Panel
DS-8600NI-E8 Series
Figure 1. 1 DS-8600NI-E8 Series
Table 1. 1 Description of Control Panel Buttons
No.
Name
Function Description
1
Status
Indicators
ALARM
Turns red when a sensor alarm is detected.
READY
Turs blue when the device is functioning properly.
STATUS
Turns blue when device is controlled by an IR remote.
Turns red when controlled by a keyboard and purple when IR
remote and keyboard is used at the same time.
HDD
Flickers red when data is being read from or written to HDD.
MODEM
Reserved for future usage.
Tx/Rx
Flickers blue when network connection is functioning properly.
GUARD
Turns blue when the device is in armed status; at this time, an
alarm is enabled when an event is detected.
Turns off when the device is unarmed. The arm/disarm status
can be changed by pressing and holding on the ESC button for
more than 3 seconds in live view mode.
2
IR Receiver
Receiver for IR remote
3
DVD-R/W
Slot for DVD-R/W.
4
Alphanumeric Buttons
Switches to the corresponding channel in live view or PTZ
control mode.
Inputs numbers and characters in edit mode.
Switches between different channels in playback mode.
Turns blue when the corresponding channel is recording; turns
red when the channel is in network transmission status; turns
pink when the channel is recording and transmitting.
5
USB Interfaces
Universal Serial Bus (USB) ports for additional devices such as
USB mouse and USB Hard Disk Drive (HDD).
6
Composite
Keys
ESC
Returns to the previous menu.
Presses for arming/disarming the device in live view mode.
REC/SHOT
Enters the Manual Record settings menu.
Presses this button followed by a numeric button to call a PTZ
preset in PTZ control settings.
Turns audio on/off in the playback mode.
PLAY/AUTO
Enters the playback mode.

HIKVISION DS-7608NI-E2/8P Specifications

General

Display modes	Live view
Maximum frame rate	60 fps
Maximum resolution	1920 x 1080 pixels
Alarm input channels	4
Video input channels	8 channels
Alarm output channels	1
Resolution at capture speed	1920x1080@60fps
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
HDD interface	Serial ATA
Maximum storage capacity	12 TB
Number of HDDs supported	2
Total installed storage capacity	0 GB

Weight and Dimensions

Depth	290 mm
Width	445 mm
Height	45 mm
Weight	1000 g
