QoS/Priority
78
5.3
802.1D/p mapping
RM Web L2B
Release
5.3
05/2012

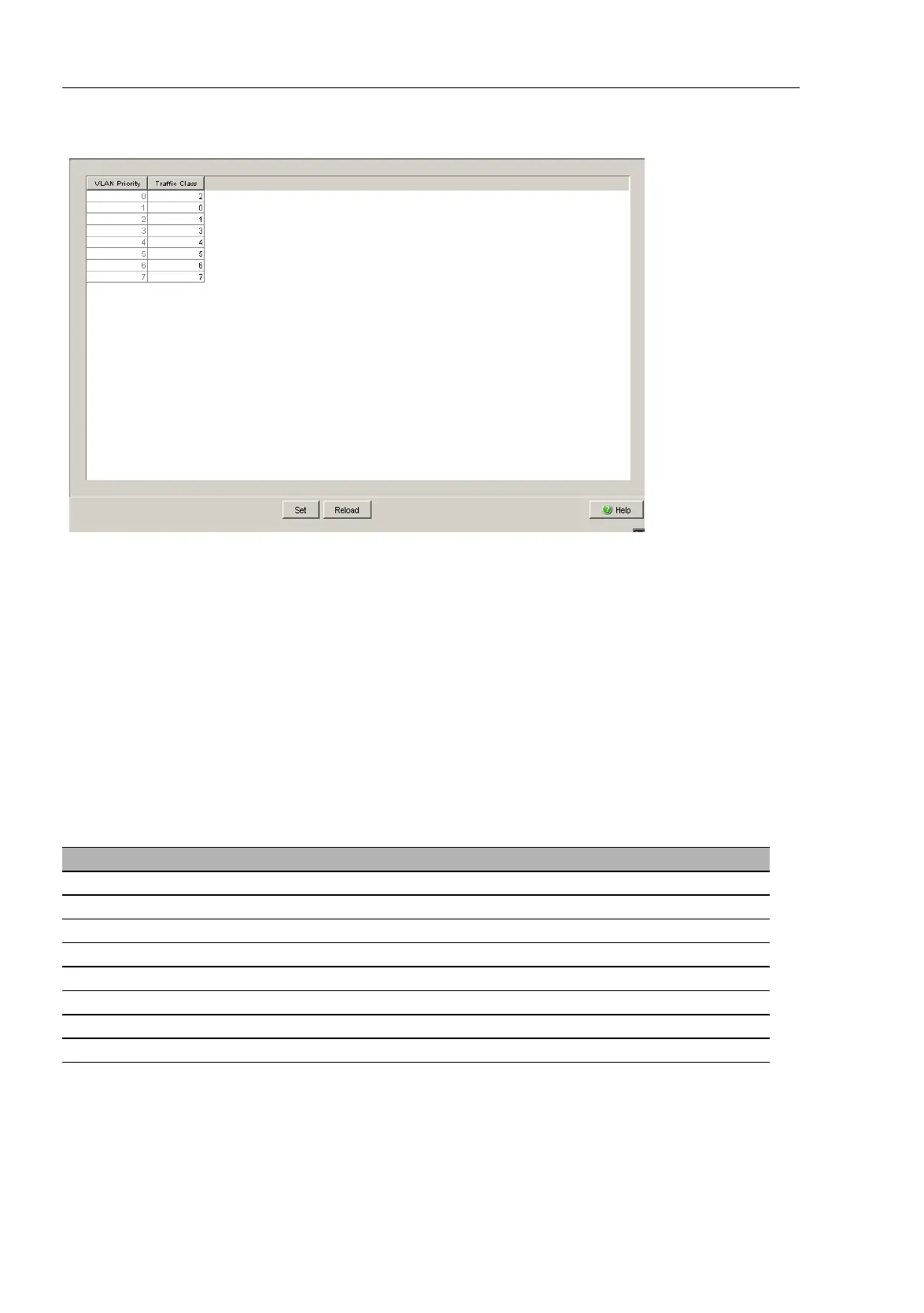

Figure 25: 802.1D/p Mapping dialog
Enter the desired value from 0 to 3 in the Traffic Class field for every
VLAN priority.
Port priority Traffic class (default setting) IEEE 802.1D traffic type
0 1 Best effort (default)
1 0 Background
2 0 Standard
3 1 Excellent effort (business critical)
4 2 Controlled load (streaming multimedia)
5 2 Video, < 100 ms of latency and jitter
6 3 Voice, < 10 ms of latency and jitter
7 3 Network control reserved traffic
Table 18: Assigning the VLAN priority to the 4 traffic classes
