NOTE
Actual fan speed during the dry operation will be “LOW” regardless of the fan speed setting.
The figure above shows an example of standard unit. The fan speed may not be indicated for certain indoor unit model.
(1) (1)

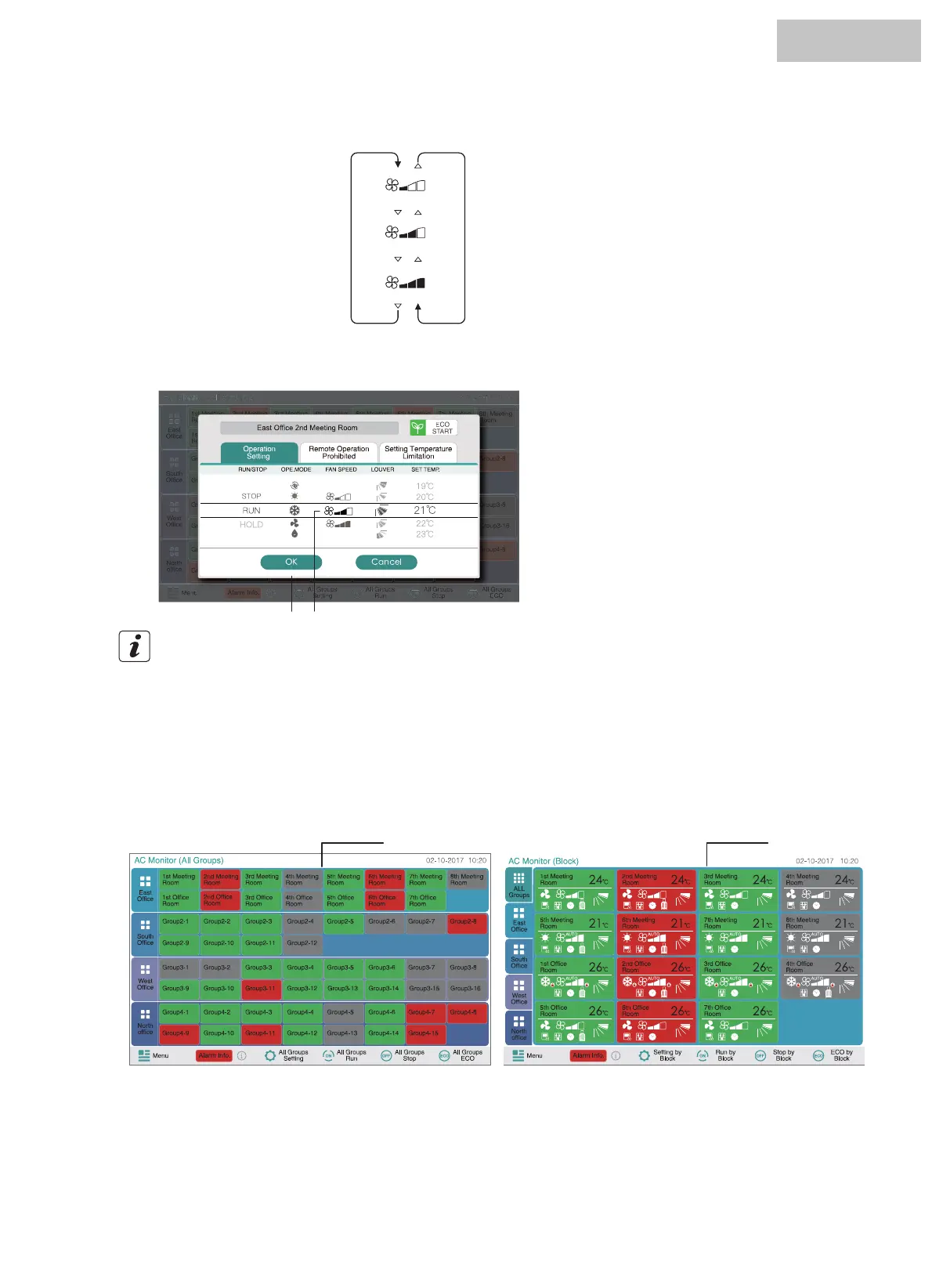

6.8 SWING LOUVER DIRECTION
1. Select the screen of “AC Monitor (All Groups)” or “AC Monitor (Block)”. Select the group to set by touching the group button.
2. Slide the “LOUVER”, the swing louver direction will be changed alternately as follows.
AC Monitor (All Groups) AC Monitor (Block)
(2)(3)
2. Slide the “FAN SPEED”, the fan speed setting will be changed alternately as follows.
3. Touch “OK” to confirm and return.
4. Touch “Cancel” to cancel the command and return.
HYJM-S01H
To Next Page
