Hiwin S Series User Manual

A. When using the screw holes on underside of gripper body
B. When using front through holes of gripper body

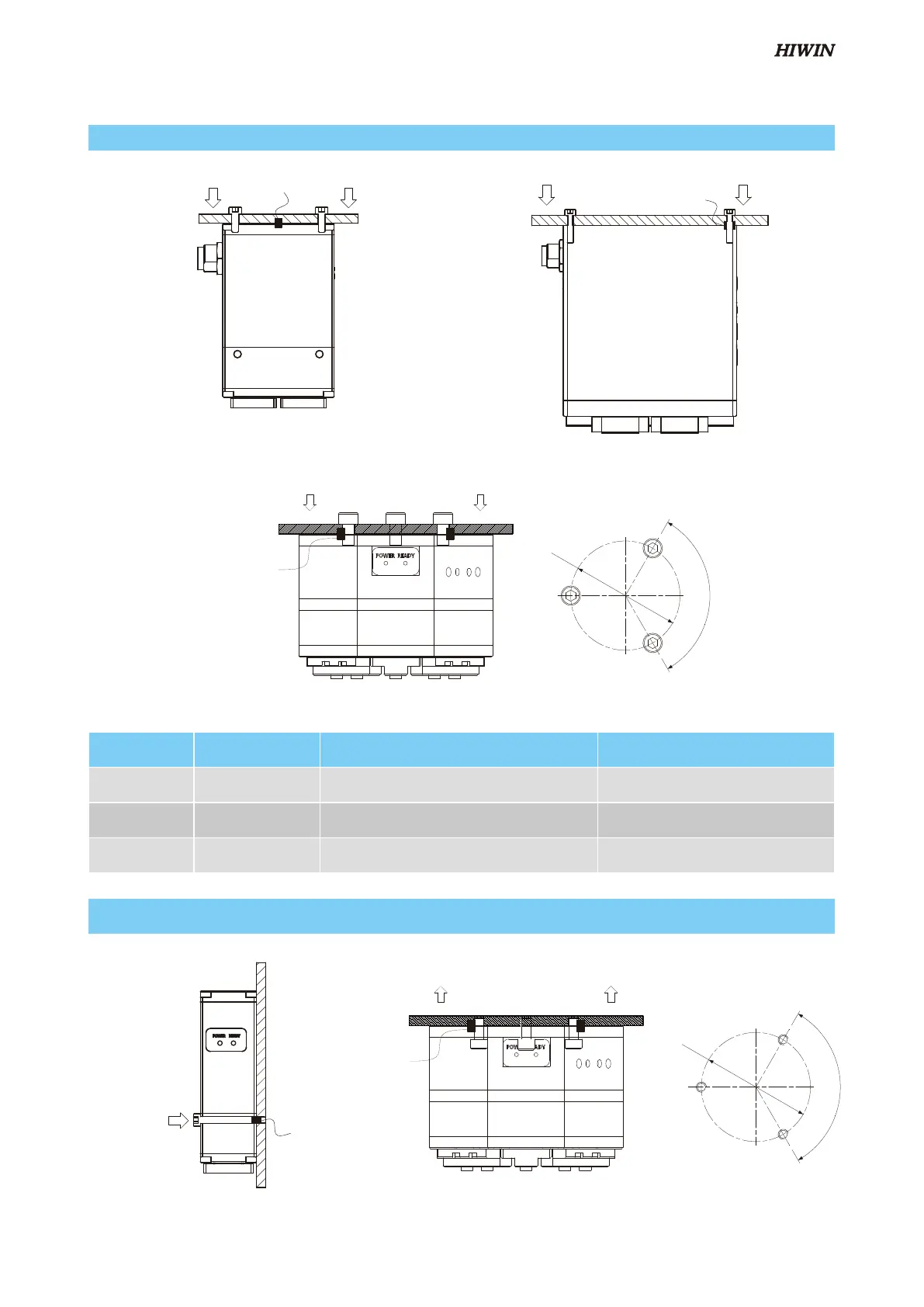

2.6 Electric gripper mounting methods
Type Screw M Recommended locking torque (N*m) Maximum locking depth SL (mm)
SEG-04 M3x0.5P 0.6~0.8 3
SEG-24 M3x0.5P 0.6~0.8 8
STG-16 M6x1P 4.6~5.2 6
固定方向
固定方向
固定方向
固定方向 固定方向
固定方向
定位銷
定位銷
定位銷
同心軸環
SEG-04
SEG-04
SEG-04
SEG-24
固定方向
固定方向
固定方向
固定方向 固定方向
固定方向
定位銷
定位銷
定位銷
同心軸環
SEG-04
SEG-04
SEG-04
SEG-24
Mounting direction
Mounting direction
Mounting direction
Mounting direction
Mounting direction
Mounting direction
Mounting direction
Mounting direction
Mounting direction Mounting direction
Locating pins
Concentric collar
Mounting direction
Locating pin
STG-16
120°
Ø56
Locating pins
Locating pins
STG-16
120°
Ø56
C11UE01-1907
9
