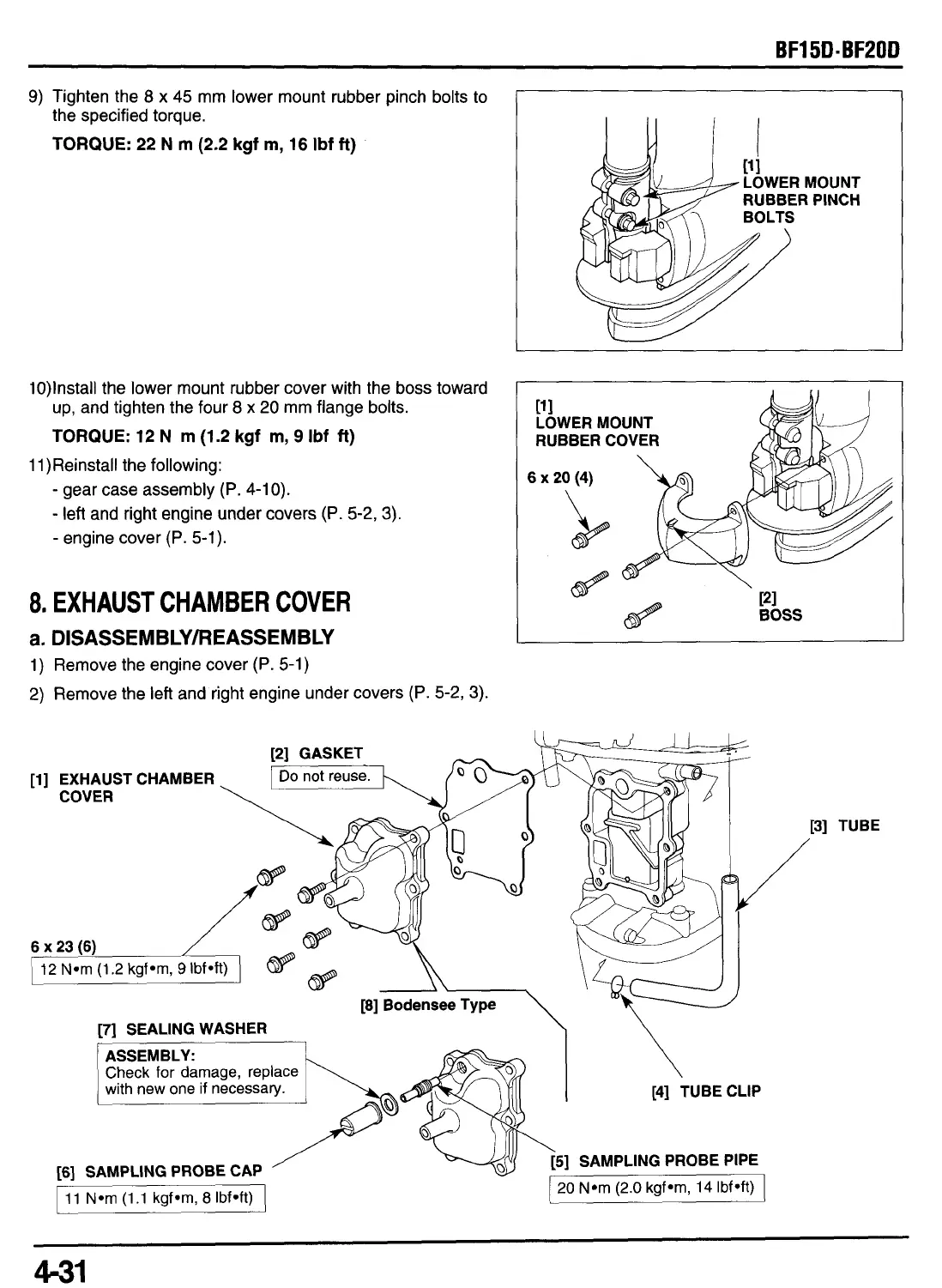

9) Tighten the 8 x 45 mm lower mount rubber pinch bolts to
the specified torque.
TORQUE: 22 N m (2.2 kgf m, 16 Ibf ft)
10)lnstall the lower mount rubber cover with the boss toward
up, and tighten the four
8 x 20 mm flange bolts.
TORQUE: 12 N m (1.2 kgf m, 9 Ibf ft)
- gear case assembly (P. 4-10).
- left and right engine under covers (P. 5-2,3).
- engine cover (P. 5-1).
11)Reinstall the following:
8. EXHAUST CHAMBER COVER
a. DlSASSEMBLYlREASSEMBLY
1) Remove the engine cover (P. 5-1)
2) Remove the left and right engine under covers (P. 5-2, 3).
T
H
[l] EXHAUST CHAMBER
COVER
r31
[7] SEALING WASHER
Check for damage, replace
[4] TUBECLIP
51 SAMPLING PROBE PIPE
20 N*m (2.0 kgfvn, 14 Ibfoft)
[S] SAMPLING PROBE CAP
1 11 N*rn (1.1 kgfom, 8 Ibfoft) I
TUBE
4-31

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
