Honda BF15D User Manual

BF15D-BF20D

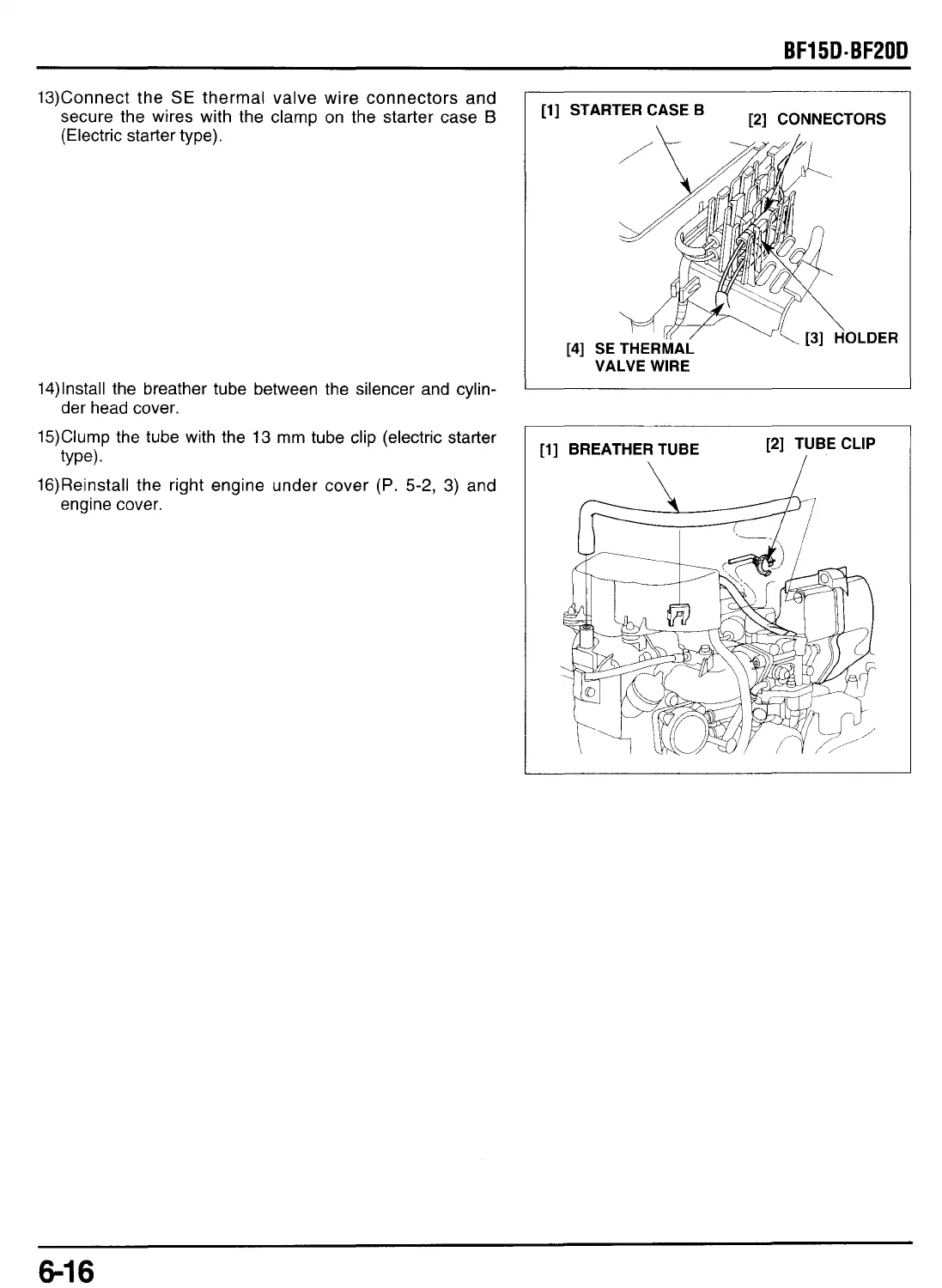

13)Connect the SE thermal valve wire connectors and
secure the wires with the clamp on the starter case
B
(Electric starter type).
14)lnstall the breather tube between the silencer and cylin-
15)Clump the tube with the 13 mm tube clip (electric starter
16)Reinstall the right engine under cover
(P. 5-2, 3) and
der head cover.
type).
engine cover.
I ['I STARTERcASEB [2] CONNECTORS
OLDER
VALVE WIRE
I
1 [l] BREATHERTUBE
[2] TUBE CLIP
\
6-16

Honda BF15D Specifications

General

Displacement	350 cc (21.4 cubic inches)
HP Rating	15 HP
Fuel Delivery	1 Carburetor
Ignition System	Digital CDI
Cooling System	Water Cooled
Gear Ratio	2.08:1
Lubrication	Wet Sump
Gear Shift	F-N-R
Engine Type	4-stroke
Full Throttle RPM Range	5000 - 6000 rpm
Starting System	Manual
Exhaust	Through Propeller
Fuel Tank Capacity	External tank
Oil Capacity	1.1 L
Fuel	Unleaded Gasoline
Shaft Length	15 inches
